| Opcjonalne certyfikaty dostępne dla ToughArmor MB602SPO-B | |
| TAA | Zgodność z Trade Agreements Act |
| UL | Certyfikacja standardów bezpieczeństwa |
| UL94 | Palność materiałów z tworzyw sztucznych |
| FCC | Zgodność z przepisami Federal Communications Commission |
| Szeroki zakres temperatur | MIL-STD-810H - Method 501.7 & 502.7 |
| • |

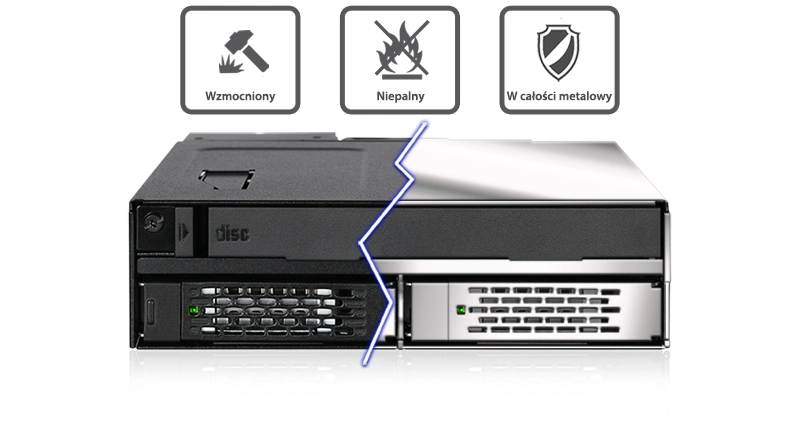

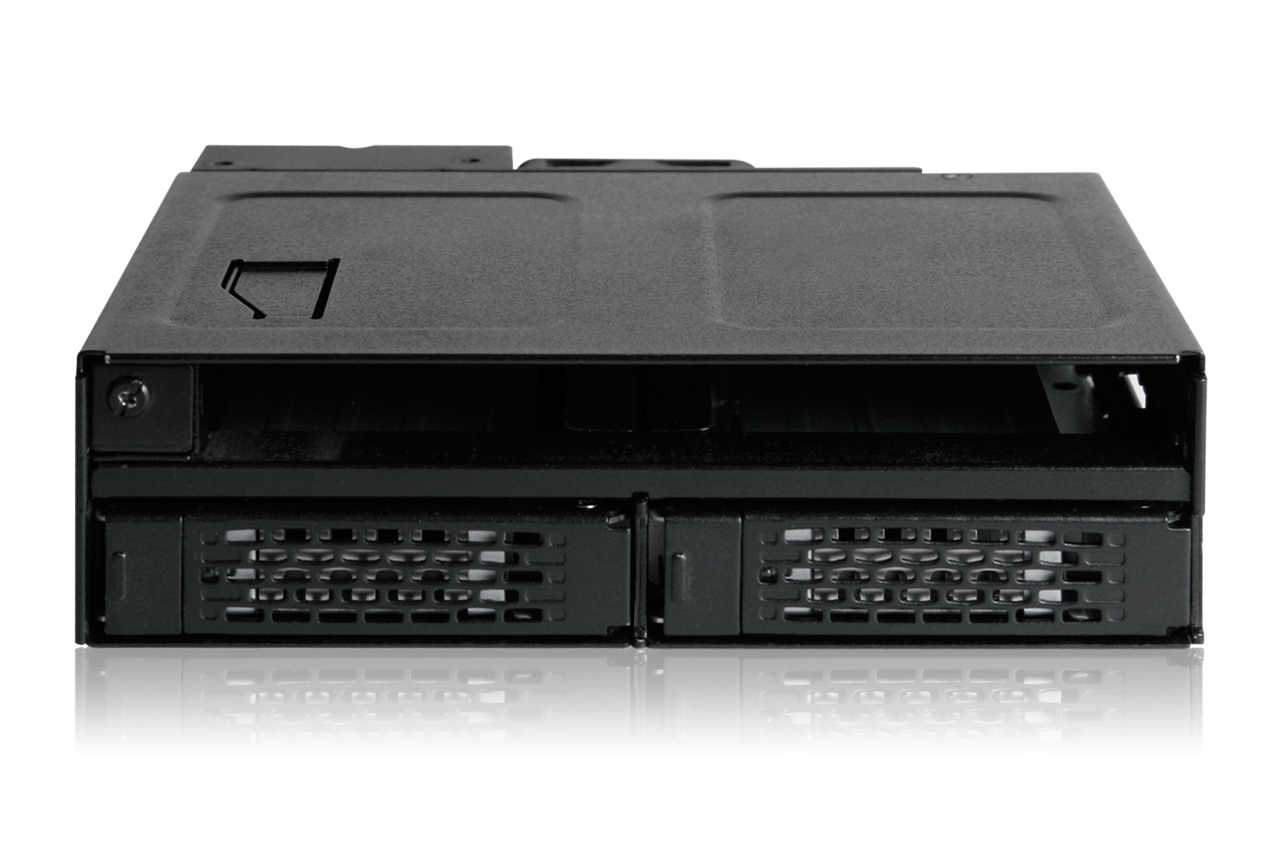

Wytrzymała konstrukcja stalowa przeznaczona do zastosowań przemysłowych i komercyjnych, takich jak wojsko i medycyna, serwery, centra danych, stacje robocze i przenośne systemy komputerowe.
|
| • |
Idealny do zastosowań, które muszą sprostać wymaganiom w zakresie palności.
|
| • |

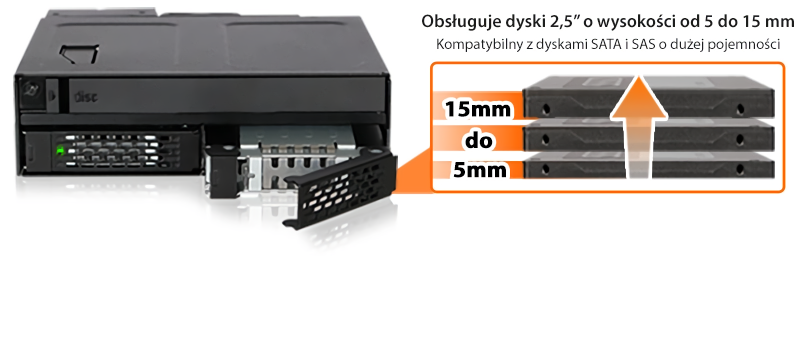

Pasuje do 2x dysków SSD lub dysków twardych o wysokości od 5 mm do 15 mm.
|
| • |
Obsługuje pojedyncze kanały SATA III i SAS.
|
| • |

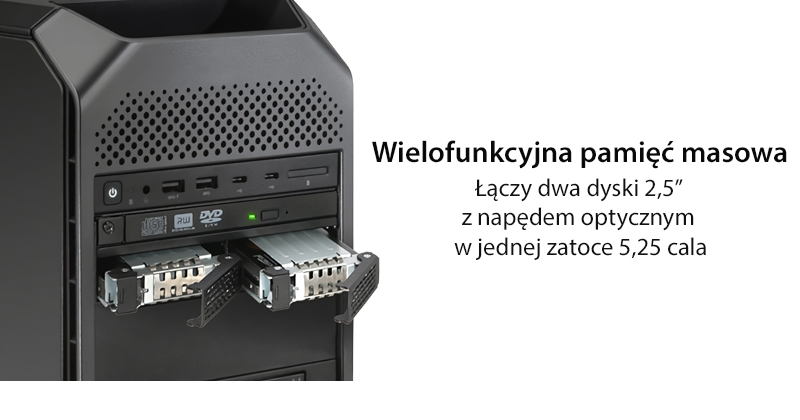

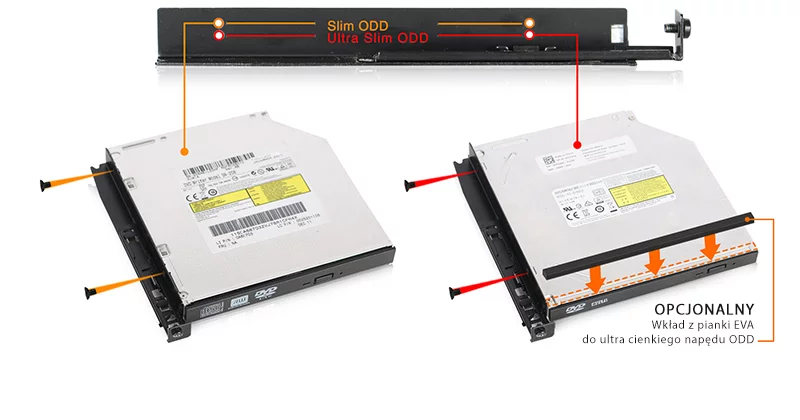

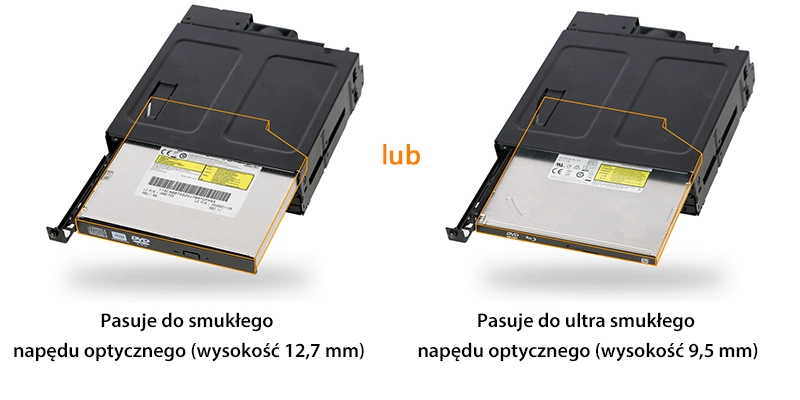

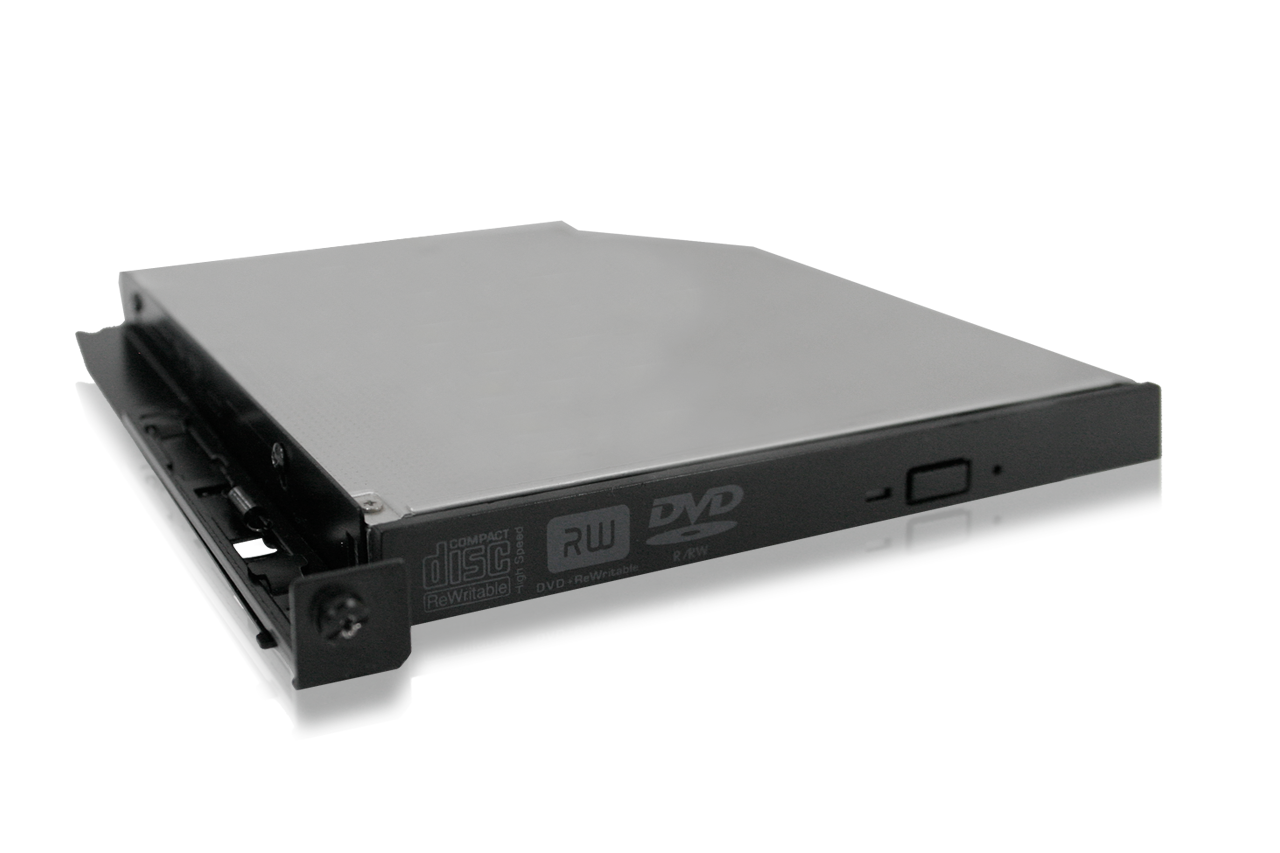

Obsługuje płaski (12,7 mm) lub ultracienki (9,5 mm) dysk optyczny (napęd ODD).
|
| • |

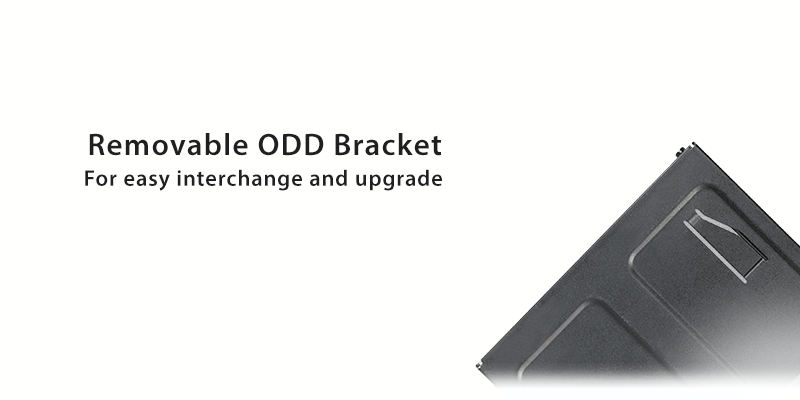

Sprężynowy uchwyt ODD do szybkiego montażu i demontażu.
|
| • |

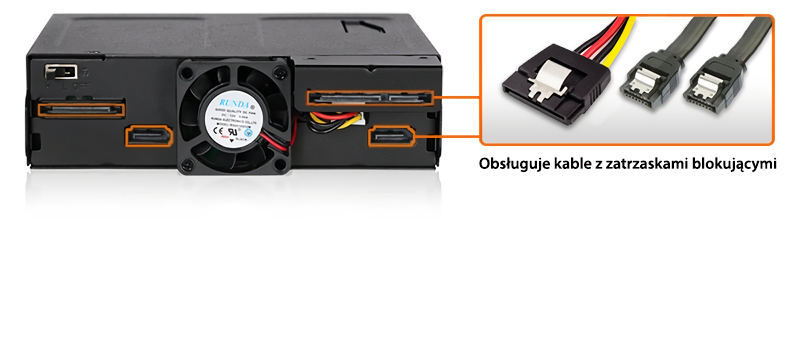

Podwójne złącza zasilania SATA oddzielają napęd ODD od zasilania dysku twardego/SSD, zapewniając stabilne zasilanie.
|
| • |

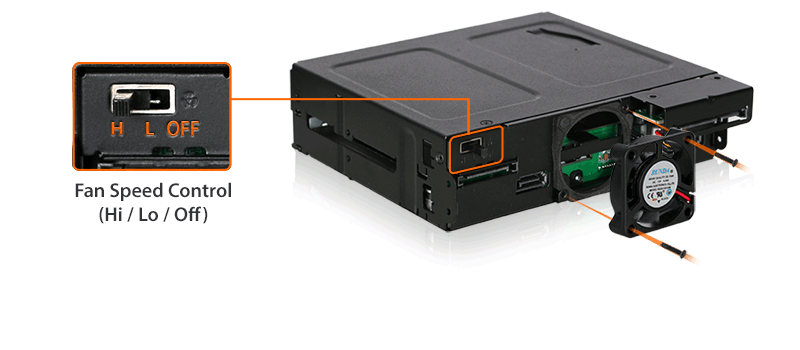

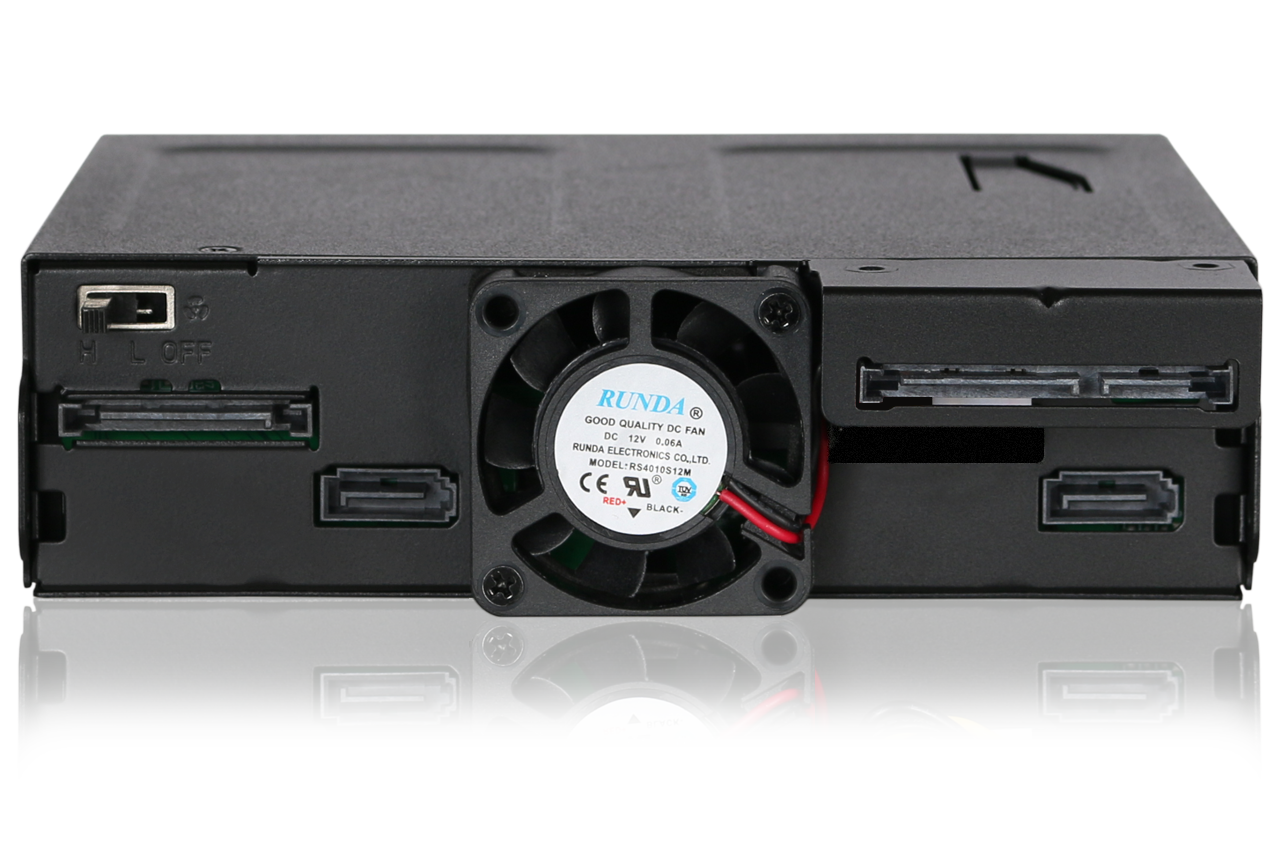

Wentylator chłodzący 40 mm z trzema trybami pracy : szybki , wolny oraz wyłączony, utrzymuje właściwą temperaturę napędu.
|
| • |
Otwory wentylacyjne umieszczone na tacach i w całej obudowie zapewniają doskonałe chłodzenie pasywne.
|
| • |
Active Power Technology (APT) - indywidualne diody LED , wentylator chłodzący tylko wtedy, gdy w zatoce zainstalowany jest napęd.
|
| • |

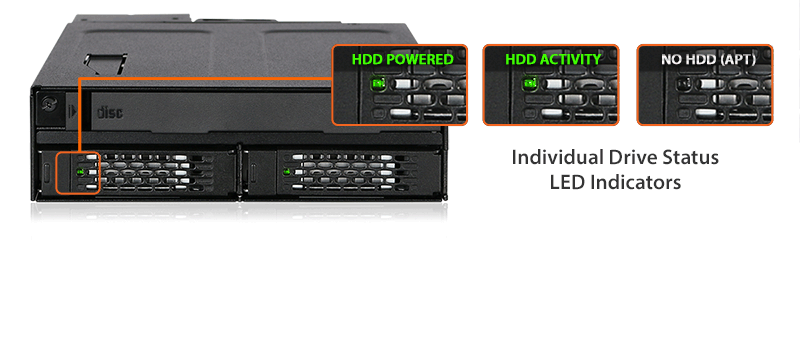

Indywidualna dioda LED informująca o statusie dysku dla każdej kieszeni.
|
| • |

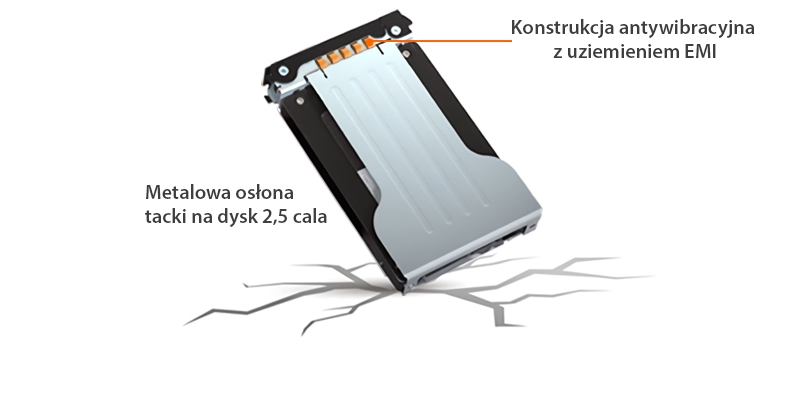

Technologia antywibracyjna (AVT) redukuje drgania pochodzące z mechanicznych dysków twardych.
|
| Model Number： | MB602SPO-B |
| Color： | Black |
| Support Drive Size： | 2 x 2.5" SSD / HDD & 1 x ultra slim or slim ODD |
| Compatible Drive Type： | SATA / single channel SAS (SAS host required) |
| Number of Drives： | 2 |
| Max Drive Height： | 2 x 2.5" up to 15mm 1 x ultra slim ODD (9.5mm) / slim ODD (12.7mm) |
| Drive Bay： | 1 x external 5.25" drive bay |
| Host Interface： | 3 x SATA 7pin |
| Power Input： | 2 x SATA 15pin power connector |
| Transfer Rate： | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
| Support HDD Capacity： | No limitation |
| Drive Cooling： | 1 x 40mm fan |
| Structure / Material： | Metal |
| Support Hot-Swap： | Yes |
| Product Dimension (W x H x D)： | 146.0 x 41.3 x 154.2mm |
| Product Net Weight： | 705g |
| Package GrossWeight： | 796.4g |
| Drive Activity LED Indication： | Drive power: solid green LED; HDD access: flashing green LED |
| Package Contents： | Device, user manual, screws, EVA foam spacer |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 5 years limited warranty |

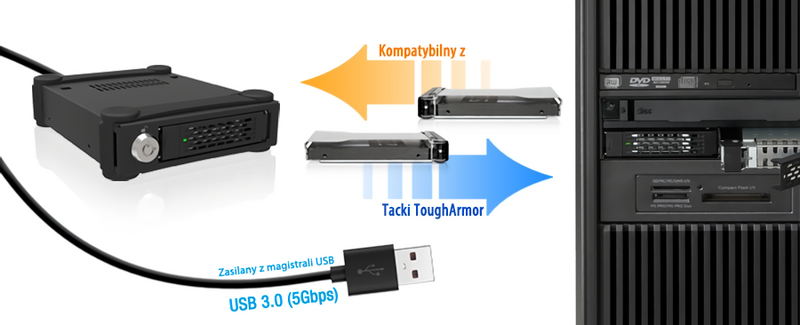

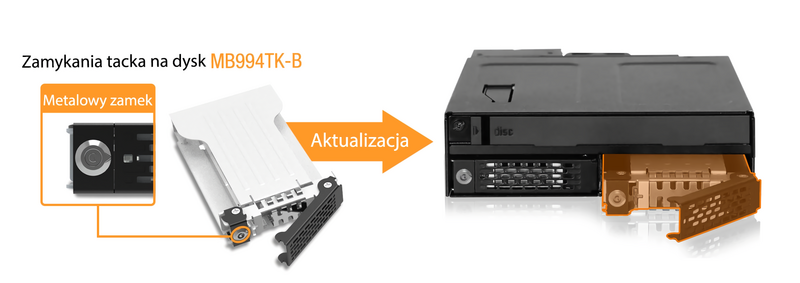

Compatible Drive Tray (Caddy):

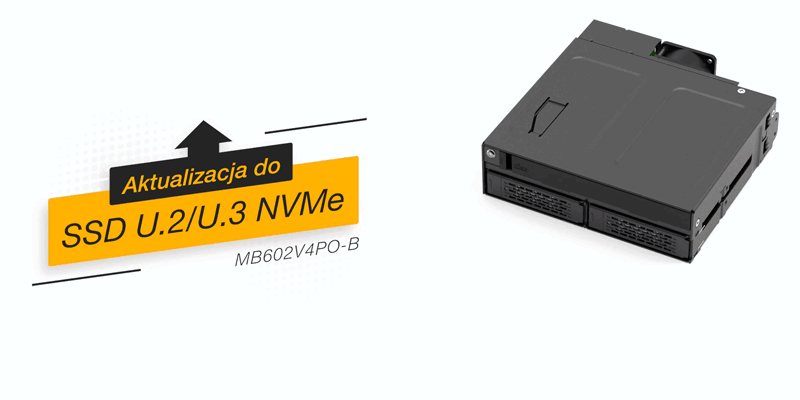

Related Products:
Related Products Series:
Quick Link:
Q: Can I replace the cooling fan attached to the device? Will doing that void the warranty?
A: The cooling fan we used has been thoroughly tested with the drive enclosure to ensure it functions properly and supports the fan speed control (for select models). Therefore, we suggest our customers keep the original fan for the best result. However, we understand the stock fan may not be suitable for all the applications, so we elected to honor the warranty when 3rd party fan is using. The warranty may void if the 3rd party fan causes electrical damage to the device, though.
Q: Which specification should I check before buying the 3rd party cooling fan?
A:The following information is the fan specification requirement and compatible fan models for MB602SPO-B
| Fan Dimension (LxWxH) | 40 x 40 x 10mm | 40 x 40 x 20mm |
| Connector Type | 3 Pin Wafer | |
| Rated Voltage (VDC) | 12V DC | |
| Rated Current (A) | < 0.12A (127mA) | |
| Screw Specification | Phillips Flat Head - M3 x 15mm - Steel (Came with stock fan) |
Phillips Flat Head - M3 x 25mm – Steel (Not Included) |
Compatible fan models
(without test, use it at your own risk)
Q: Does MB602SPO-B support the new SATA 3.3 / SAS 3.0 Power Disable feature (PWDIS)?
A: The MB602SPO-B does not support the SATA 3.3 / SAS 3.0 PWDIS feature. If you install the SATA/SAS HDD/SSD with PWDIS in MB602SPO-B , the drive will not spin, and the system won't detect the drive. See the list below for known SATA/SAS HDD/SSD with the PWDIS feature.
While we recommend to avoid using the SATA/SAS HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:
Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.
 |
 |
|
| Molex to SATA Adapter | Molex to SATA Cable |
Method 2 – Placing Kapton tape on Pin 1-3 of the SATA/SAS power connector to isolate the 3.3V power, as shown below.
 |
 |
Please contact tech@icydock.com if the problem persists.
Q: I feel that the drive tray's upper and lower metal spring is stuck when inserting the drive tray. What should I do?
A: Remove the drive tray from the enclosure and reinsert the tray without putting excessive pressure on the metal mesh sheet in front of the tray. Excessive force on the front metal mesh sheet may bend the top and bottom metal spring, causing difficulties when inserting the drive tray. Therefore, please do not forcingly insert the drive tray when this happens as it may cause damage to the metal spring.
 |
| Please DO NOT put excessive pressure on the metal mesh sheet as shown |
