| Opcjonalne certyfikaty dostępne dla ToughArmor MB607SP-B | |
| TAA | Zgodność z Trade Agreements Act |
| UL | Certyfikacja standardów bezpieczeństwa |
| UL94 | Palność materiałów z tworzyw sztucznych |
| FCC | Zgodność z przepisami Federal Communications Commission |
| Szeroki zakres temperatur | MIL-STD-810H - Method 501.7 & 502.7 |
|
*
|

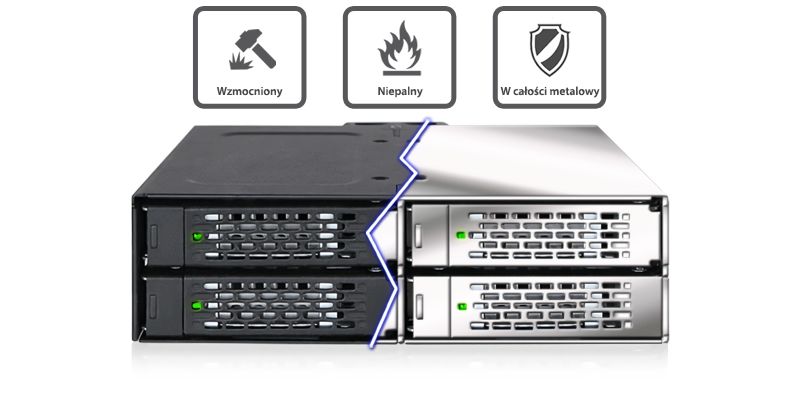

Pełna metalowa konstrukcja przeznaczona dla systemów medycznych i wojskowych, serwerów mediów, systemów HPC (high performance computer) i IPC
|
|
*
|
Idealny do trudnych zastosowań, spełnia wymagania dotyczące palności
|
|
*
|

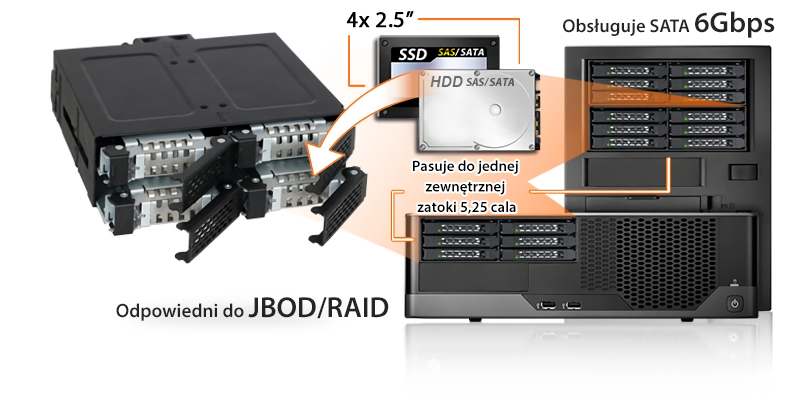

Mieści 4 2,5-calowe dyski HDD lub SSD SAS/SATA o wysokości od 7 do 15 mm w pojedynczej, zewnętrznej zatoce 5,25"
|
|
*
|
Wymaga tylko pojedynczego 15-pinowego złącza zasilania do zasilania wszystkich 4 pól
|
|
*
|
Technologia antywibracyjna (AVT) - tworzy bezpieczne środowisko dla dysków twardych lub dysków SSD
|
|
*
|

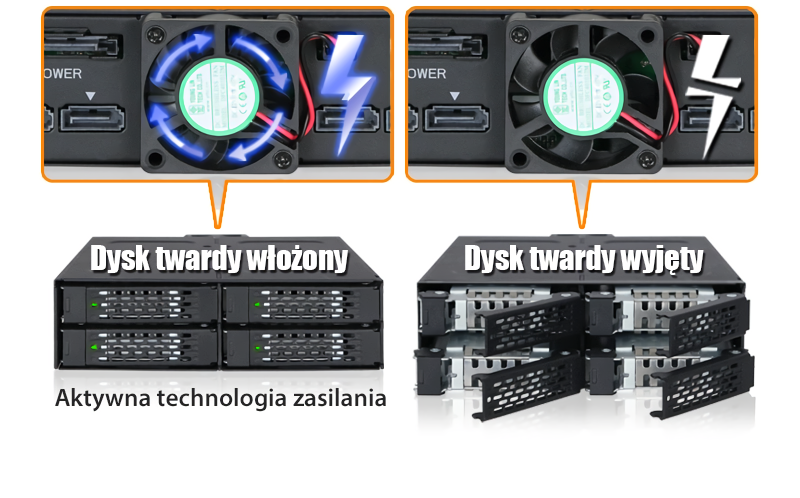

Aktywna technologia zasilania (APT) - indywidualny wentylator LED i wentylator włączają się tylko wtedy, gdy wewnątrz znajduje się napęd
|
|
*
|

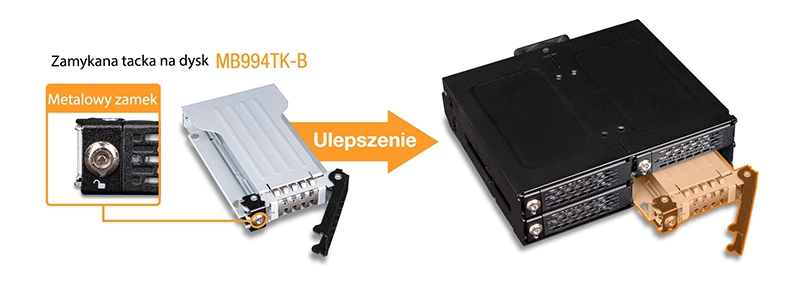

System blokady Eagle Hook utrzymuje dyski zabezpieczone w obudowie
|
|
*
|

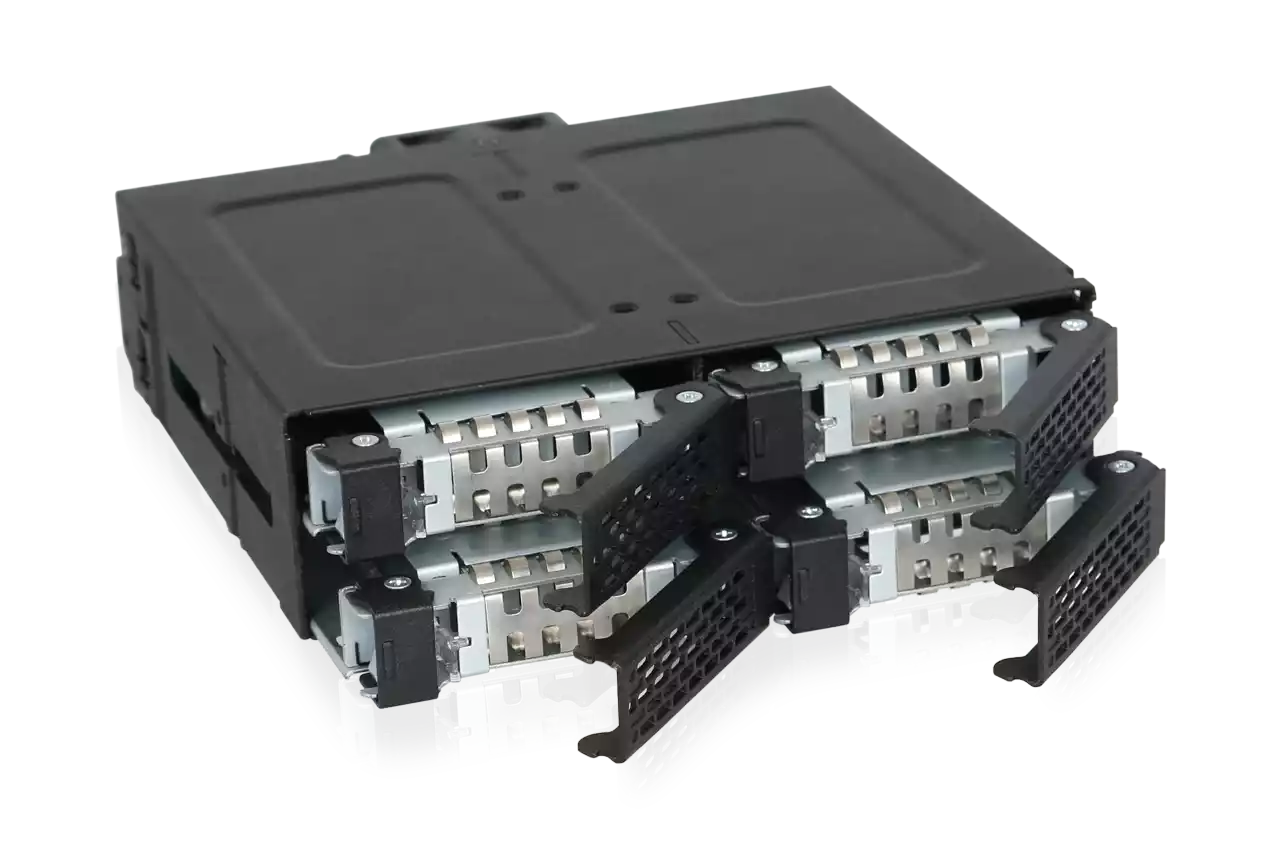

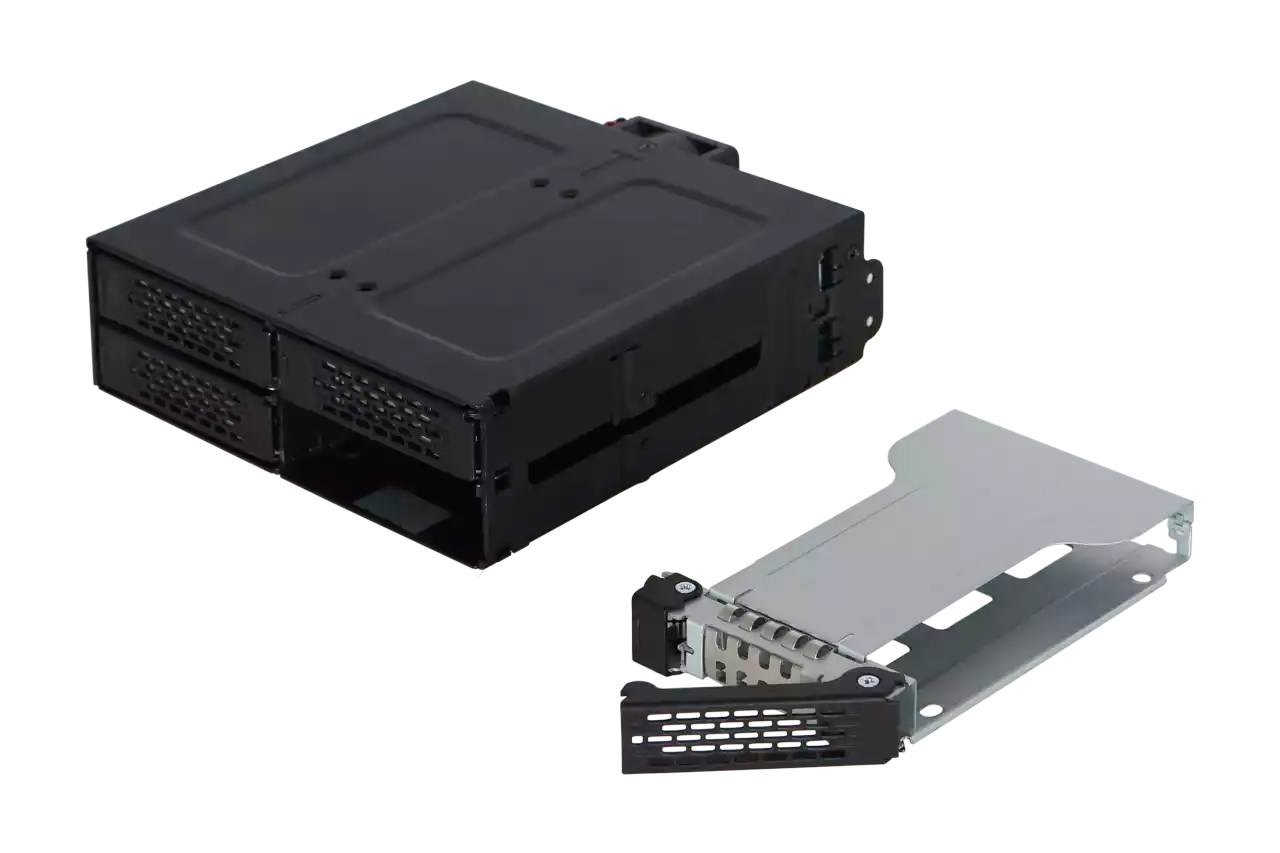

Wyjmowany system tac EZ Slide Micro dla łatwej konserwacji
|
|
*
|

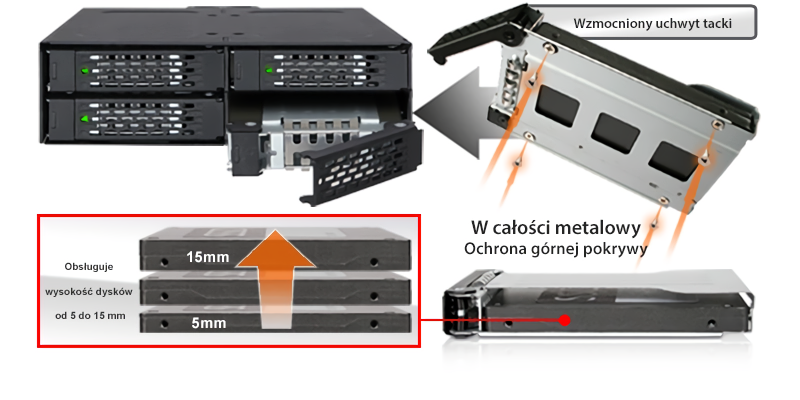

Konstrukcja z całkowicie metalową tacą zapewnia dodatkową ochronę napędu
|
|
*
|
Obsługuje SATA 6 Gb/s i wymianę na gorąco
|
|
*
|
Wytrzymała, stalowa konstrukcja w całym urządzeniu
|
|
*
|

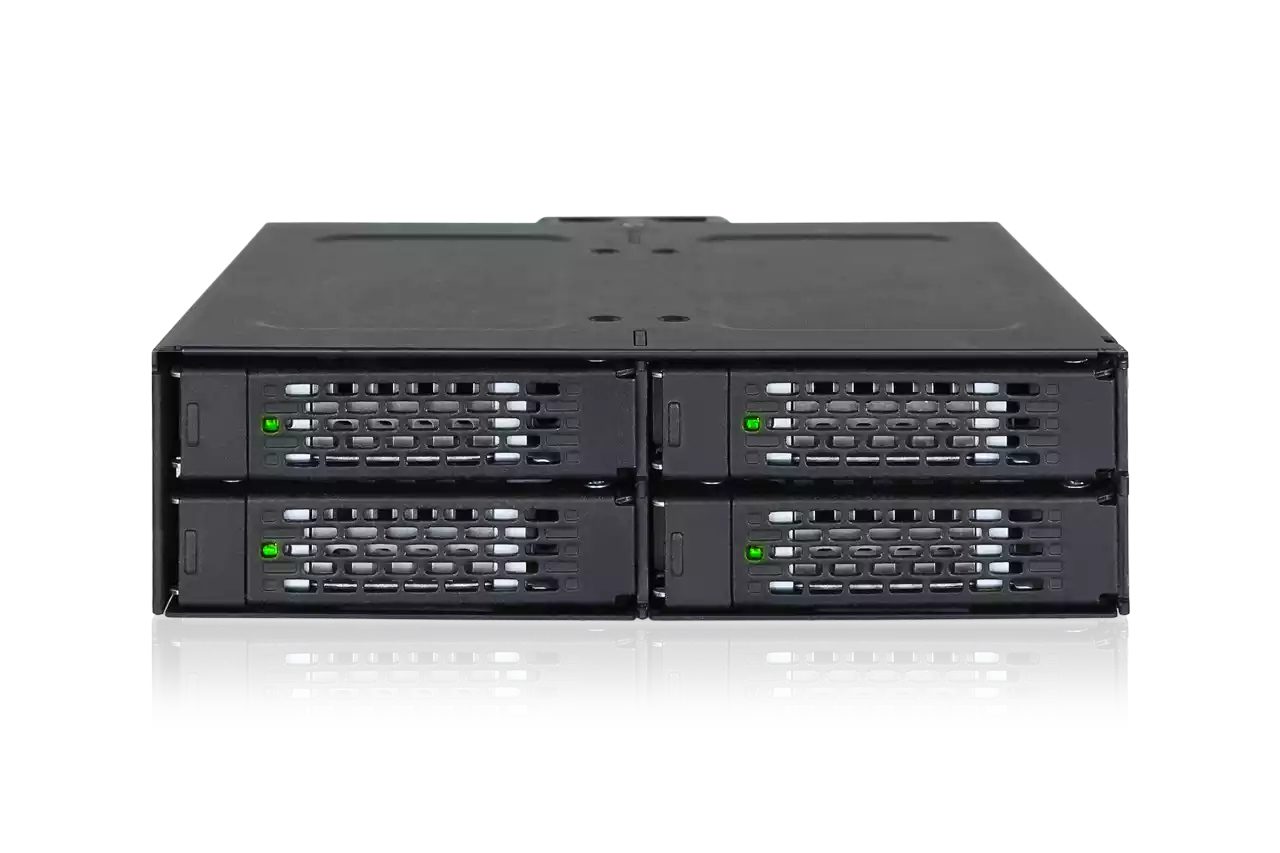

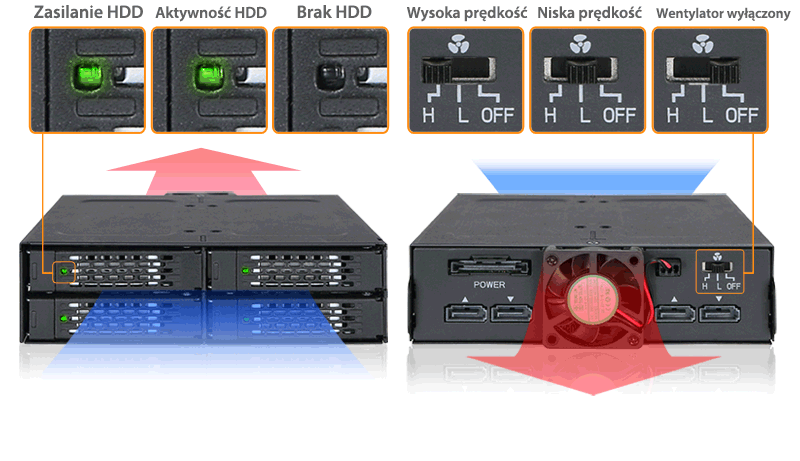

Dioda LED z przodu dla każdego napędu
|
|
*
|

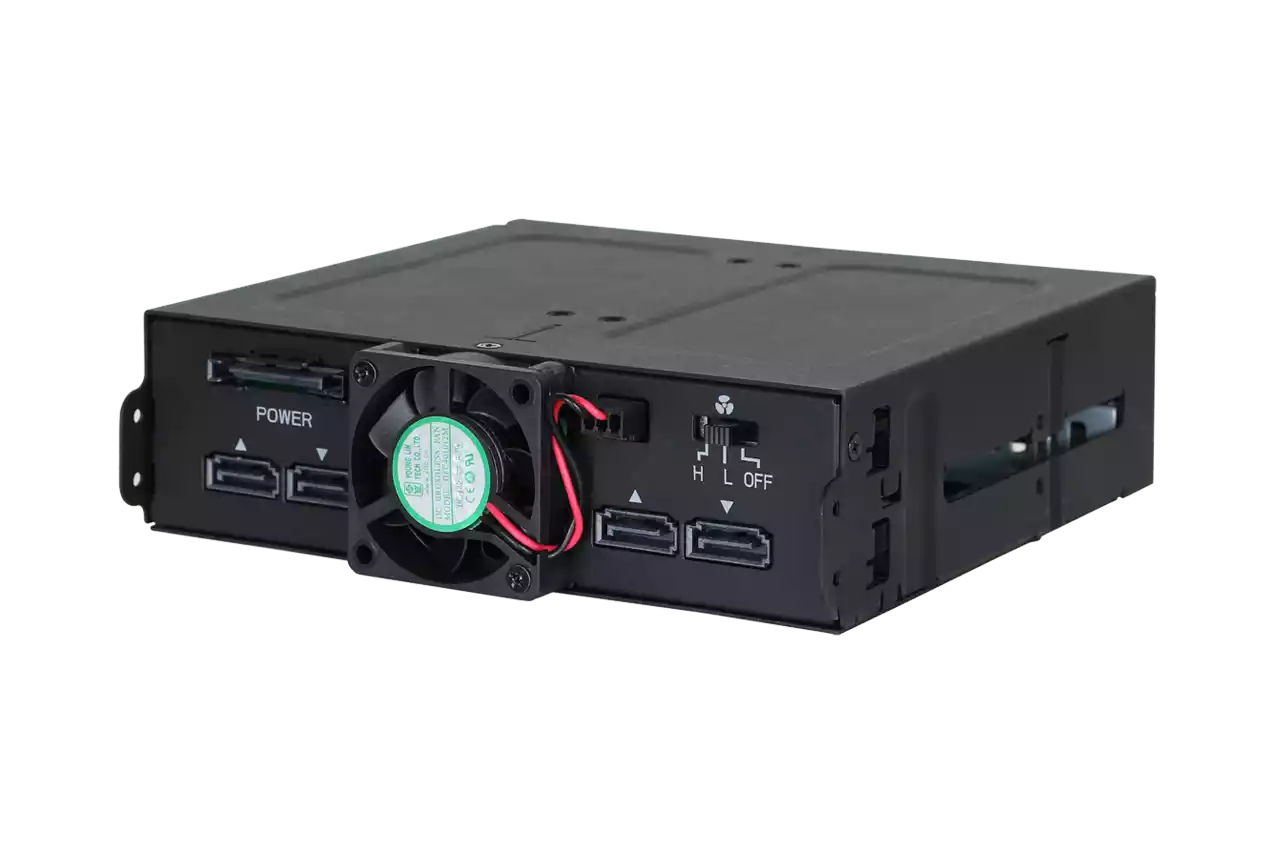

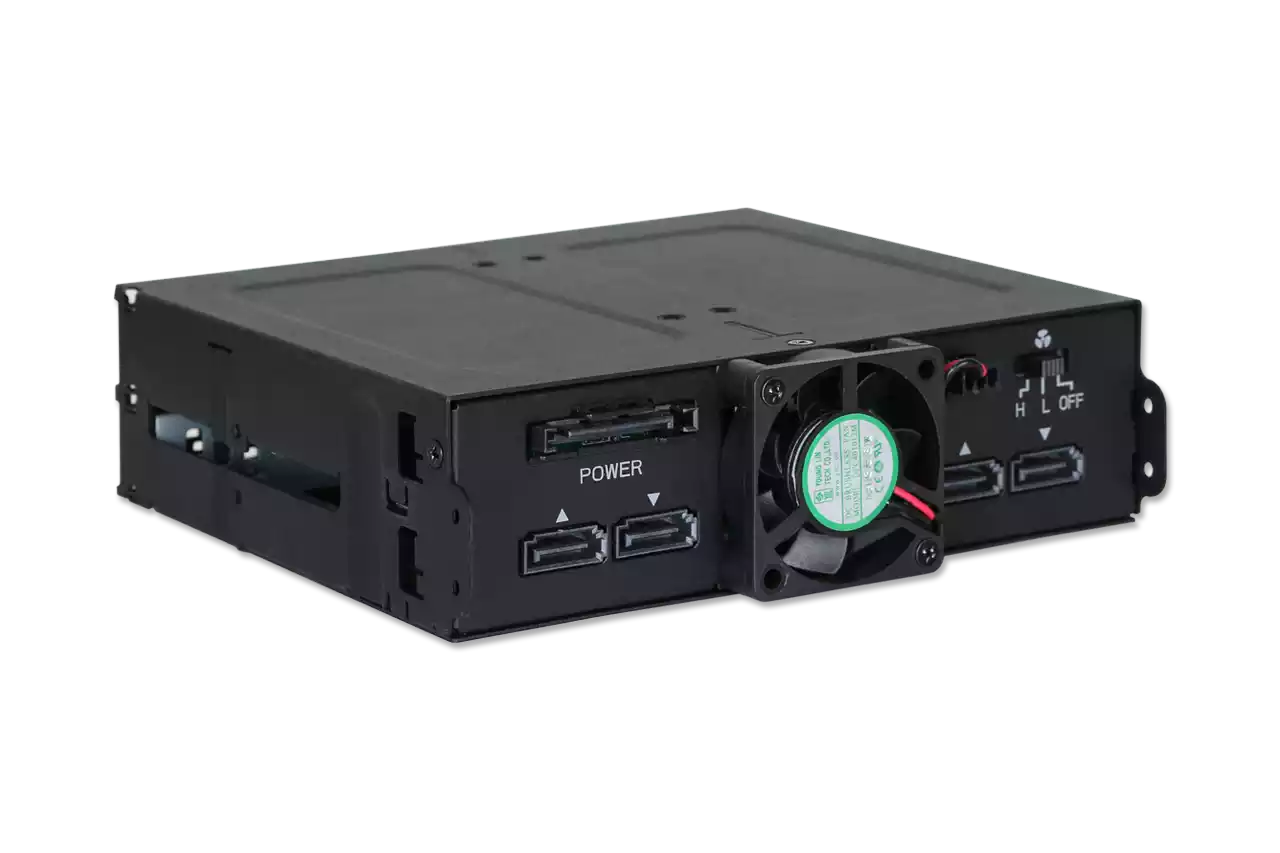

Wentylator 40mm z kontrolerem ustawień prędkości obrotów
|
|
*
|
Idealny dla obudów IPC, serwerów, SFF
|
| Model Number： | MB607SP-B |
| Color： | Black |
| Support Drive Size： | 4 x 2.5" SSD / HDD |
| Compatible Drive Type： | SATA / single channel SAS (SAS host required) |
| Number of Drives： | 4 |
| Max Drive Height： | 15mm |
| Drive Bay： | 1 x external 5.25" drive bay |

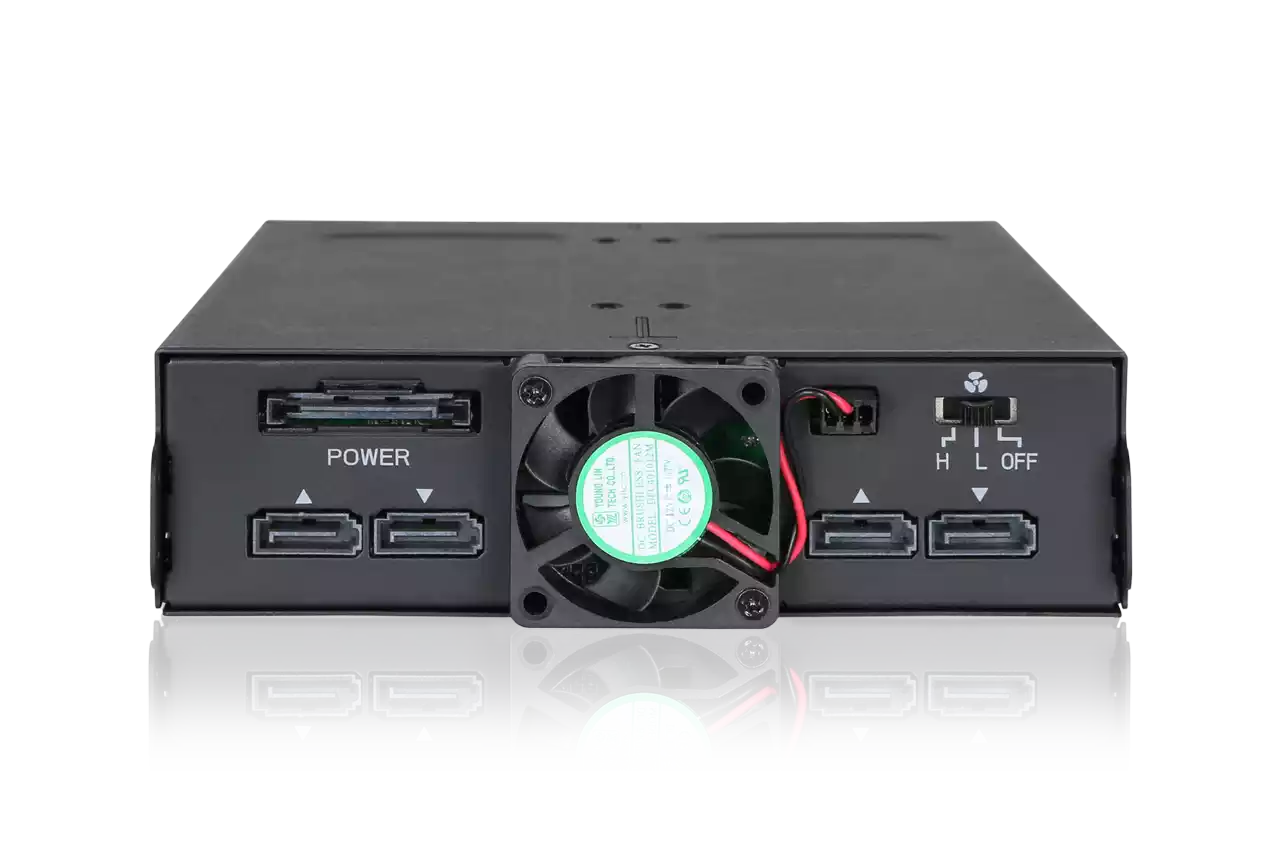

| Host Interface： | 4 x SATA 7pin |

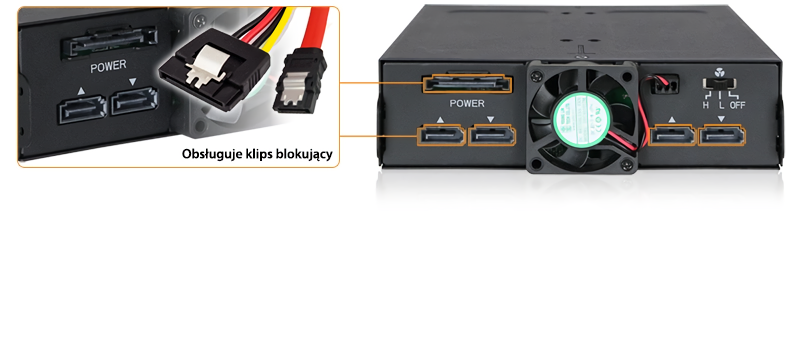

| Power Input： | 1 x 15 pin SATA power connector |
| Transfer Rate： | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
| Support HDD Capacity： | No limitation |
| Drive Cooling： | 1 x 40mm fan |
| RAID Function： | N/A |
| Structure / Material： | Full metal |
| Support Hot-Swap ： | Yes |
| Drive Security： | N/A |
| Product Dimension (L x W x H)： | 142.4 x 146 x 41.3 mm |
| Product Net Weight： | 847g |
| Package Gross Weight： | 918.9g |
| RAID Status LED Indicator： | None |
| Drive Activity LED Indication： | Drive power: solid green; HDD access: flashing green |

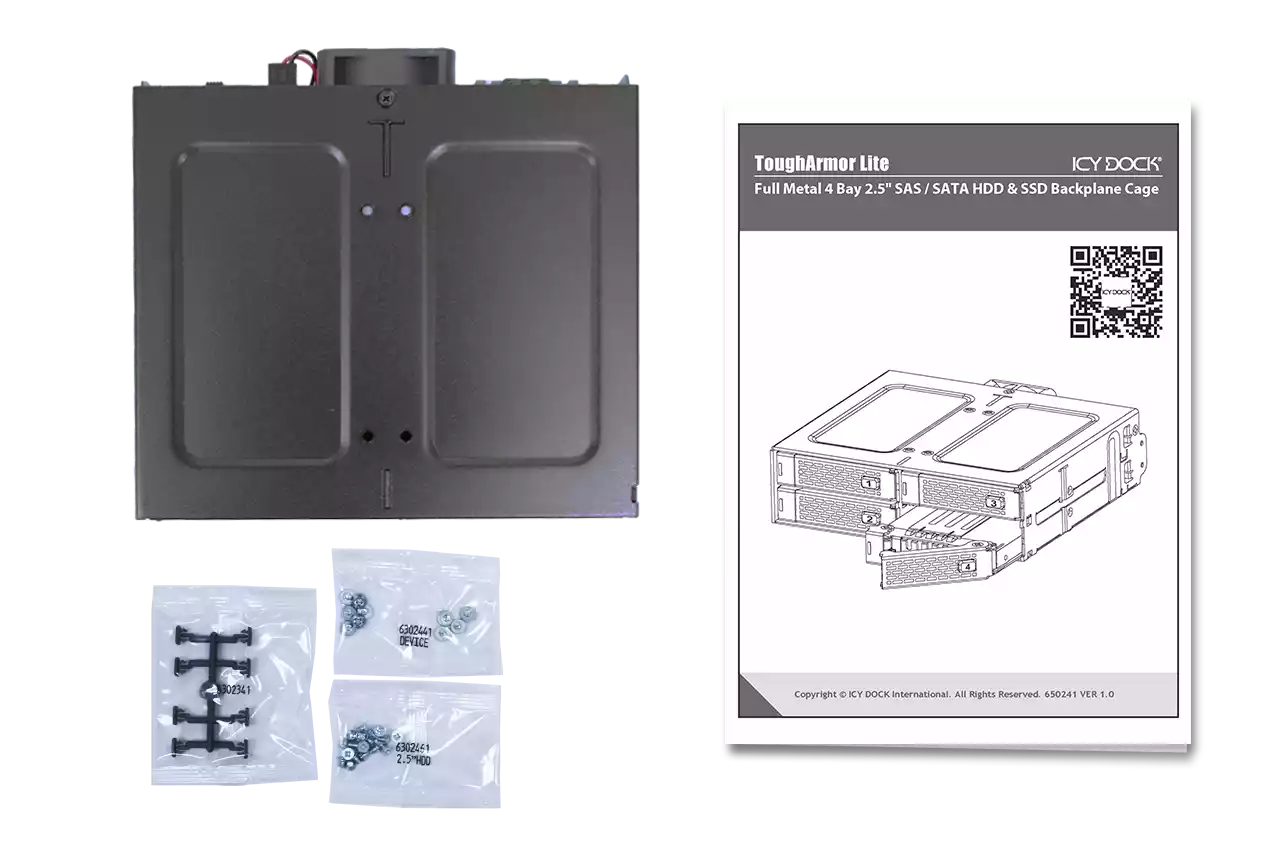

| Package Contents： | 1 - device, 1 - user manual, 1 - ID Plug, 28 - screw |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 5 years limited warranty |

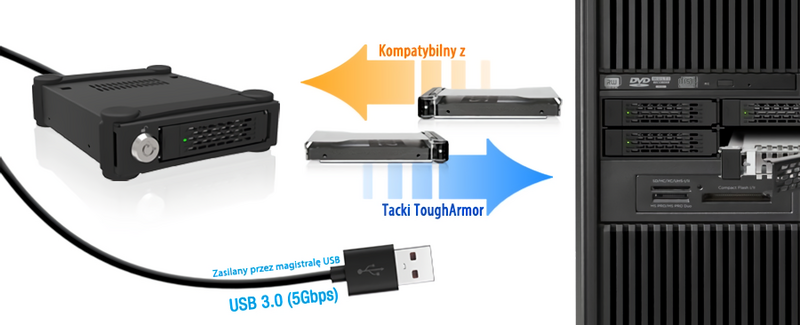

Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q: The mounting screws for the device seem to be too short to secure the device onto my system, what should I do?
A: For computer cases that have a thick metal sheet, the included mounting screws (M3*2.5L) may not fully secure the device. Please use longer screws (M3*4L) to secure the device or contact us at tech@icydock.com for replacement screws.
Q: Can I replace the cooling fan attached to the device? Will doing that void the warranty?
A: The cooling fan we used has been thoroughly tested with the drive enclosure to ensure it functions properly and supports the fan speed control (for select models). Therefore, we suggest our customers keep the original fan for the best result. However, we understand the stock fan may not be suitable for all the applications, so we elected to honor the warranty when 3rd party fan is using. The warranty may void if the 3rd party fan causes electrical damage to the device, though.
Q: Which specification should I check before buying the 3rd party cooling fan?
A:The following information is the fan specification requirement and compatible fan models for MB607SP-B
| Fan Dimension (LxWxH) | 40 x 40 x 10mm | 40 x 40 x 20mm |
| Connector Type | 3 Pin Wafer | |
| Rated Voltage (VDC) | 12V DC | |
| Rated Current (A) | < 0.12A (127mA) | |
| Screw Specification | Phillips Flat Head - M3 x 15mm - Steel (Came with stock fan) |
Phillips Flat Head - M3 x 25mm – Steel (Not Included) |
Compatible fan models
(without test, use it at your own risk)
Q: Does MB607SP-B support the new SATA 3.3 / SAS 3.0 Power Disable feature (PWDIS)?
A: The MB607SP-B does not support the SATA 3.3 / SAS 3.0 PWDIS feature. If you install the SATA/SAS HDD/SSD with PWDIS in MB607SP-B , the drive will not spin, and the system won't detect the drive. See the list below for known SATA/SAS HDD/SSD with the PWDIS feature.
While we recommend to avoid using the SATA/SAS HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:
Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.
 |
 |
|
| Molex to SATA Adapter | Molex to SATA Cable |
Method 2 – Placing Kapton tape on Pin 1-3 of the SATA/SAS power connector to isolate the 3.3V power, as shown below.
 |
 |
Please contact tech@icydock.com if the problem persists.
Q: I feel that the drive tray's upper and lower metal spring is stuck when inserting the drive tray. What should I do?
A: Remove the drive tray from the enclosure and reinsert the tray without putting excessive pressure on the metal mesh sheet in front of the tray. Excessive force on the front metal mesh sheet may bend the top and bottom metal spring, causing difficulties when inserting the drive tray. Therefore, please do not forcingly insert the drive tray when this happens as it may cause damage to the metal spring.
 |
| Please DO NOT put excessive pressure on the metal mesh sheet as shown |
