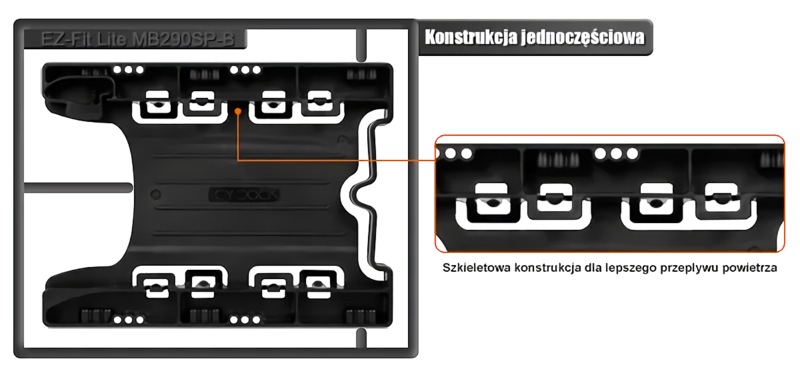

Trwała, jednoczęściowa konstrukcja
|
| • |
Antywibracyjna konstrukcja dla zwiększenia niezawodności
|
| • |

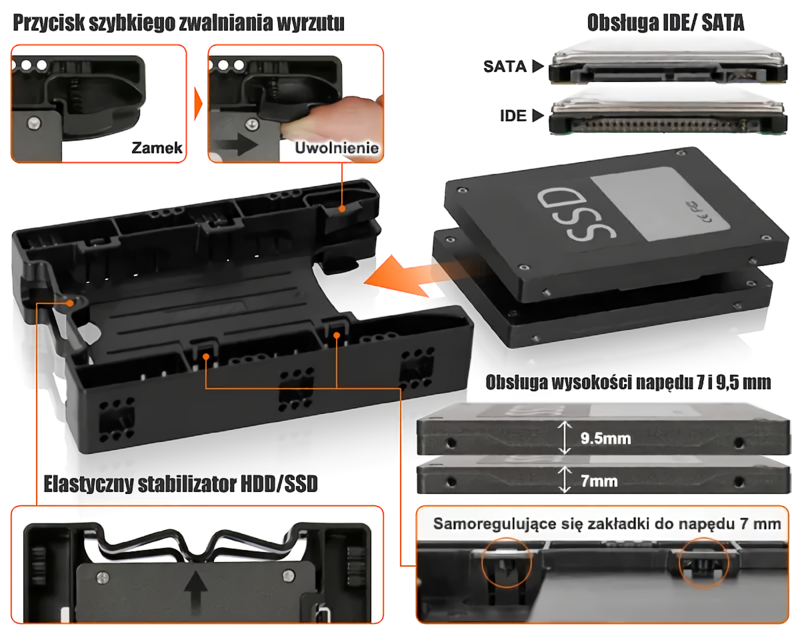

Mieści 2x 2,5” SSD/HDD SATA/IDE w jednej 3,5” zatoce
|
| • |
Kompatybilny z 2,5” HDD i SSD o wysokości od 7 do 9,5 mm
|
| • |
Szybki mechanizm zwalniający dla bezproblemowego demontażu napędu
|
| • |

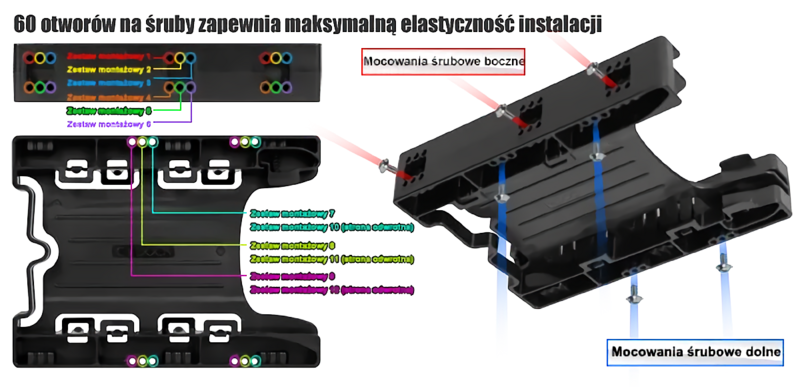

Uniwersalne otwory montażowe dla maksymalnej kompatybilności
|
| • | 60 otworów montażowych zapewnia maksymalną elastyczność instalacji |
| Model Number： | MB290SP-B |
| Color： | Black |
| Support Drive Size： | 2 x 2.5" IDE/SATA/SAS HDD & SSD (7-9.5mm) |
| Compatible Drive Type： | IDE/SATA/SAS |
| Number of Drives： | 2 |
| Max Drive Height： | 9.5mm |
| Drive Bay： | 1 x 3.5" internal drive bay |
| Structure / Material： | Plastic |
| Product Dimension (L x W x H)： | 134.5 x 101.6 x 25.4mm |
| Product Net Weight： | 59g |
| Packaging Gross Weight： | 95g |
| Package Contents： | 1-device, 1-user manual ,4-screws |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
| Model Number： | MB290SP-1B |
| Color： | Black |
| Support Drive Size： | 2 x 2.5" HDD & SSD (7-9.5mm) |
| Compatible Drive Type： | IDE/SATA |
| Number of Drives： | 2 |
| Max Drive Height： | 9.5mm |
| Drive Bay： | 1 x 3.5" internal drive bay |
| Structure / Material： | Plastic |
| Product Dimension (L x W x H)： | 134.5 x 101.6 x 25.4mm |
| Product Net Weight： | 59g |
| Shipping (Package) Weight： | 154.7g |
| Package Contents： | Device x 1, user manual x 1, screw x 4, SATA data cables x 2, SATA power Y splitter cable x 1 |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Related Products Series:
Quick Link:
Q:The mounting screws for the device seem to be too short to secure the device onto my system, what should I do?
A: For computer cases that have a thick metal sheet, the included mounting screws (M3*2.5L) may not fully secure the device. Please use longer screws (M3*4L) to secure the device or contact us at tech@icydock.com for replacement screws.
By AA Computers and Technology
“This is a great solution if the inside of your desktop is tight on space and you are looking to add some additional hard drives / 3.5″ devices. Ease of use is top notch and the price to quality ratio is excellent ”
By DB Tech Vlog
“Today we are going to look at the MB322SP-B 5.25" hard drive bay from ICY DOCK. This device allows you to stick 2X 2.5" HDD's along with a single 3.5" device into a single 5.25" bay within your desktop. The bay can be bought for $26 off Amazon and with the addition of one of ICY DOCKS's 2.5" hard drive bracket adapters it can fit up to 4X 2.5" HDD's. ”
By David McCabe
"Today I've got two cages from Icy Dock. The ICY Dock ToughArmor MB996Sp-6SB and ExpressCage MB322SP-B."
