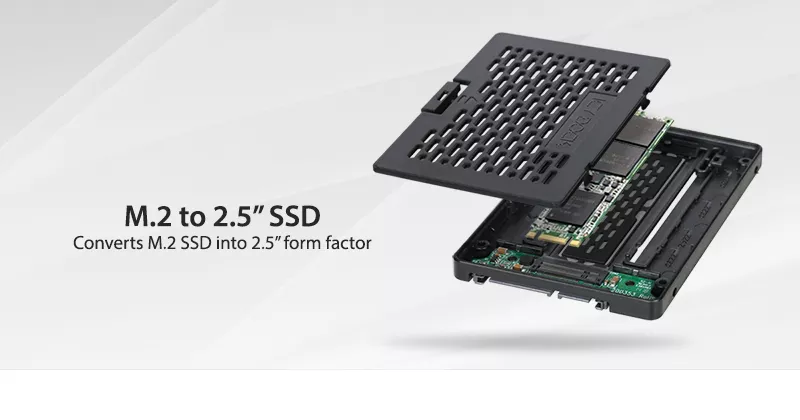

Konwertuje M.2 SATA SSD na 2.5" SSD/HDD o wysokości 9,5 mm
|
|
•
|
Dokładnie takie same wymiary, położenia portów i wkrętów, jak w 2.5" HDD lub SSD (9,5 mm wysokości)
|
|
•
|

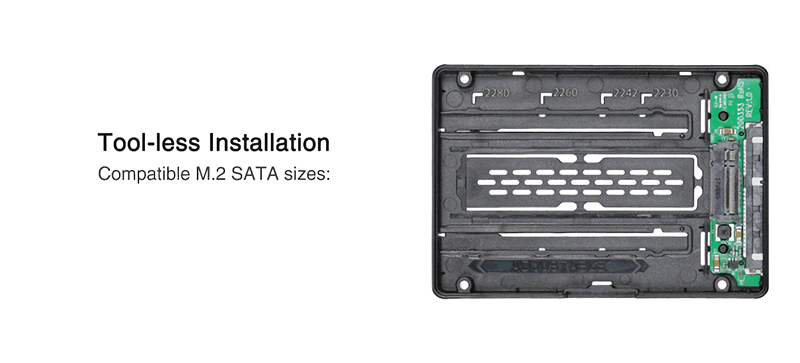

Mieści jakikolwiek dysk M.2 SATA SSD od 30mm do 80mm długości (2230 / 2242 / 2260 / 2280)
|
|
•
|

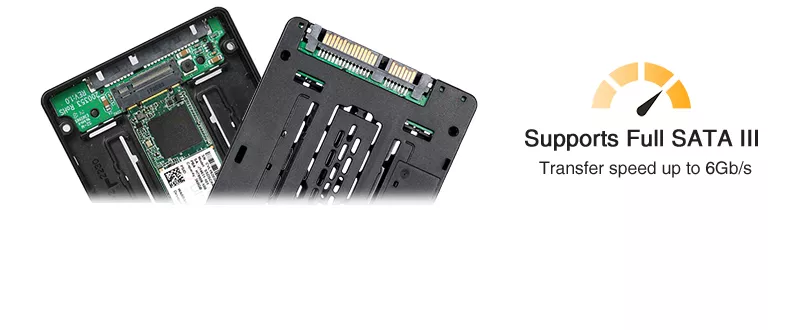

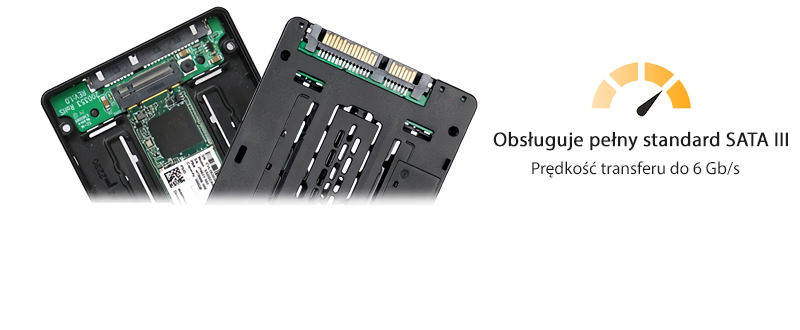

Obsługuje pełną przepustowość SATA III do 6 Gbps
|
|
•
|

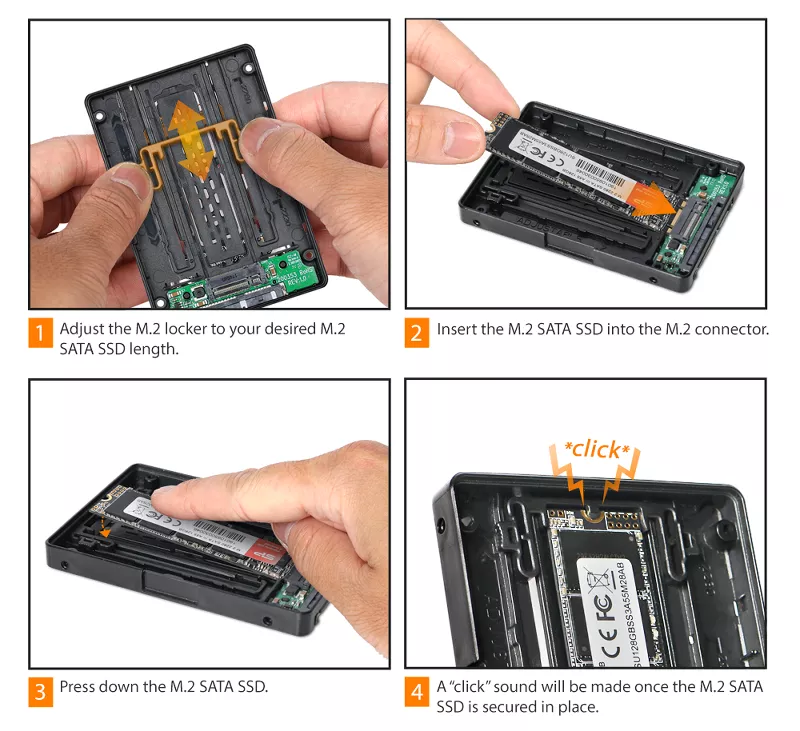

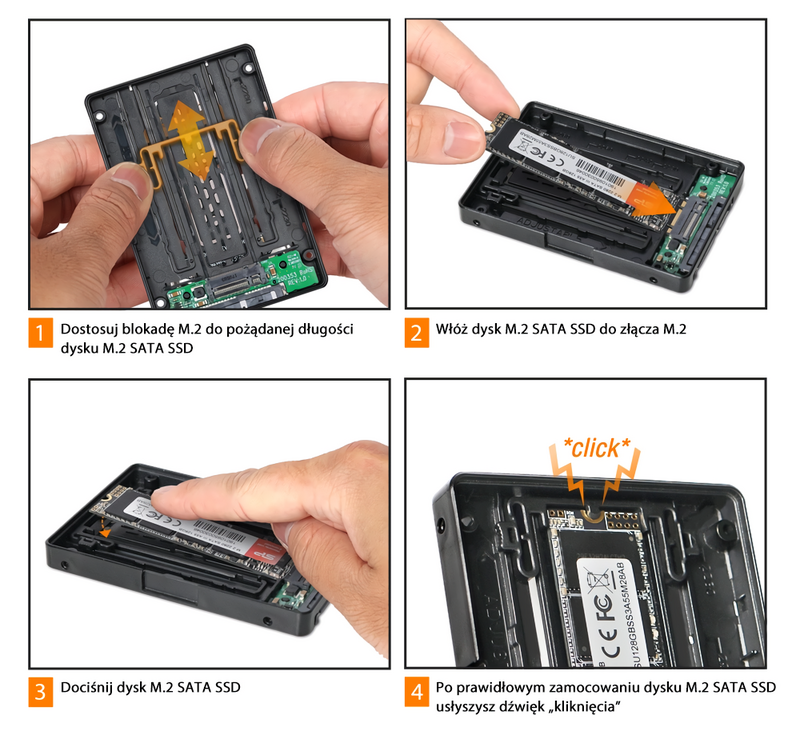

W 100% beznarzędziowa instalacja dysku M.2
|
|
•
|

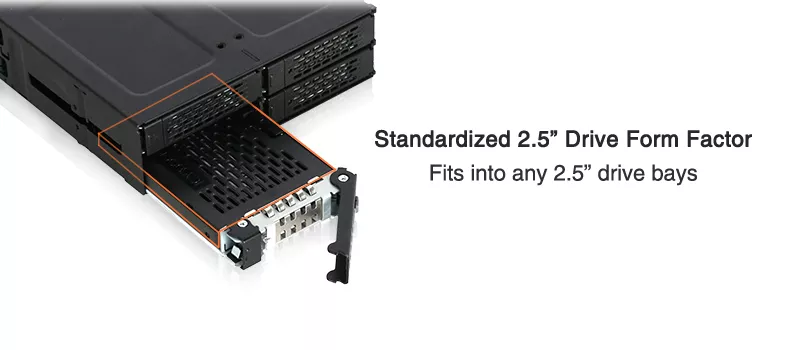

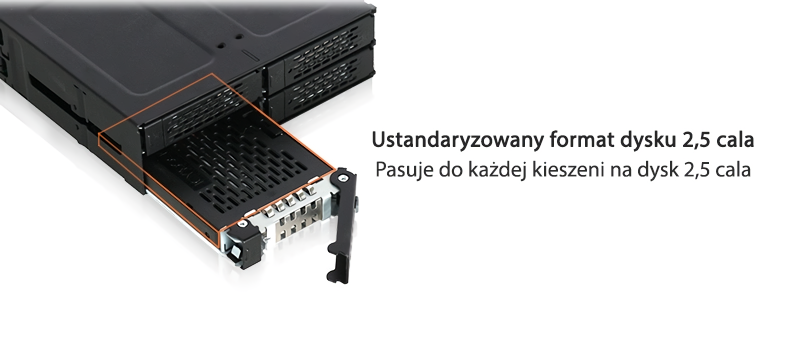

Może być zainstalowany w dowolnym miejscu na dysk 2,5”
|
|
•
|
Wytrzymała konstrukcja z tworzywa ABS
|
|
•
|

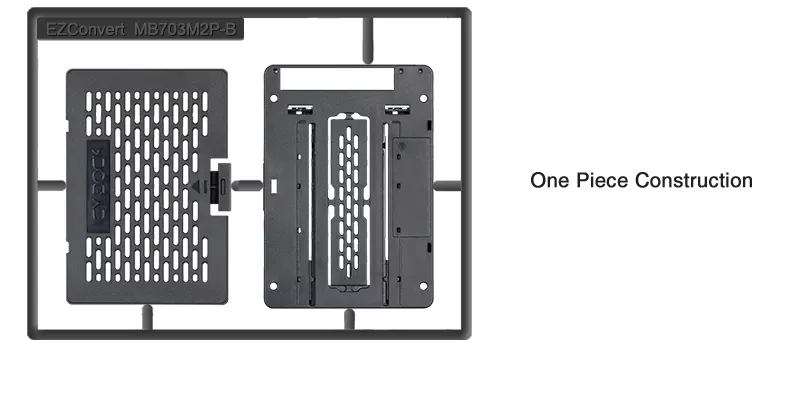

Korpus i pokrywa mają mocną, jednoczęściową konstrukcję
|
|
•
|
Pełna, 3-letnia gwarancja na wszystkie usterki
|
|
•
|
Bezpłatne wsparcie techniczne od przeszkolonych, amerykańskich techników wsparcia ICY DOCK
|
| Model Number： | MB703M2P-B |
| Color： | Black |
| Support Drive Size： | 1 x B / B + M key M.2 SATA SSD 2230/2242/2260/2280 |
| Compatible Drive Type： | SATA |
| Number of M.2： | 1 |
| Drive Bay： | 1 x 2.5" SATA drive bay (9.5mm - 15mm) |
| Host Interface： | 1 x SATA 7pin |
| Power Input： | 1 x SATA 15pin power connector |
| Transfer Rate： | Up to 6Gbps (depending on hard drive speed) |
| Support HDD Capacity： | No limitation |
| Structure / Materia： | Plastic |

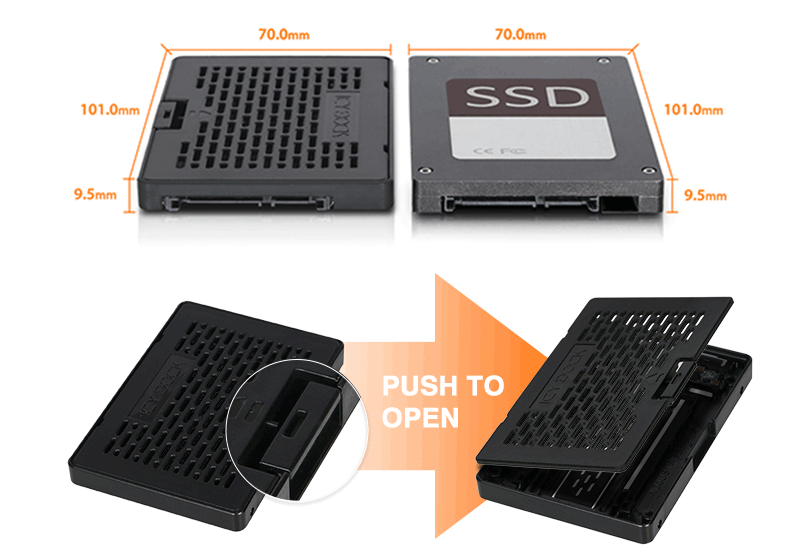

| Product Dimension (W x H x D)： | 70.0 x 9.5 x 101.0mm |
| Product Net Weight： | 28g |
| Package Gross Weight： | 53g |
| Package Contents： | Device, user manual |

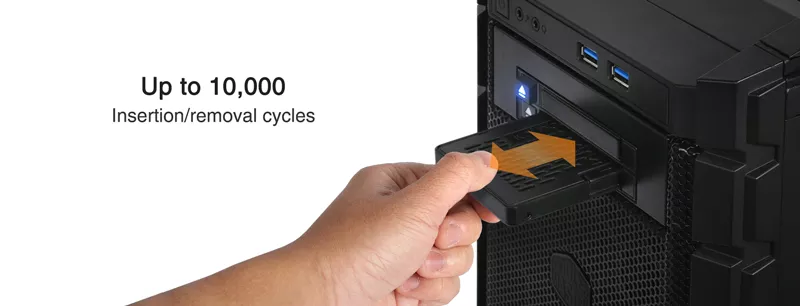

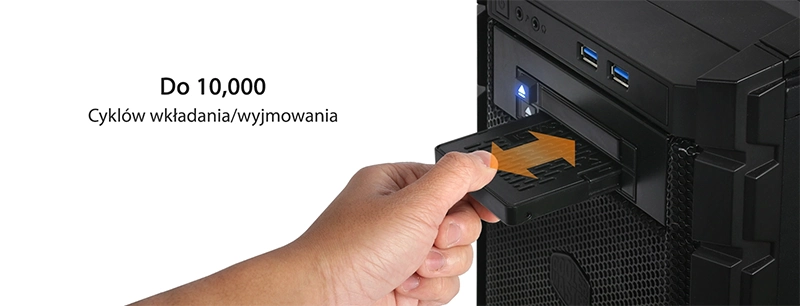

| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Related Products:
Related Products Series:
Quick Link:
Q: Which type of M.2 SSDs are compatible with the converter?

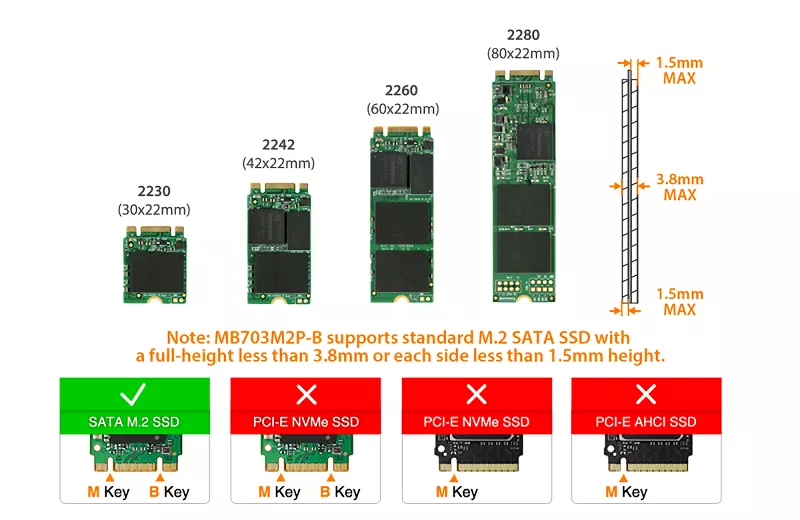

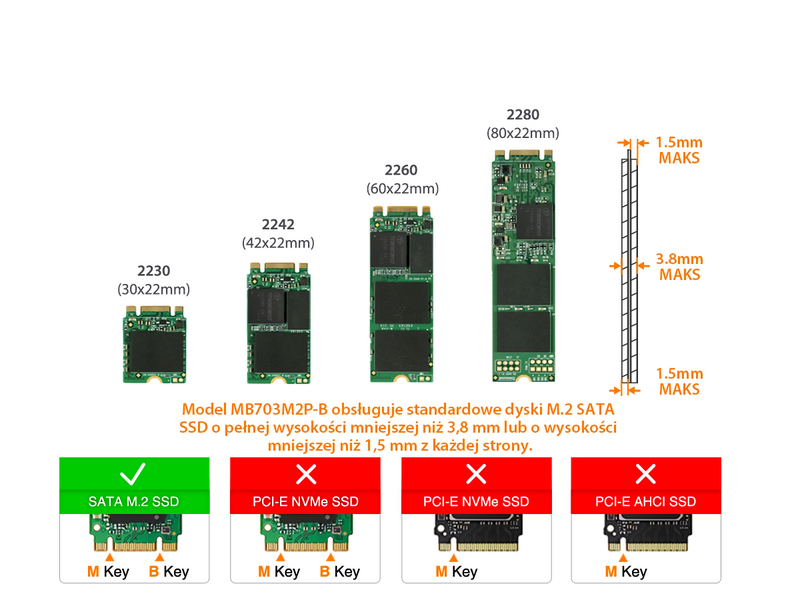

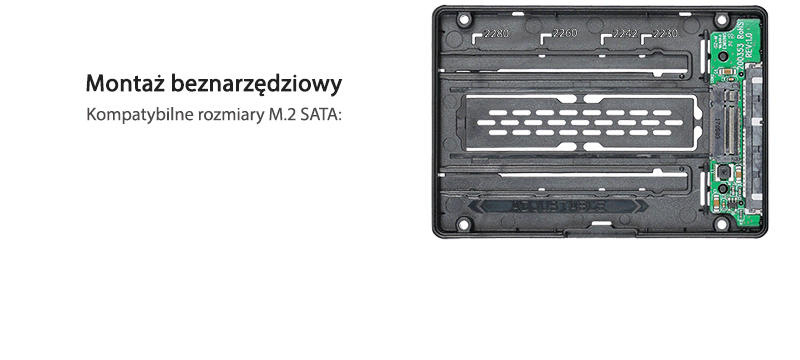

A: The converter is compatible with 1 x B / B + M Key M.2 SATA SSD 2230/2242/2260/2280. Please see the the compatibility image below:
Q: I'm having the difficulties closing the lid of the drive tray and unable to insert the drive tray all the way to the drive enclosure after placing the M.2 SSD onto the drive tray.
A: Make sure to lock the M.2 SSD with the adjustable M.2 locker. The tray lid will not close properly if the M.2 locker is not fully secured. If you are having difficulty secure the M.2 locker or close the cover, the M.2 SSD you are using may not follow the standard M.2 SSD thickness, which is less than 1.5mm height for each side with a total height that does not exceed 3.8mm. Using the M.2 SSD with non-standard thickness will cause improper tension on the M.2 locker and tray lid and make the M.2 connector misaligned. If you are having issues inserting the drive tray to the enclosure, please stop the operation immediately and check the drive thickness to ensure it follows the standard M.2 SSD thickness - less than 1.5mm height for each side and less than 3.8mm for total height.
Note: Some M.2 SSD uses a metal heat dissipation sticker that causes each side's thickness more than the 1.5mm. Remove the sticker will solve the problem, but do it at your own risk (might void the warranty of SSD)
ICY DOCK enclosure is design to be compatible with M.2 SSD that has standard thickness. We highly recommend checking the drive thickness before purchase, and please refer to the incompatible M.2 SSD list below for further information:
M.2 SATA SSDs known to be incompatible with ICY DOCK enclosure:
Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.
Click here to report a compatible/incompatible M.2 SSD.
By ServetheHome
"Whether you have extra M.2 SATA drives laying around that you want to use, simply need to convert a M.2 SSD from a laptop or another device for imaging, or have run out of M.2 SATA ports on your motherboard the EZConvert MB703M2P-B can fill your needs by installing these drives in a standard 2.5” drive bay. These can also be used in servers with 2.5” bays without issues."
