| Optional Certifications Available for EZConvert MB882SP-1S-2B | |
| TAA | Zgodność z Trade Agreements Act |
| UL | Certyfikacja standardów bezpieczeństwa |
| UL94 | Palność materiałów z tworzyw sztucznych |
| FCC | Zgodność z przepisami Federal Communications Commission |
| Szeroki zakres temperatur | MIL-STD-810H - Method 501.7 & 502.7 |
| • | Konwertuje 2,5-calowy dysk twardy SATA HDD lub SSD na 3,5-calowy dysk twardy SATA, do użytku we wnęce na dysk SATA 3,5 cala |
| • | Obsługa SATA 6 Gb/s lub SAS 3.0 12 Gb/s (pojedynczy kanał) |
| • | Kompatybilny z większością płyt montażowych dysków twardych 3,5” i urządzeń Hot Swap |

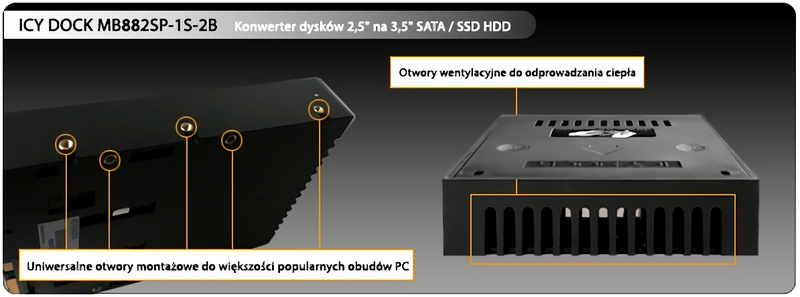

| • | Uniwersalne otwory montażowe dla większości popularnych obudów PC |
| • | Bezśrubowa konstrukcja dla szybkiej i łatwej instalacji |
| • | Otwory wentylacyjne do odprowadzania ciepła z odporną na wstrząsy konstrukcją |
| • | Prosta i lekka konstrukcja |
| • | Zgodność z komputerami Mac Pro i iMac pierwszej generacji |
| • | Idealny dla zaawansowanych użytkowników, graczy i przeciętnych użytkowników |
| Model Number： | MB882SP-1S-2B |
| Color： | Black |
| Support Drive Size： | 2.5" SATA SSD & HDD |
| Compatible Drive Type： | SATA / single channel SAS (SAS host required) |
| Number of Drives： | 1 |
| Max Drive Height： | 12.5mm |
| Drive Bay： | 1 x 3.5" device bay |
| Host Interface： | 1 x 7 pin SATA |
| Power Input： | 1 x 15 pin SATA power connector |
| Transfer Rate： | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
| Support HDD Capacity： | No limitation |
| Structure / Material： | Plastic |
| Support Hot-Swap： | Yes |
| Product Dimension (L x W x H)： | 145 x 101 x 25 mm |
| Product Weight： | 119g |
| Shipping (Package) Weight： | 160g |
| Package Contents： | 1 - device, 1 - user manual, 4 - screws |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Opertating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Related Products:
Related Products Series:
Quick Link:
Q: What's the difference between the MB882SP-1S-2B and the MB882SP-1S-1B?
A: The "-1B" version is the first of its kind in this product line. The top door hinges open, and the drive is connected and disconnected to the SATA interface via a metal tray that slides into and out of the connection as the door opens and closes.
The "-2B" version was our second addition to this product line and is what we call our "simple version". This device uses a top door that comes all the way off, and uses a simpler mechanism to connect the drive to the SATA connection. As the door is slid into place, it pushes a flap inside the box which in turn pushes the drive into the SATA connection.
Q: What is the difference between MB882SP-1S-1B(2B) and MB382SP-3B and MB982SP-1S?
A: The MB882SP-1S-1B(2B) is the first 2.5" to 3.5" hard drive or SSD converter with an overall sturdy, reliable construction with easy access to the drive perfect for system integrators and IT professionals.
The MB982SP-1S is based off the MB882 series design but utilizes a full metal design creating a better environment for cooling, as well as giving it a rock solid construction ideal for industrial, enterprise, and military applications.
The MB382SP-3B is a new design based off the MB982SP-1S but with added open air design with exceptional cooling.
Q: My HDD/SSD isn’t being detected when inserted into the MB882SP-1S-2B. What do I do?
A: This particular device is designed to fully support any standard 2.5" SATA 9.5mm height SSDs or HDDs. For 2.5" drives that are 7mm in height (e.g. Samsung 840 SSD), the tool-less drive load may not work properly. Performing a manual install into the device is an alternative method to provide better compatibility. Please see the installation video for more information here
Q: Will this converter allow me to fit my SSD or 2.5" HDD into a 3.5" bay?
A: The MB882SP-1S-2B is a 2.5" to 3.5" hard drive converter. It will fit any standard 2.5" SATA hard drive or SSD into any standard 3.5" hard drive bay.
Q: Will using this converter affect performance in any way?
A: This converter will not affect performance in any way because the device interface is essentially a bypass. It will be like the hard drive is directly connected to the motherboard.
Q: Does the MB882SP-1S-2B support Samsung 840 series SSDs?
A: Yes, this converter will support all 7-9.5mm 2.5" SATA hard drive or SSD.
Q: Does the MB882SP-1S-2B support SATA III hard drives or SSD with SATA III interface?
A: The MB882SP-1S-2B support SATA I / II / III hard drives or SSD with a SATA I / II / III interface.
Q: Does MB882SP-1S-2B support the new SATA 3.3 / SAS 3.0 Power Disable feature (PWDIS)?
A: The MB882SP-1S-2B does not support the SATA 3.3 / SAS 3.0 PWDIS feature. If you install the SATA/SAS HDD/SSD with PWDIS in MB882SP-1S-2B , the drive will not spin, and the system won't detect the drive. See the list below for known SATA/SAS HDD/SSD with the PWDIS feature.
While we recommend to avoid using the SATA/SAS HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:
Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.
 |
 |
|
| Molex to SATA Adapter | Molex to SATA Cable |
Method 2 – Placing Kapton tape on Pin 1-3 of the SATA/SAS power connector to isolate the 3.3V power, as shown below.
 |
 |
Please contact tech@icydock.com if the problem persists.
