| Opcjonalne certyfikaty dostępne dla ToughArmor MB991U3-1SB | |
| TAA | Zgodność z Trade Agreements Act |
| UL | Certyfikacja standardów bezpieczeństwa |
| UL94 | Palność materiałów z tworzyw sztucznych |
| FCC | Zgodność z przepisami Federal Communications Commission |
| Szeroki zakres temperatur | MIL-STD-810H - Method 501.7 & 502.7 |
| • | Metalowa obudowa zapewnia trwałość i ochronę napędu |
| • | Zdejmowany podajnik EZ-slide Mini obsługuje szybką wymianę dysku |
| • | Obsługuje 2,5” dyski SATA o wysokości 5mm, 7mm, 9,5mm i 15mm |
| • | Obsługa UASP przez interfejs USB 3.0 |

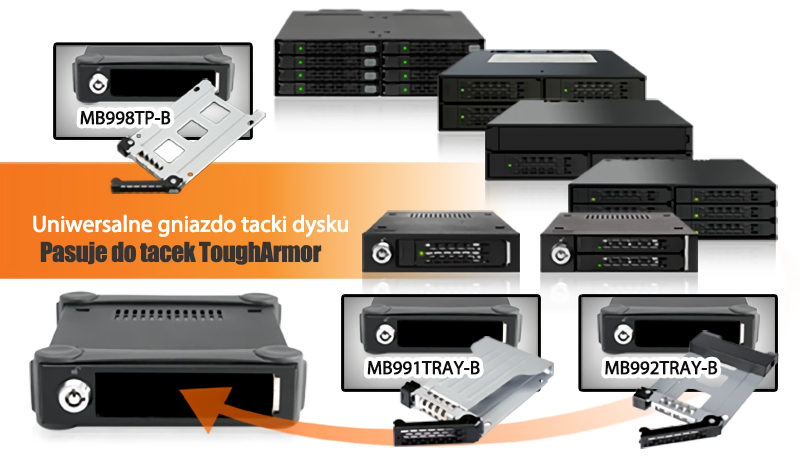

| • | Uniwersalne gniazdo, które jest kompatybilne z szeroką gamą napędów serii ToughArmor: MB991, MB992, MB994, MB996 i MB998 |
| • | Zabezpieczenie Eagle utrzymuje dyski w obudowie |
| • | Technologia Multi-flow (MFT) - zapewnia chłodzenie pasywne |
| • | Technologia antywibracyjna tworzy bezpieczne środowisko dla dysków |
| • | Technologia Active Power - urządzenie dostaje moc tylko gdy napęd jest zainstalowany |

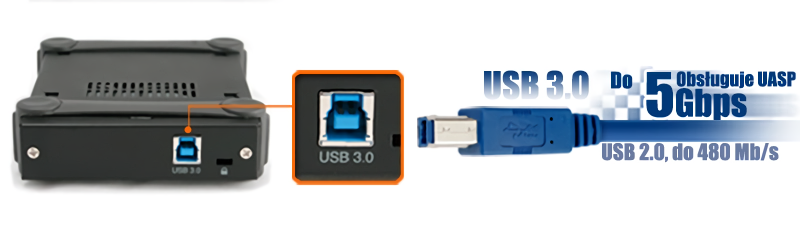

| • | USB 3.0 z obsługą UASP i kompatybilne z interfejsem USB 2.0 |

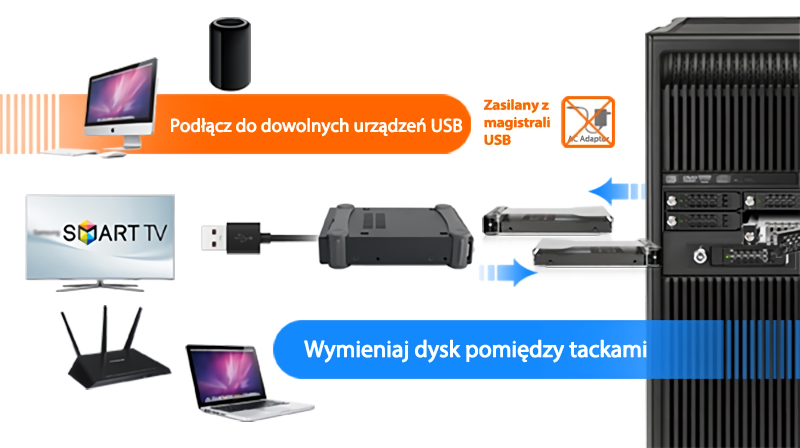

| • | Nie jest wymagany zasilacz |
| Model Number： | MB991U3-1SB |
| Color： | Matte black |
| Drive Fit： | 1 x 2.5" SATA III HDD & SSD (up to 15mm height) |
| Connection Interface： | 1 x USB 3.0 |
| Power Input： | Power via USB |
| Maximum Transfer Rate： | USB 3.0 up to 5Gb/sec (USB 2.0 up to 480 Mb/sec) |

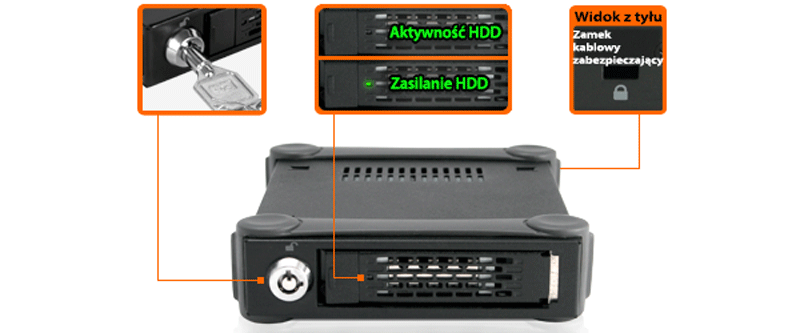

| HDD Access Indicator： | Empty bay: LED off HDD idle: solid green HDD access: flashing green |
| Drive Cooling： | Airflow vents with metal heat dissipation |
| Drive Security： | 2 segment key lock |

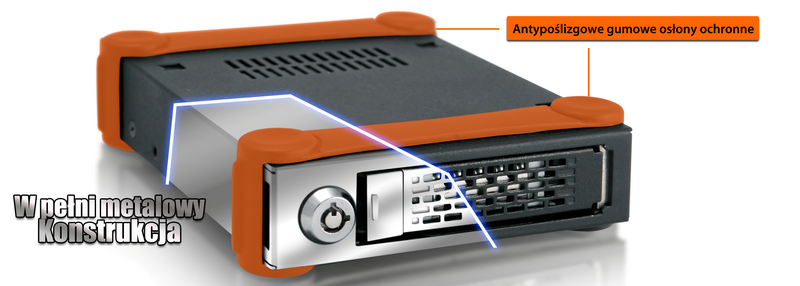

| Structure： | Full metal |
| Dimension (L x W x H)： | 141.4 x 110 x 35.4mm |
| Product Net Weight： | 462g |
| Package Gross Weight： | 618.8g |
| Package Contents： | Device, user manual, screws, keys, USB type B to A cable |
Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q: I installed the hard drive/SSD and the device is connected to my computer, but the drive is not detected.
A: There are some scenarios you can do to rule out potential problems.
Scenario 1 – Drive status LED is not lighting up
Scenario 2 - The drive status LED lights up, but the hard drive/SSD is still not detectable
Scenario 3 - The hard drive/SSD and the connected USB port do work normally, but the drive does not show up on my computer after connecting to my computer
Scenario 4 - It has been verified to rule out all possible hardware problems, but the system still cannot detect the hard drive/SSD
Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.
Q: I feel that the drive tray's upper and lower metal spring is stuck when inserting the drive tray. What should I do?
A: Remove the drive tray from the enclosure and reinsert the tray without putting excessive pressure on the metal mesh sheet in front of the tray. Excessive force on the front metal mesh sheet may bend the top and bottom metal spring, causing difficulties when inserting the drive tray. Therefore, please do not forcingly insert the drive tray when this happens as it may cause damage to the metal spring.
 |
| Please DO NOT put excessive pressure on the metal mesh sheet as shown |
