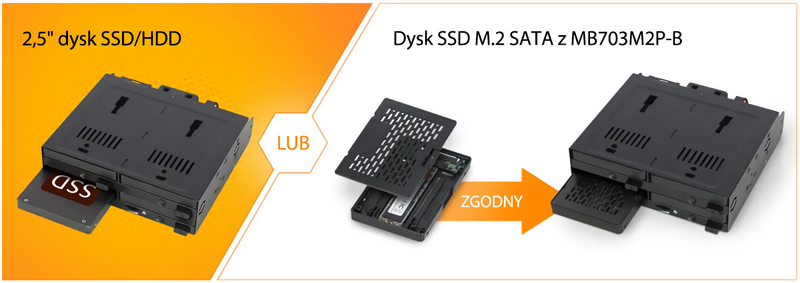

Obsługa czterech dysków 2,5" SAS/SATA HDD/SSD (5-9,5 mm)
|
| • |
Obsługa złącza SATA 3.0 6 Gb/s lub SAS 3.0 12 Gb/s (wymagany kontroler SAS)
|
| • |
Instalacja w pojedynczej wnęce 5,25"
|
| • |
Konstrukcja bez drzwiczek i tacek ułatwia zarządzanie dyskami
|

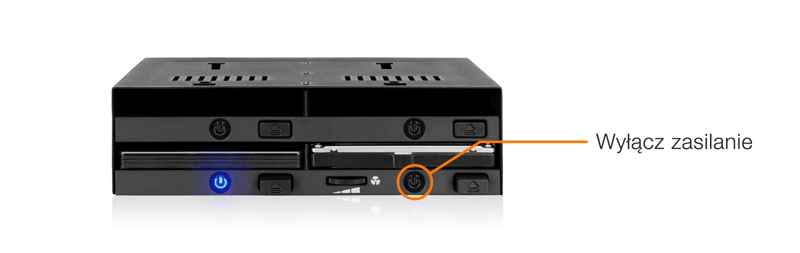

| • | Ulepszony przełącznik zasilania i system odinstalowywania dysków |
| • |

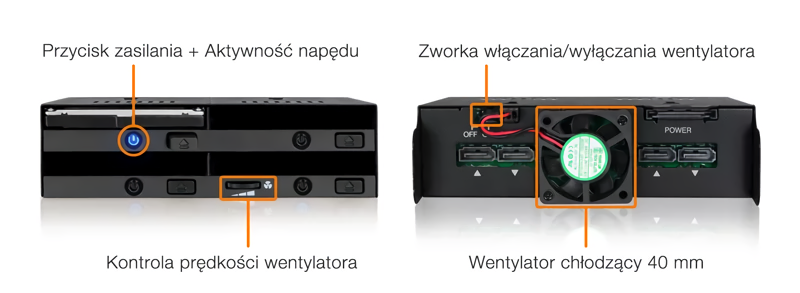

Wydajny wentylator 40 mm sterowany przełącznikiem
|
| • |
Wspornik kabla SATA z zatrzaskiem zabezpieczającym
|
| • | Konstrukcja z metalu i ABS dla lepszej ochrony
|
| • | 3-letnia gwarancja producenta |
| • |
Bezpłatne wsparcie ze strony profesjonalnie przeszkolonych agentów pomocy technicznej
|
| Model Number： | MB014SP-B |
| Color： | Black |
| Support Drive Size： | 2.5" SSD / HDD |
| Compatible Drive Type： | SATA / Single channel SAS (SAS host required) |
| Number of Drives： | 4 |
| Max Drive Height： | 9.5mm |
| Drive Bay： | 1 x 5.25" drive bay |
| Host Interface： | 4 x SATA 7pin |
| Power Input： | 1 x SATA 15pin power |
| Transfer Rate： | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
| Support HDD Capacity： | No limitation |
| Drive Cooling： | 1 x 40mm fan |
| Structure / Material： | Metal body with parital plastic |

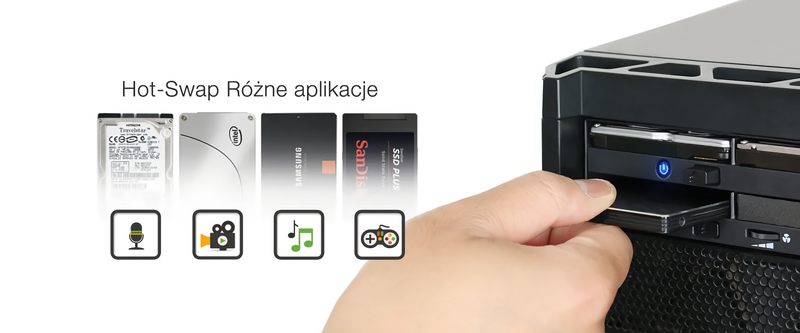

| Support Hot-Swap： | Yes |
| Product Dimension (L x W x H)： | 139 x 146 x 41.3 mm |
| Product Net Weight： | 566g |
| Package Gross Weight： | 664.5g |
| Drive Activity LED Indication： | Drive power: solid blue; HDD access: flashing blue |
| Package contents： | 1 - Device, 1 - user manual, 10 - screw |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Related Products Series:
Quick Link:
Q: The mounting screws for the device seem to be too short to secure the device onto my system, what should I do?
A: For computer cases that have a thick metal sheet, the included mounting screws (M3*2.5L) may not fully secure the device. Please use longer screws (M3*4L) to secure the device or contact us at tech@icydock.com for replacement screws.
Q: My 2.5" drive is having difficulty ejecting with the device, why is that?
A: Having difficulty ejecting your 2.5” drive can be caused by a few major factors. Please be sure you are using no larger than 9.5mm drive in height. There are around 3% of 2.5" drives that may have difficulty when ejecting the drive due to different drive width dimensions from various manufacturers. If the problem persists and think your unit may be at fault, please contact tech@icydock.com, so we can resolve the issue as soon as possible.
Q: Can I replace the cooling fan attached to the device? Will doing that void the warranty?
A:The cooling fan we used has been thoroughly tested with the drive enclosure to ensure it functions properly and supports the fan speed control (for select models). Therefore, we suggest our customers keep the original fan for the best result. However, we understand the stock fan may not be suitable for all the applications, so we elected to honor the warranty when 3rd party fan is using. The warranty may void if the 3rd party fan causes electrical damage to the device, though.
Q: Which specification should I check before buying the 3rd party cooling fan?
A:The following information is the fan specification requirement and compatible fan models for MB014SP-B
| Fan Dimension (LxWxH) | 40 x 40 x 10mm | 40 x 40 x 20mm |
| Connector Type | 3 Pin Wafer | |
| Rated Voltage (VDC) | 12V DC | |
| Rated Current (A) | < 0.12A (127mA) | |
| Screw Specification | Phillips Flat Head - M3 x 15mm - Steel (Came with stock fan) |
Phillips Flat Head - M3 x 25mm – Steel (Not Included) |
Compatible fan models
(without test, use it at your own risk)
