| Optional Certifications Available for TurboSwap MB171SP-1B | |
| UL | Certyfikacja standardów bezpieczeństwa |
| UL94 | Palność materiałów z tworzyw sztucznych |
| FCC | Zgodność z przepisami Federal Communications Commission |
| Szeroki zakres temperatur | MIL-STD-810H - Method 501.7 & 502.7 |
|
•
|
Wsparcie dla 1x 3,5" SATA/SAS HDD (dla dysków SAS konieczny jest odpowiedni kontroler)
|
|
•
|
Instalacja w pojedynczym slocie 5,25"
|
|
•
|

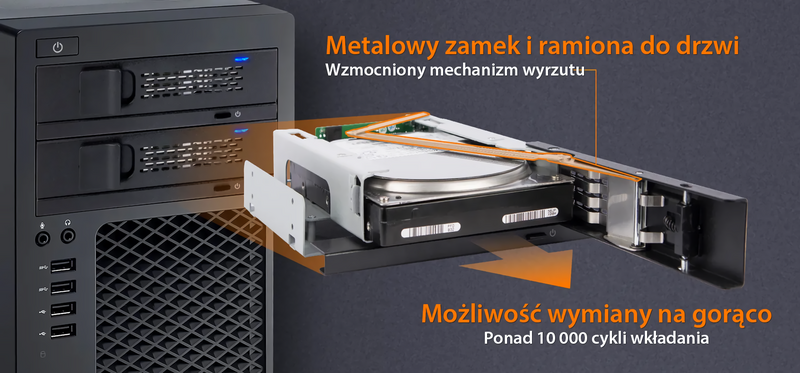

Instalacja dysków hot-swap bez użycia tacek i narzędzi
|
|
•
|
Wytrzymałe, metalowe drzwiczki dla pełnej ochrony nośników
|
|
•
|
Wsparcie dla SATA 3.0 6Gbps lub SAS 4.0 24Gbps (SAS jednokanałowy)
|
|
•
|

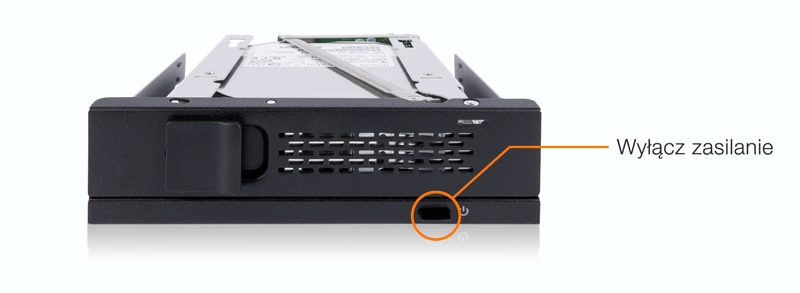

Manualny przełącznik zasilania
|
| • | Wzmocniona, metalowa obudowa |
|
•
|
3 lata gwarancji producenta
|
| Model Number： | MB171SP-1B |
| Color： | Black |
| Support Drive Size： | 3.5" HDD |
| Compatible Drive Type： | SATA / SAS (support single channel SAS) |
| Number of Drives： | 1 |
| Max Drive Height： | 1 x 3.5" 26.1mm |
| Drive Bay： | 1 x 5.25" half height drive bay |
| Host Interface： | 7pin SATA connection |
| Power Input： | 15pin SATA power connection |
| Transfer Rate： | SATA 3.0 up to 6Gbps / SAS 4.0 up to 24Gbps (single channel) |
| Support HDD Capacity： | No limitation |
| RAID Function： | N/A |
| Structure / Material： | Full metal |
| Support Hot-Swap： | Yes |
| Product Dimension (L x W x H)： | 173 x 145.8 x 41.3mm |
| Product Net Weight： | 421.3g |
| Package Gross Weight： | 527.3g |
| Drive Activity LED Indication： | Drive power:solid blue; HDD access: flashing blue |
| Package Contents： | 1 - device, 1 - user manual, 8 - screws |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Related Products:
Related Products Series:
Q: Does MB171SP-1B support the new SATA / SAS Power Disable feature (PWDIS)?
A: The MB171SP-1B does not support the SATA / SAS PWDIS feature. If you install the SATA/SAS HDD/SSD with PWDIS in MB171SP-1B , the drive will not spin, and the system won't detect the drive. See the list below for known SATA/SAS HDD/SSD with the PWDIS feature.
While we recommend to avoid using the SATA/SAS HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:
Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.
 |
 |
|
| Molex to SATA Adapter | Molex to SATA Cable |
Method 2 – Placing Kapton tape on Pin 1-3 of the SATA/SAS power connector to isolate the 3.3V power, as shown below.
 |
 |
Please contact tech@icydock.com if the problem persists.
