Fits in Standard 5.25" Drive Bay.
|
|
•
|

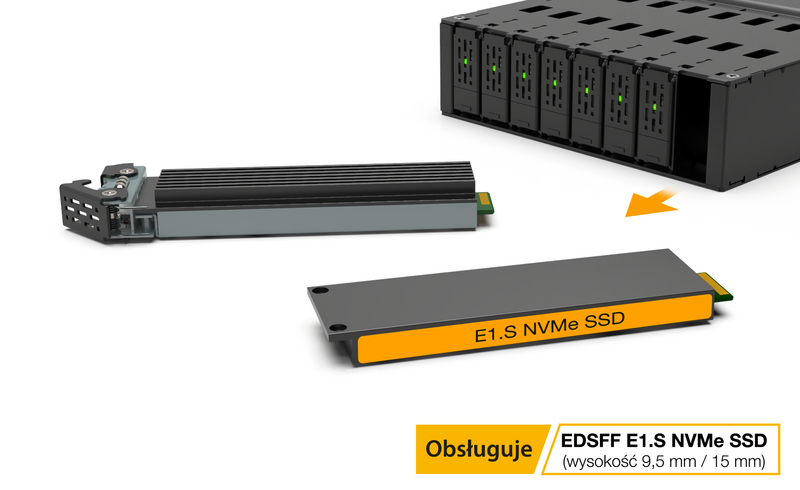

Supports 8 x E1.S (EDSFF) NVMe SSDs (5.9/8.01mm height) or 8 x M.2 NVMe SSD (2230/2242/2260/2280/22110).
|
|
•
|
Uses 4 x MCIO 8i (SFF-TA-1016 8i) port supports PCIe 5.0 x4 of up to 128Gbps data transfer rates.
|
|
•
|
Ability to mix and match E1.S and M.2 NVMe SSDs in a single enclosure.
|
|
•
|
Supports tool-less drive installation for both E1.S and M.2 NVMe SSDs.
|
|
•
|

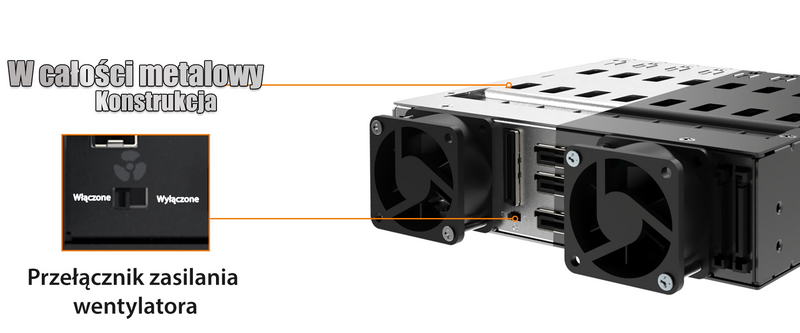

Equipped with dual 40mm detachable fans for superior cooling performance.
|
|
•
|
Fan on/off control - adjust fan settings according to your HDD/SSD temperature.
|
|
•
|

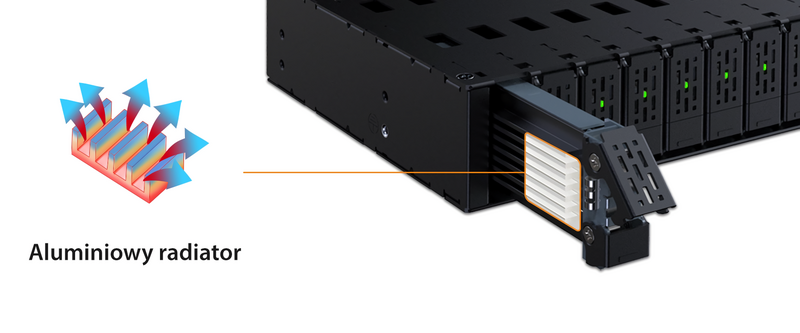

The aluminum drive tray acts as a heatsink to dissipate heat generated by the SSD.
|
|
•
|
Includes thermal pad that conducts the heat from the drive to the heatsink tray.
|
|
•
|
Ruggedized full-metal enclosure that meets flammability requirements.
|
|
•
|
Removable and tool-less drive installation for easy drive maintenance.
|
|
•
|
Eagle-hook tray latch – Securely holds drive trays in the enclosure.
|
|
•
|
Active power technology (APT) – LED and fan only power up if a drive is installed.
|
| Model Number : | CP121 |
| Color : | Black |
| Host Interface : | 4 x MCIO 8i (SFF-TA-1016 8i) |
| Drive Fit : | 8 x E1.S 5.9mm/8.01mm or M.2 SSD 2230/2242/2260/2280/22110mm |
| Drive Bay : | 1 x 5.25" drive bay |
| Maximum Transfer Rate : | Up to 128Gbps (depending on SSD speed) |
| Power Input : | 3 x 15pin SATA power connector |

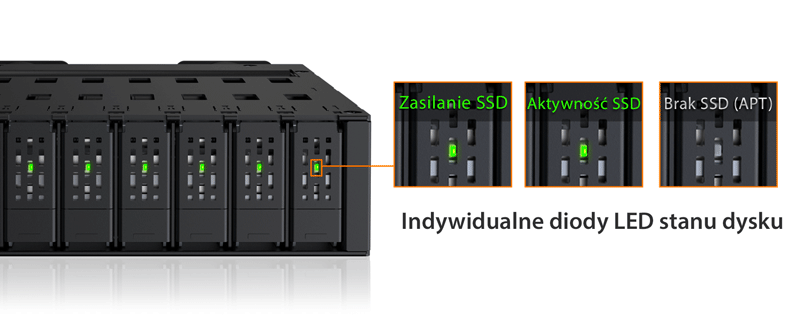

| SSD Access Indicator : | Device power: solid green Device activity: flashing green Empty: LED off |
| Fan Type : | 2 x 40*40*20mm fan |
| Hot Plug : | Yes |
| Structure : | Full metal |
| Package Content : | Device, user manual, screws |
| Dimension (W x H x D) : | 145.8 x 41.3 x less than 195mm |
| Weight : | 900g(TBD) |
