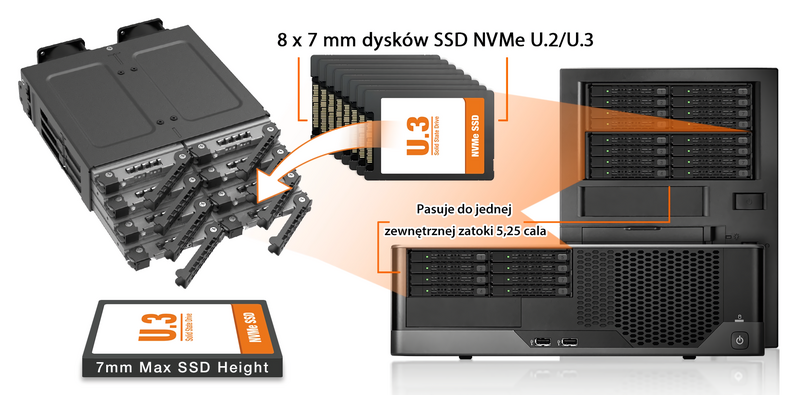

| • | Accommodates 8x U.2/U.3 PCIe NVMe SSDs, supporting a maximum drive height of 7mm. |
| • | Fits any standard external 5.25" optical drive bay. |

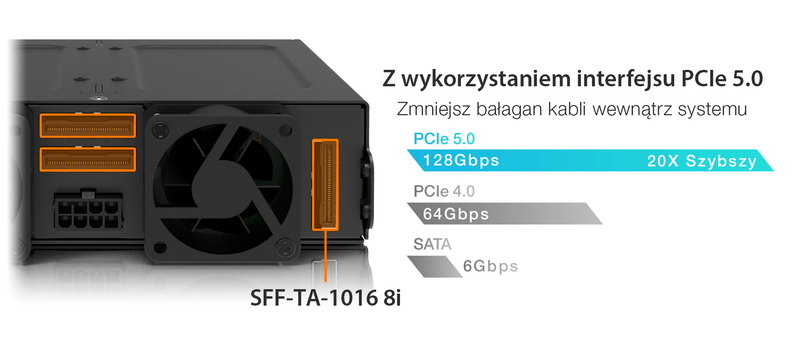

| • | Utilizes 4x MCIO 8i (SFF-TA-1016 8i) connectors for 8x U.2/U.3 SSDs. |
| • | Delivers PCIe 5.0 speeds with transfer rates up to 128Gb/s per drive bay. |

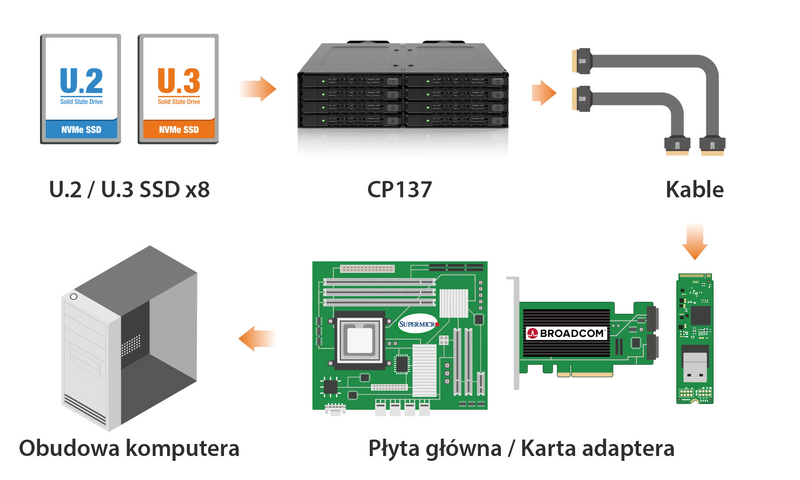

| • | Compatible with Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more). |

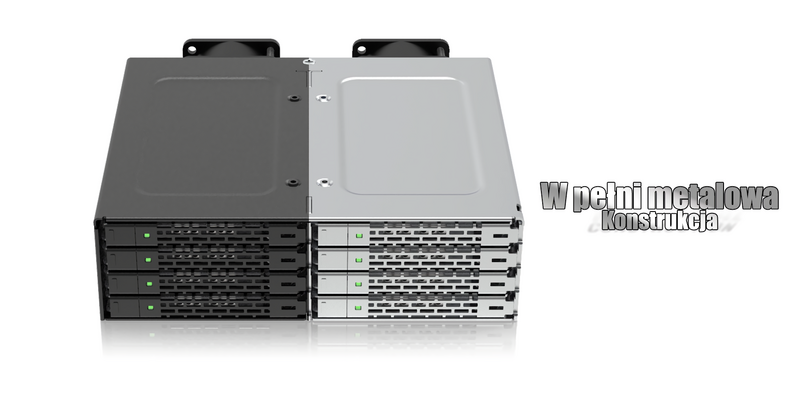

| • | Rugged full-metal enclosure meeting flammability standards. |

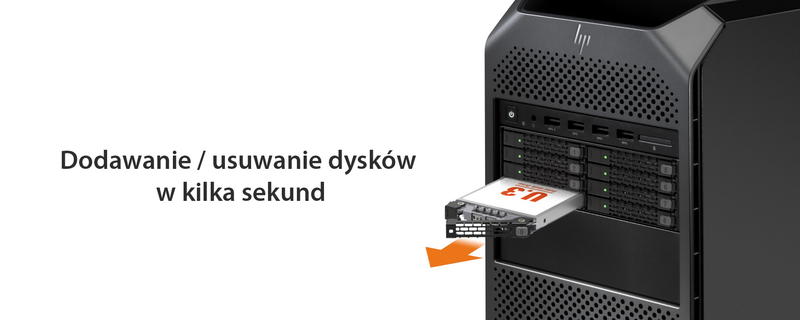

| • | Removable tray system for simplified maintenance. |

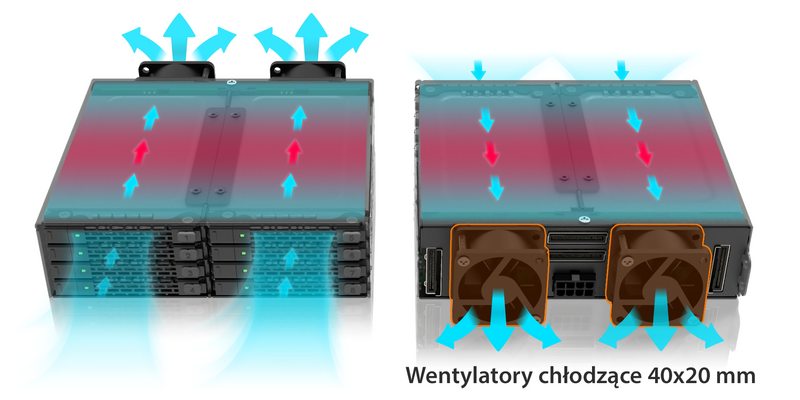

| • | Dual high-performance 40x20mm cooling fans |
| • | Eagle-hook tray latch for secure drive placement. |

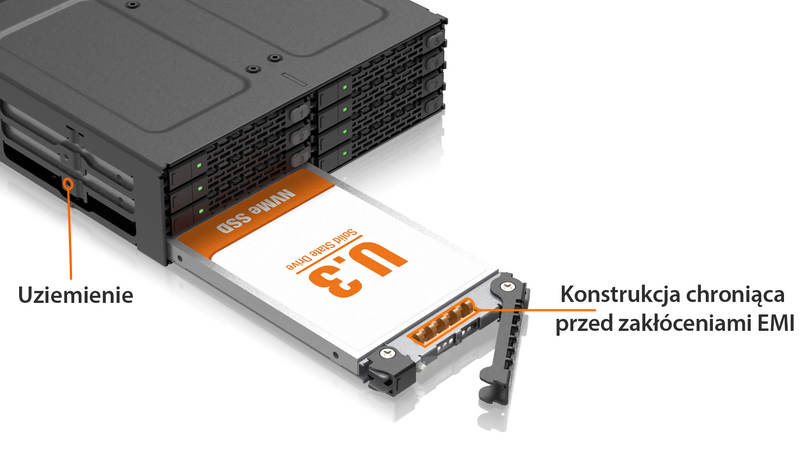

| • | EMI Grounding technology to protect SSDs from electrical damage. |

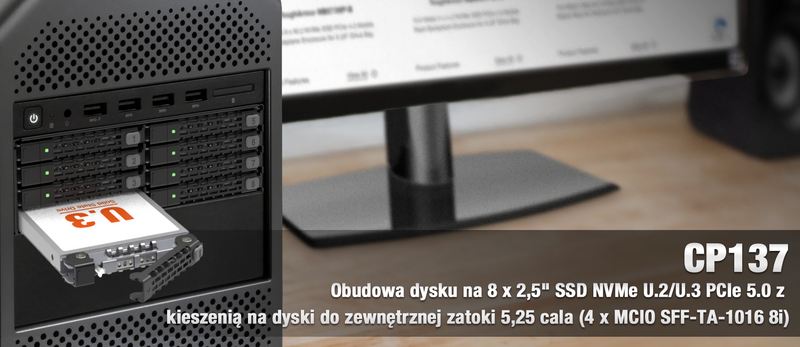

| Model Number : | Concept Product CP137 |
| Colors : | Black |
| Support Drive Size : | 2.5" (up to 7mm height) |
| Compatible Drive Type : | U.2 / U.3 |
| Number of Drives : | 8 |
| Max Drive Height : | 7mm |
| Drive Bay : | 5.25" bay |
| Host Interface : | 4 x MCIO 8i (SFF-TA-1016 8i), pin-out defined by SFF-9402 Rev 1.1 (Tri-mode HBA/RAID card compatible) |
| Power Input : | 1 x 8 Pin PCI Express power connector |
| Transfer Rate : | Up to 128Gbps (depending on SSD speed) |
| Support SSD Capacity : | No limitation |
| Drive Cooling : | 2 x 40x40x20mm ball bearing fan |
| Structure / Material : | Full metal |
| Hot Plug : | Yes |
| Product Dimension (W x H x D) : | 146 x 41.3 x 150mm |
| Product Net Weight : | (TBD) |
| Package Gross Weight : | (TBD) |

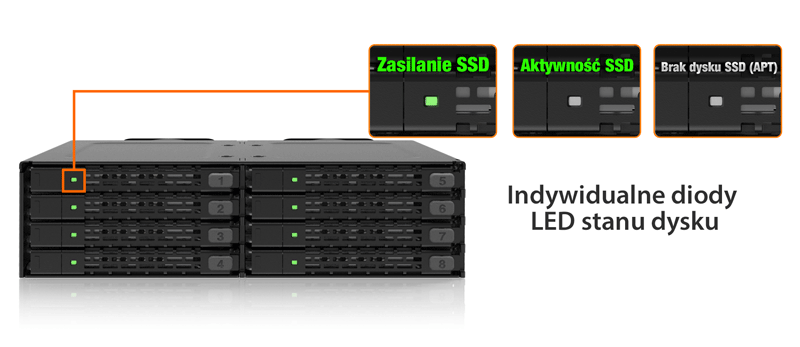

| Drive Activity LED Indication : | Power: solid green ; Drive access : flashing green |
