| • | Supports 1 x 7.5mm height E3.S NVMe SSD |

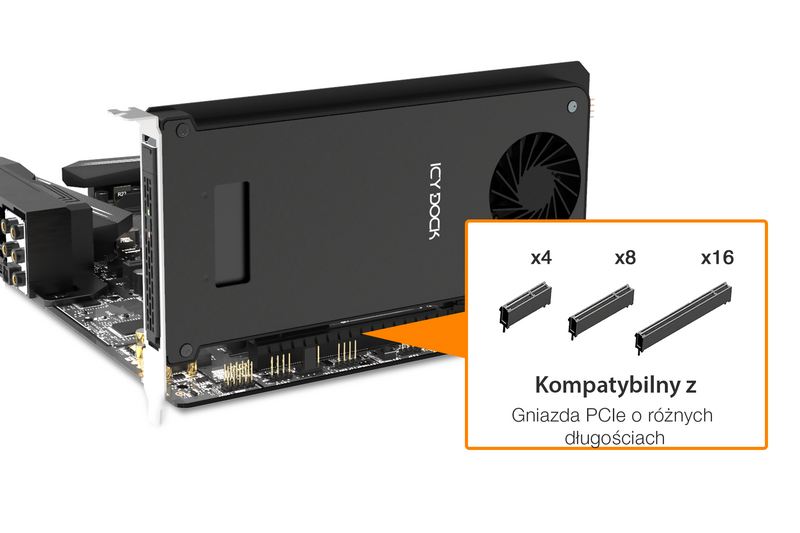

| • | Compatible with PCIe x4/ x8 /x16 Slot |
| • | Supports PCIe Gen 5.0 x 4 speed up to 128Gbps |

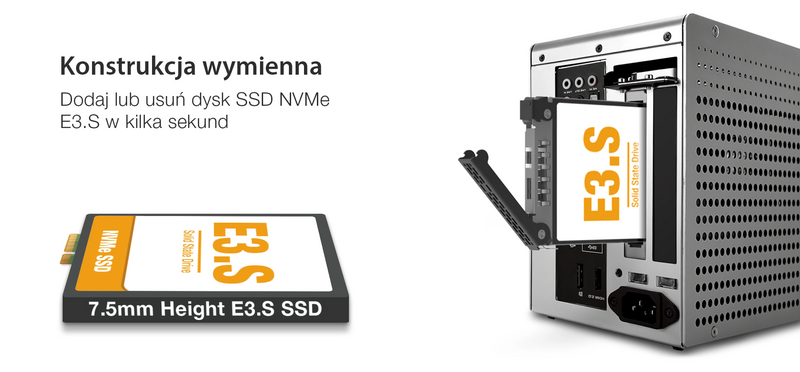

| • | Removable SSD caddy design for quick drive maintenance and replacements |
| • | Supports drive hot-plug without requiring the system to be powered down |
| • | Includes a 50mm frameless fan for effective heat dissipation |
| • | Active Power Technology (APT) – drive activity LED only powers up if there is a drive installed in the bay |
| • | Optional 4-pin drive activity signal output - allows for easy transfer of the drive activity signal to the front of the computer case (cable not included) |
| • |
EMI Grounding – protects SSD from electrical damage |
| • |
Narrow design allows for multiple bays to be installed side-by-side in a modular design |
| Model Number: | CP138 |
| Colors: | Black |

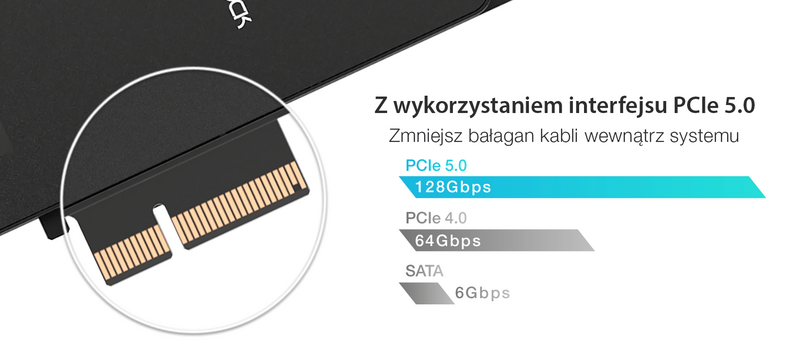

| Host Interface: | 1 x PCIe 5.0 x 4 Golden Finger |
| Drive Fit: | 1 x E3.S SSD (up to 7.5mm height) |
| Device Fit: | 1 x single PCIe x4 slot |
| Maximum Transfer Rate: | PCIe 5.0 x4 up to 128Gb/s (depending on SSD speed) |
| Power Input: | Via PCIe slot |

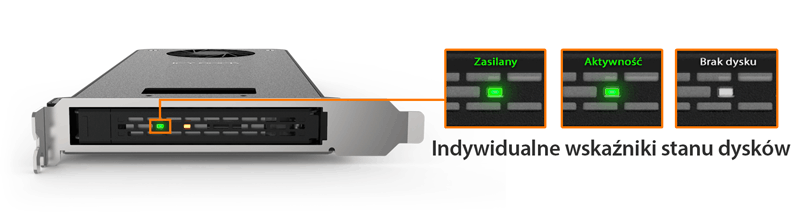

| SSD Access Indicator : |
Green: LED (device power: solid green; Device access: flashing Green) |
| Fan Type: | 1 x 50mm frameless fan |
| Package Content: | Device, User Manual, Screws |

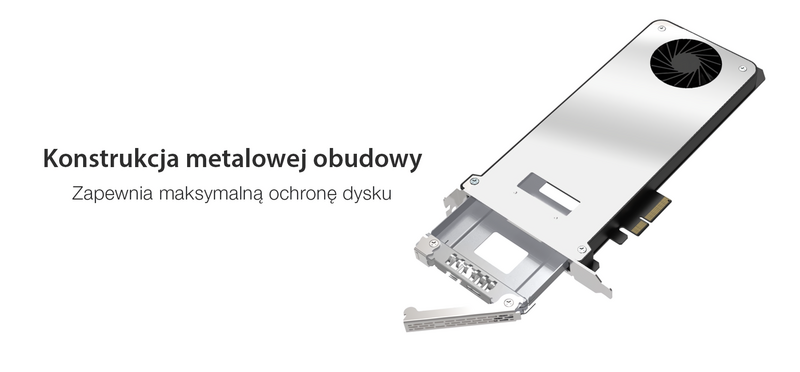

| Structure: | Metal IO bracket/cover with PCBA and plastic shield |
| Dimension (W x H x D) : | 121.1 x 21.6 x 210.5mm |
| Weight: | (TBD) |
