Ideal for use in server environments, such as tower or rackmounts for data backups, storage and drive maintenance
|
• |

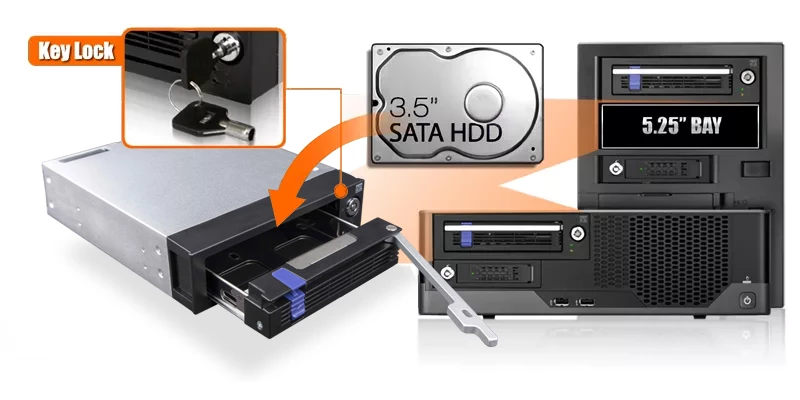

Device stores a single 2.5" or 3.5" SATA III 6Gbps drive and fits most standard external 5.25" bay
|
• |
Supports SATA 3.0 6Gbps / SAS 3.0 12Gbps (single channel)
|
• |
Hard drive power and activity LED indicators for essential drive status
|
• |

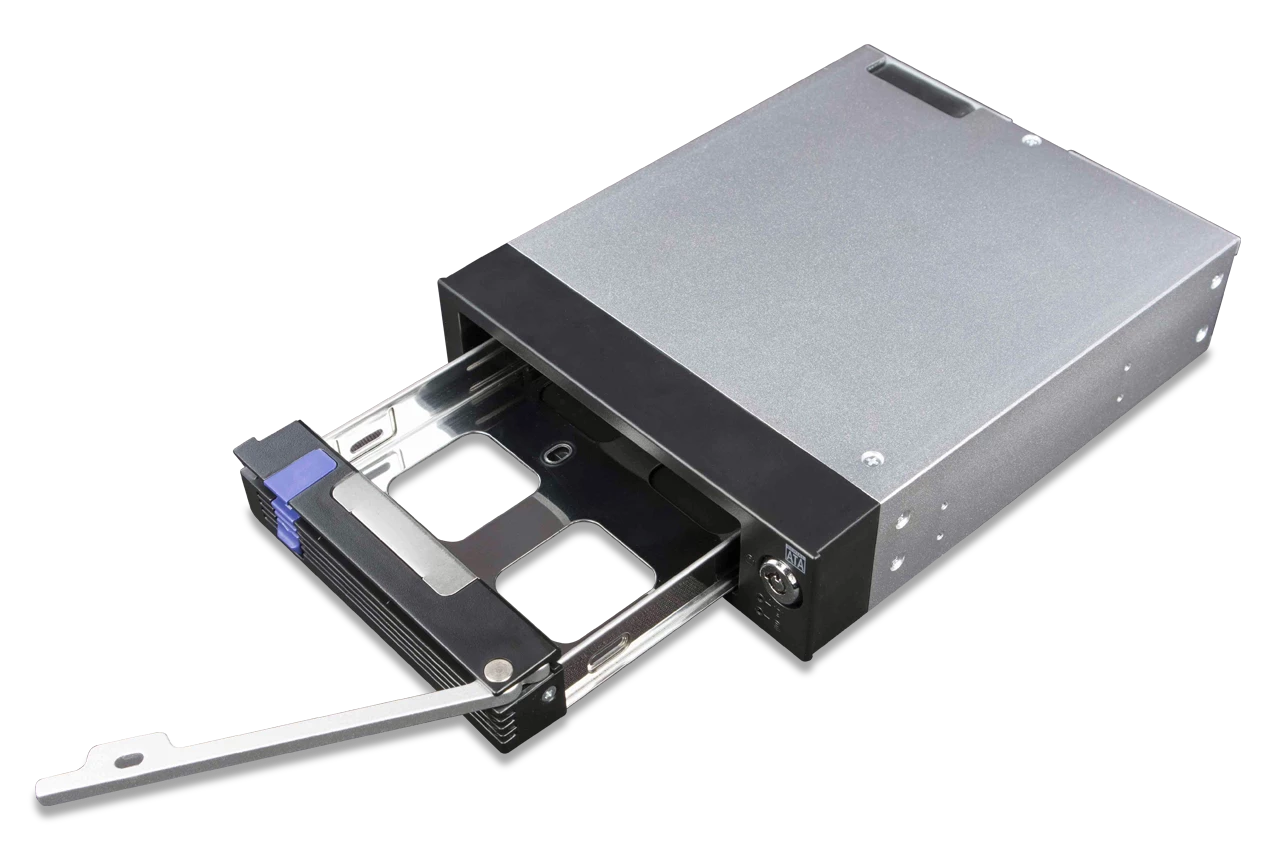

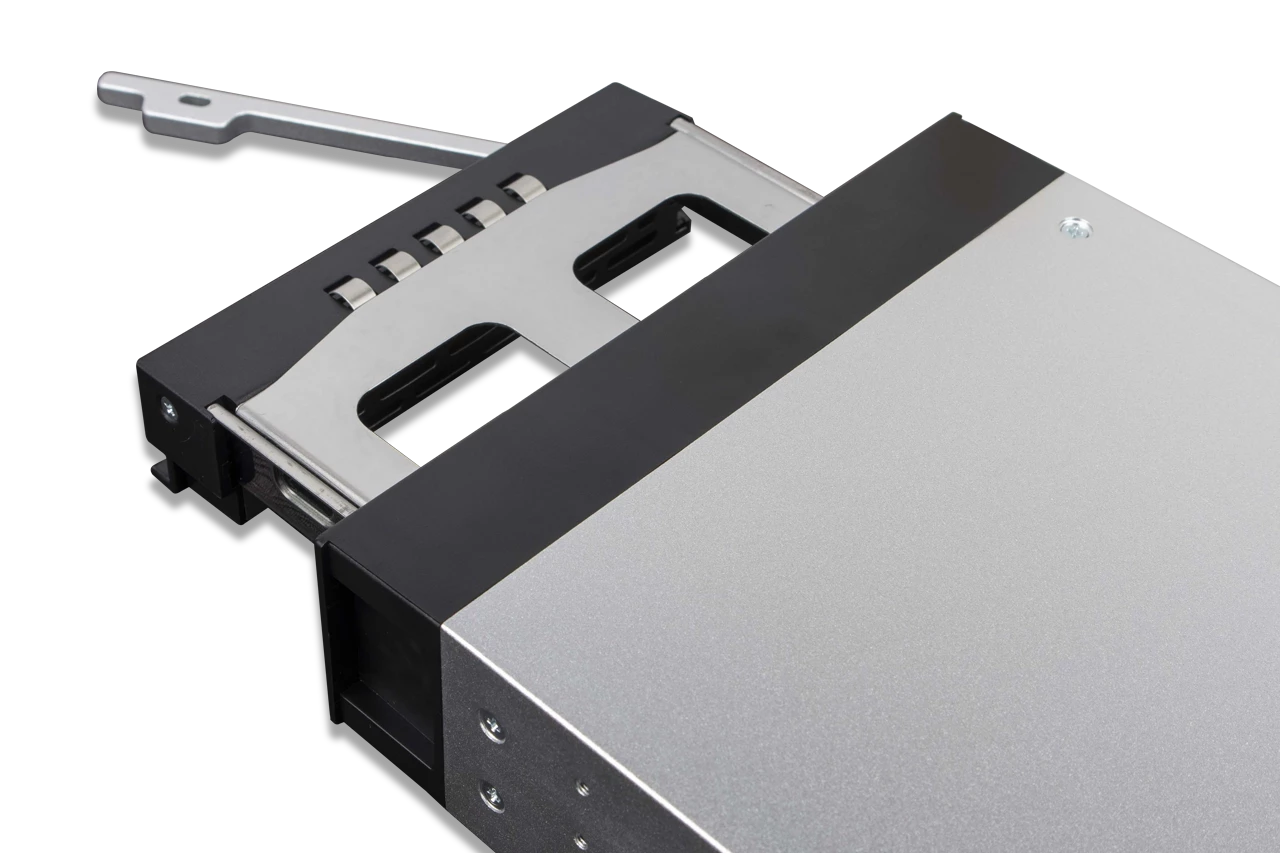

Removable EZ-Tray system and hot swap capability offers convenient solution for multi-drive exchangeability & maintenance. Compatible with FatCage MB15X, DataCage Classic MB45X, ICYBento, MB559 & ICYCube MB561 series
|
• |
Safeguard key lock function keeps data secure within the enclosure during operation
|
• |
Full aluminum body construction provides superior heat dissipation
|
• |
40mm rear warm air outtake fan ensures an optimal cooling environment
|
• |
Vented front panel allows for maximum air circulation
|
• |
Anti-Dust Flap protects system internals
|
• |
ICY DOCK 3 year warranty equivalent to hard drive manufacturer warranty to ensure maximum reliability and long life
|
Model Number: | MB876SK-B |
Color: | Black |
Support Drive Size: | 2.5" & 3.5" SSD / HDD |
Compatible Drive Type: | SATA / single channel SAS (SAS host required) |
Number of Drives: | 1 |
Max Drive Height: | 2.5":9.5mm 3.5" :26.1mm |
Drive Bay: | 1 x external 5.25" drive bay |
Host Interface: | 1 x SATA 7pin |
Power Input: | 1 x 4 pin Molex power connector |
Transfer Rate: | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
Support HDD Capacity: | No limitation |
Drive Cooling: | 1 x 40mm fan |
Structure / Material: | Aluminum body with partial plastic |
Support Hot-Swap: | Yes |
Drive Security: | 2 segments key lock |
Product Dimension (L x W x H): | 183.8 x 148.4 x 42mm |
Product Net Weight: | 623g |
Package Gross Weight: | 700.6g |
Drive Activity LED Indication: | Drive power: solid green; HDD access: flashing orange |

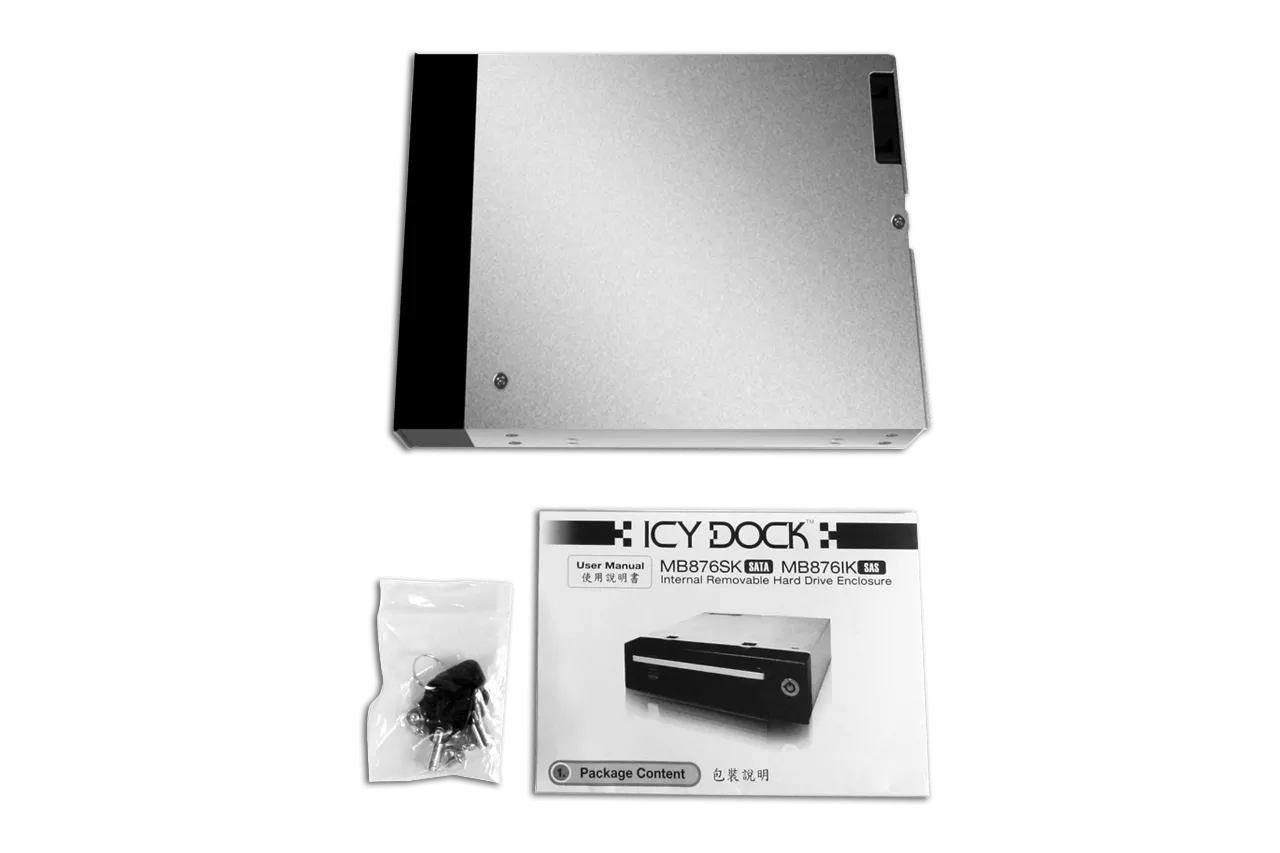

Package Contents: | 1 - device, 1 - user manual, 12 - screw, 2 - key |
SATA Connector Insertion Rate: | 10,000 |
Humidity: | 5%~65% RH |
Operating Temperature: | 0°C to 60°C (32°F to 140°F) |
Storage Temperature: | -35°C to 70°C (-31°F to 158°F) |
Compliance: | CE, RoHS, REACH |
Warranty: | 3 years |
Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q: After installing a drive in the MB876SK-B, the LED indicator does not flash orange when accessing data but remains solid green. What could be the cause and what is the solution?
A: The MB876SK-B is designed according to the standard signal specifications for SSDs/HDDs and is compatible with the vast majority of drives on the market. However, differences in voltage settings for some specific drives may cause the LED indicator to remain solid green during data read/write operations. This situation will not affect the performance or lifespan of the hard drive, so please use it with confidence. If the hard drive reading indicator light is a necessary feature, consider using other brands and models of drives. Additionally, refer to the list below reported by users of drives that have this issue to avoid using those models with this product.
Brand Name | Series | Model | Drive Type |
Seagate | Barracuda | ST5000LM000 ST4000LM024 ST3000LM024 |
2.5" 15mm SATA |
