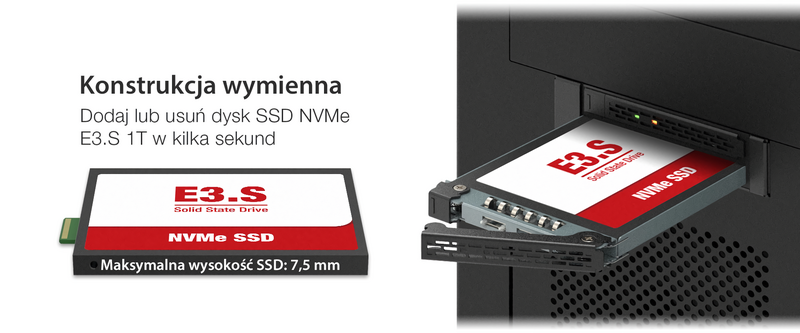

| • | Fits 2x E3.S 1T NVMe SSDs up to 7.5mm height |

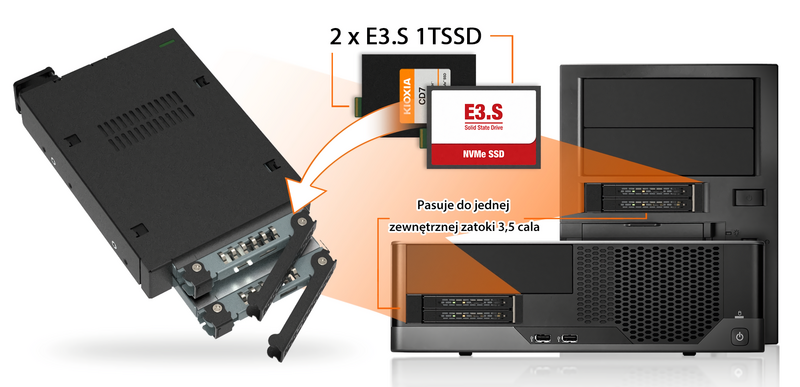

| • | Installs into standardized external 3.5” device bay (floppy bay) |

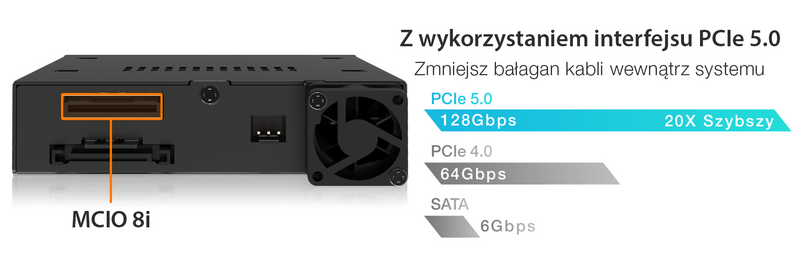

| • | Uses a MCIO 8i connector, supporting PCIe 5.0 x4 with transfer speeds up to 128GB/s |
| • | Supports hot-plug functionality for E3.S 1T SSD (dependent on host environment) |
| • | Comes equipped with a 25mm fan, which can be replaced without disassembling the entire unit |

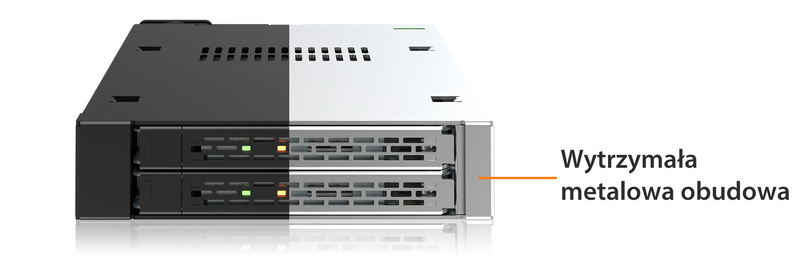

| • | Ruggedized full-metal enclosure and drive trays |
| • | Features soft green, amber, and blue LED indicators for clear drive power and activity status |
| • | Eagle-hook tray latch securely holds the tray inside the enclosure |
| • | EMI Grounding – protects SSDs from electrical damage |
| • | Active Power Technology (APT) – saves power by shutting down when no drives are installed |
| Model Number : | CP139 |
| Available Color : | Black |
| Host Interface : | 1 x MCIO 8i (SFF-TA-1016) |
| Drive Fit : | 2 x EDSFF E3.S 1T SSD (up to 7.5mm height) |
| Device Fit : | 1 x 3.5" drive bay |
| Maximum Transfer Rate : | PCIe 5.0 x4 up to 128Gbps per SSD |
| Power Input : | 1 x 15pin SATA power connector |
| SSD Access Indicator : | Green LED: Drive power: solid green, drive access: flashing green Amber LED: Function is defined by host Blue LED: Function is defined by host LED off: Empty drive bay |
| Fan Type : | 1 x 25mm fan |
| Structure : | Full metal |
| Package Contents : | Device, user manual, screws |
| Dimension (W x H x D) : | 101 x 26 x 163mm |
| Weight : | TBD |
