Produkt koncepcyjny CP141
2 x U.2/U.3 PCIe 5.0 SSD and Slim Optical Drive Mobile Rack Enclosure for 5.25” Bay
Szczegóły Produktu
CP141 to produkt koncepcyjny oparty na sugestiach klientów. Choć jego premiera nie jest jeszcze zaplanowana, przy wystarczającym wsparciu klientów i szczegółowych opiniach, zamierzamy wprowadzić go na rynek. Twoje spostrzeżenia mają kluczowe znaczenie dla kształtowania tego produktu i potwierdzenia zapotrzebowania rynku. Prosimy o podzielenie się swoimi przemyśleniami i pożądanymi specyfikacjami, klikając poniższe ikony lub dołączając do dyskusji na naszym forum. Twój wkład pomoże przekształcić tę koncepcję w rzeczywistość!
feedback Join the discussion All concept products
  • Introducing the concept product CP141 – a ruggedized mobile rack enclosure that effortlessly upgrades traditional 5.25” optical disk drive spaces to accommodate two hot-plug drive bays for U.2/U.3 NVMe SSDs. This innovative solution also supports a slim optical disk drive device (12.7mm), including CD/DVD, Blu-ray, and HDD/SSD to Slim ODD adapters. Crafted entirely from metal, the CP141 is suited for demanding environments with fire-resistant qualities. Its removable U.2/U.3 and Slim ODD drive caddy allow for quick maintenance and drive replacement without opening the computer case. Featuring an MCIO 8i (SFF-TA-1016 8i) port, the CP141 supports PCIe 5.0 U.2/U.3 NVMe SSDs, offering transfer speeds up to 128Gbps. Ideal for military, medical, industrial production, and video editing applications that require high-speed storage and optical disk drive capabilities.
  • Optimizing Storage Density

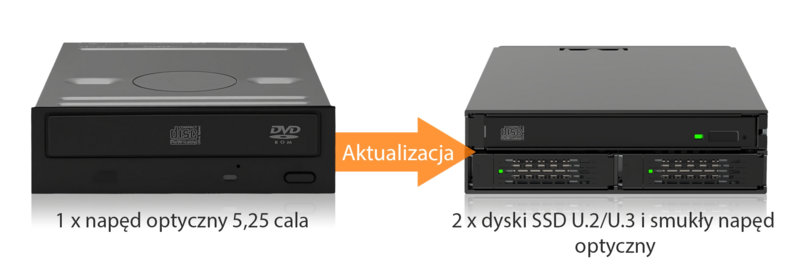

    The high-density design of the concept product CP141 efficiently accommodates two U.2/U.3 NVMe SSDs, up to 7 or 15mm in height, alongside a slim optical disk drive in a single 5.25” drive bay. This configuration is ideal for space-constrained environments like powerhouse PCs, portable military workstations, and rackmount industrial PCs.
  • Versatility is the Key

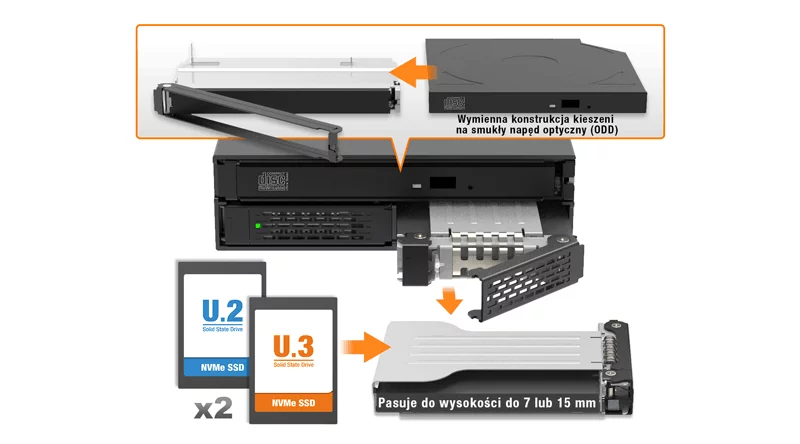

    Experience seamless functionality with the CP141, designed for swift and uninterrupted operation. The CP141 features a state-of-the-art caddy system that directly connects U.2/U.3 SSDs and slim optical disk drive to the backplane, enabling *hot-plug capability without the need to power down or open the computer case. This design ensures optimal operational efficiency and ease of maintenance, making drive upgrades and replacements quick and effortless, while maintaining a compact form factor.

    **Note: Hot-plug functionality requires compatible system and drive support.
  • Engineered for Durability
    CP141 is engineered with a rugged, full-metal build, ensuring durability in the most demanding environments. This robust construction is ideal for military, medical, and industrial applications, including use in avionics and heavy machinery, where non-flammability and structural integrity are critical.

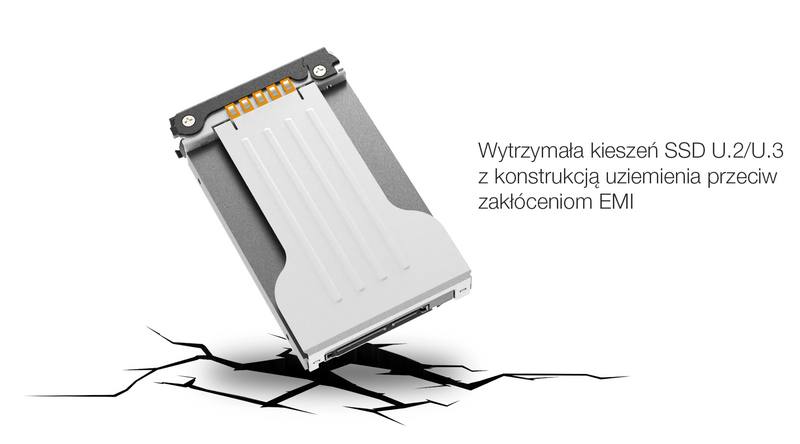

  • For superior protection, the U.2/U.3 and Slim ODD caddies are robustly constructed from metal, safeguarding your valuable drives. These caddies feature an EMI grounding mechanism designed to stabilize the operational environment, protecting against electromagnetic interference and preventing electrostatic discharge during drive insertion or removal. This enhances the safety and durability of your storage devices.
  • For enhanced drive security, the eagle-hook latch ensures your drives are held securely during use. Its innovative design allows for easy ejection, similar to pressing a button, preventing accidental tray ejection and ensuring smooth operation.
  • Packed with Features

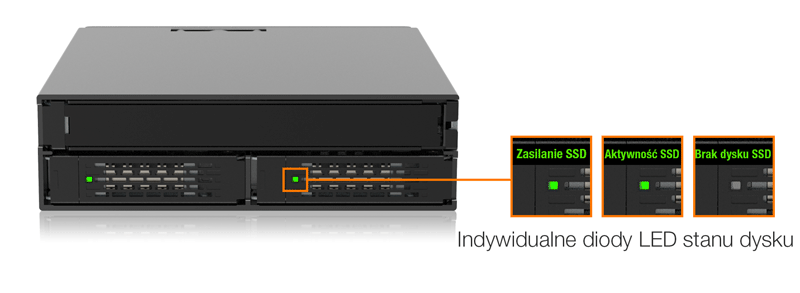

    Each U.2/U.3 SSD bay is equipped with individual LED indicators that provide real-time status updates on your drives. These lights promptly alert you to whether your drives are powered on or actively in use, offering a quick visual reference to monitor drive activity effortlessly.

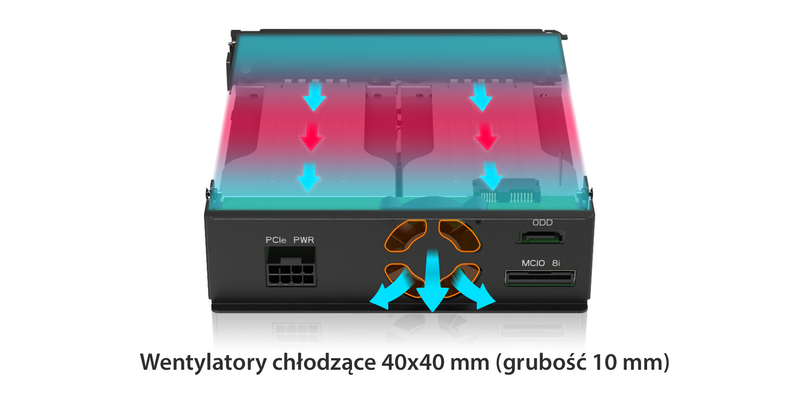

  • Equipped with a high-performance 40mm cooling fan, this unit ensures optimal heat dissipation. Together with strategically placed ventilation holes in the caddy and chassis, it maintains the drives at their ideal operating temperatures, enhancing reliability and performance.
Cechy główne
Durable construction using heavy-duty metal, ideal for demanding environments in medical, industrial, and military applications
Meets stringent flammability standards, ensuring safety across various sectors
Accommodates two U.2/U.3 PCIe 5.0 SSDs, up to 15mm in height, and one slim optical disk drive (12.7mm)
Supports fast PCIe 5.0, enabling speeds up to 128Gbps for quick data transfer
Features a removable caddy system for U.2/U.3 and slim optical disk drives, simplifying maintenance
Includes a high-performance 40mm cooling fan to regulate drive temperatures effectively
Ventilation holes throughout the caddy and chassis provide superior passive cooling
Incorporates Active Power Technology (APT), which activates individual LED indicators and the cooling fan only when drives are present, conserving energy and reducing wear




Model Number : CP141 (Concept Product)
 Colors : Black
Support Drive Size : 2.5" (up to 15mm height)
Compatible Drive Type : U.2/U.3 NVMe SSD; Slim ODD
Number of Drives : 2x 2.5" U.2/U.3 NVMe SSD; 1x Slim ODD
Drive Bay : 5.25" Drive Bay
Host Interface : 1x MCIO 8i; 1x SATA 7 Pin
Power Input : PCIe 6 Pin
Transfer Rate : PCIe 5.0 x4 up to 128Gbps
Support SSD Capacity : No limitation
Drive Cooling : 1x 40x40x10mm fan
Structure / Materia : Full metal
Hot Plug : Yes
Product Dimension (W x H x D) : 170*146*41.3mm
Product Net Weight : 750g
Package Gross Weight : 823g
Drive Activity LED Indication : Drive power: solid green; SSD access: flashing green
Package Contents : Device, user manual, screws
Connector Insertion Rate : 10,000
Humidity : 5%~65% RH
Operating Temperature : 0°C to 60°C (32°F to 140°F)
Storage Temperature : -35°C to 70°C (-31°F to 158°F)
Compliance : CE, RoHS, REACH
Warranty : 5 years limited warranty

Compatible Drive Tray (Caddy):

  • MB991TRAY-B
