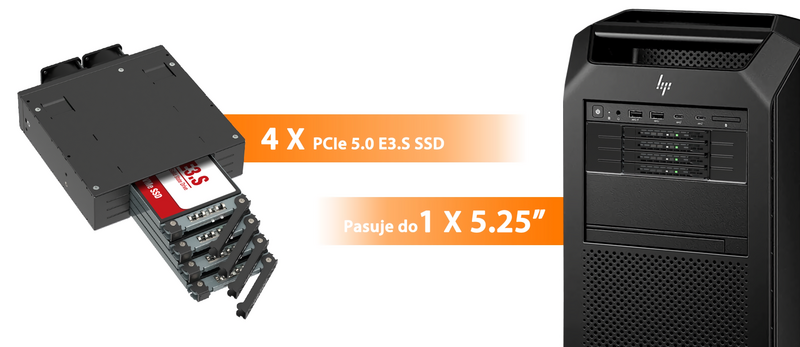

Supports 4 x 7.5mm E3.S NVMe SSDs
|
| • |
Fits into a single external 5.25" optical drive bays
|
| • |

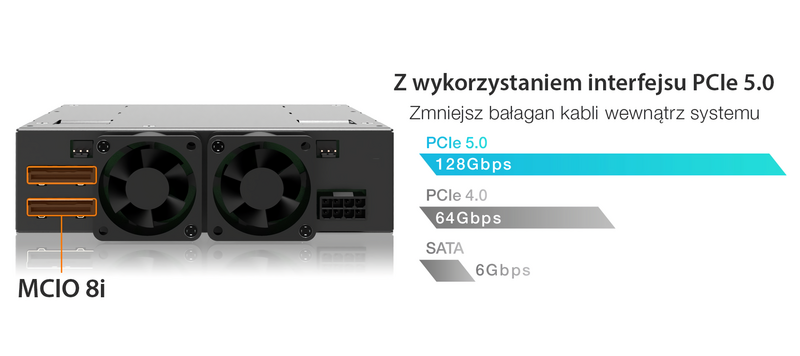

Connects via 2 x MCIO 8i (SFF-TA-1016 8i) interfaces
|
| • |
Supports NVMe hot-plug function (requires hot-plug support from both host and SSD)
|
| • |
Complies with PCIe 5.0 specifications, offering transfer rates up to 128Gbps per drive bay
|
| • |

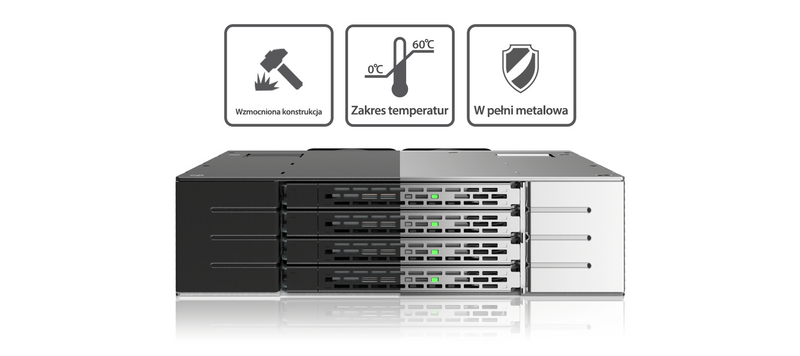

Durable, full-metal enclosure meets flammability standards
|
| • |

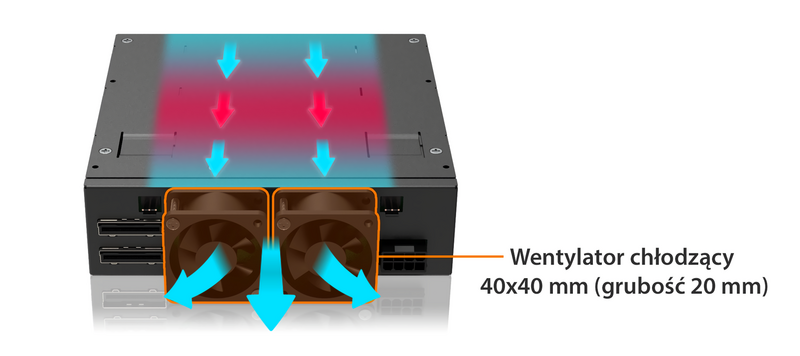

Equipped with dual high-performance 40 x 40 x 20mm cooling fans
|
| • |

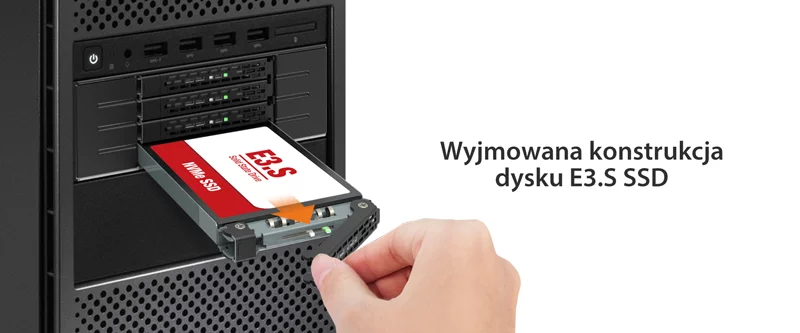

Removable drive tray design for easy drive maintenance
|
| • |
Active Power Technology - Saves power by shutting off the enclosure when no drive is installed
|
| • |
EMI Grounding - Protects SSDs from electrical damage
|
| • |
Eagle-hook tray latch - Securely holds the drive tray inside the enclosure
|
| Model Number : | CP145 |
| Color : | Black |
| Support Drive Size : | E3.S 1T SSD (up to 7.5mm height) |
| Compatible Drive Type : | E3.S 1T SSD (up to 7.5mm height) |
| Number of Drives : | 4 |
| Drive Bay : | 5.25" drive bay |
| Host Interface : | 2x MCIO 8i (SFF-TA-1016) |
| Power Input : | 1x PCIe 8 Pin |
| Transfer Rate : | PCIe 5.0 x4 up to 128Gbps (depending on SSD speed) |
| Support SSD Capacity : | No limitation |
| Drive Cooling : | 2x 40*40*20mm Fan |
| Structure / Materia : | Full Metal |
| Hot Plug : | Yes |
| Product Dimension (W x H x D) : | 146 x 41.3 x 160 mm (TBD) |
| Product Net Weight : | 900g (TBD) |
| Package Gross Weight : | 1000g (TBD) |

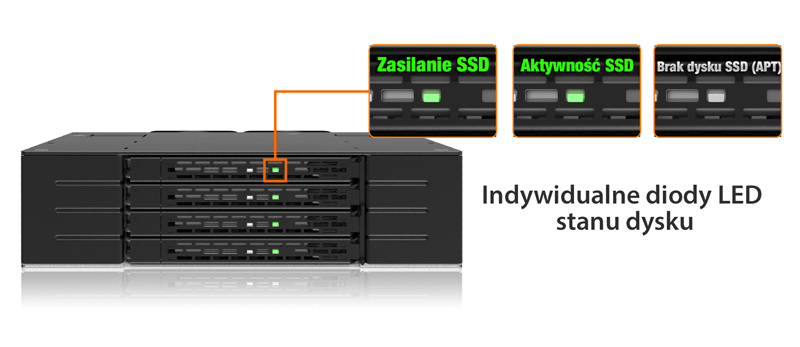

| Drive Activity LED Indication : | Green LED: drive power: solid green, drive access: flashing green Amber LED: function is defined by host Blue LED: function is defined by host LED off: empty drive bay |
| Package Contents : | Device, user manual, screws |
| Connector Insertion Rate : | 10,000 |
| Humidity : | 5%~65% RH |
| Operating Temperature : | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature : | -35°C to 70°C (-31°F to 158°F) |
| Compliance : | CE, RoHS, REACH |
| Warranty : | 5 years |
