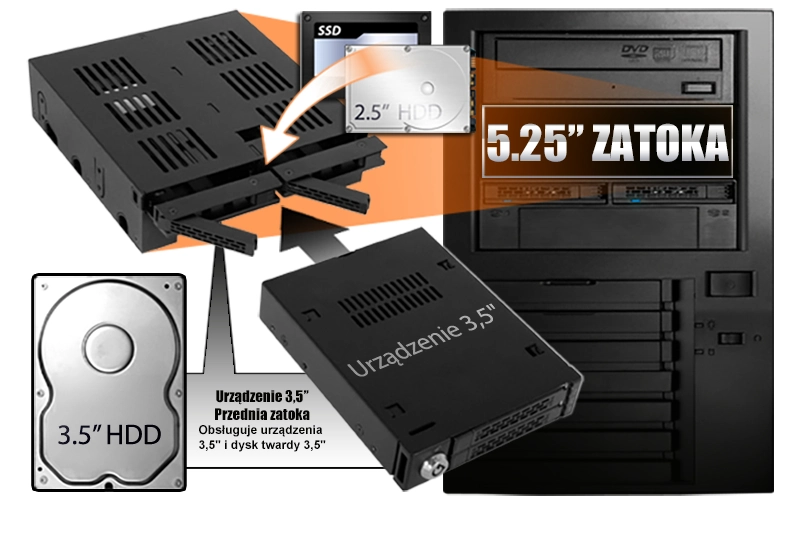

| • | Mieści 2x 2,5” HDD/SSD SATA/SAS i 3,5” HDD/urządzenie |
| • | Obsługuje 2,5” HDD/SSD SATA/SAS o wysokości 7-9,5 mm |
| • | Obsługuje SATA 6 Gbps lub jednokanałowy SAS 4.0 24 Gbps (wymaga hosta SAS) |
| • | Active Power Technology (APT) – włączone zasilanie tylko, gdy wewnątrz znajduje się dysk |

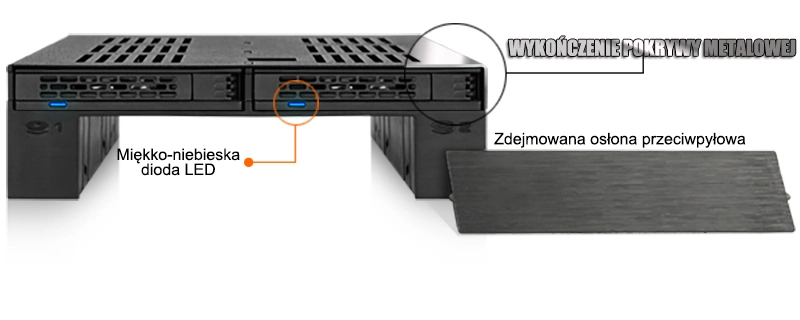

| • | Delikatne, niebieskie diody LED dla każdego 2,5” dysku |
| • | Zdejmowana 3,5” pokrywa przeciwpyłowa chroni przed zanieczyszczeniami |
| • | Detachable dust cover for 3.5” slot to keep debris from entering your system |
| • | Wzmocniona taca i metalowa obudowa dla maksymalnej trwałości |

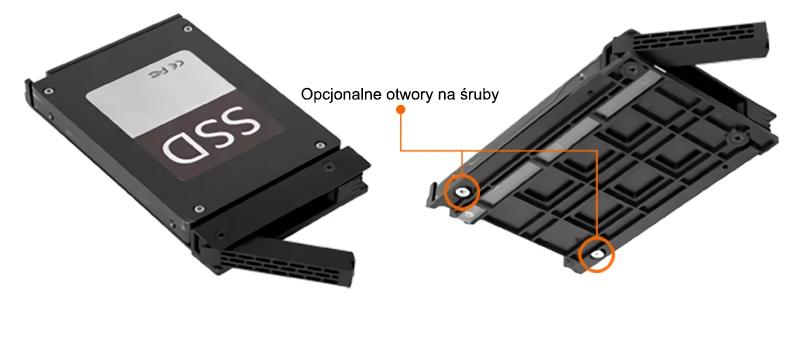

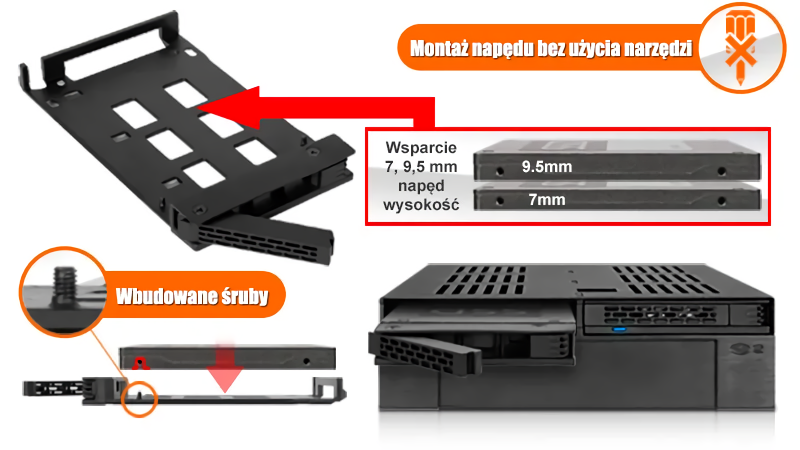

| • | System montażu ExpressTray Mini dla łatwej i beznarzędziowej instalacji 2,5” HDD/SSD |
| • | Liczne otwory wentylacyjne dla rozszerzonego chłodzenia |
| • | Zatrzaski zaprojektowane dla 7-pinowych złącz SATA |

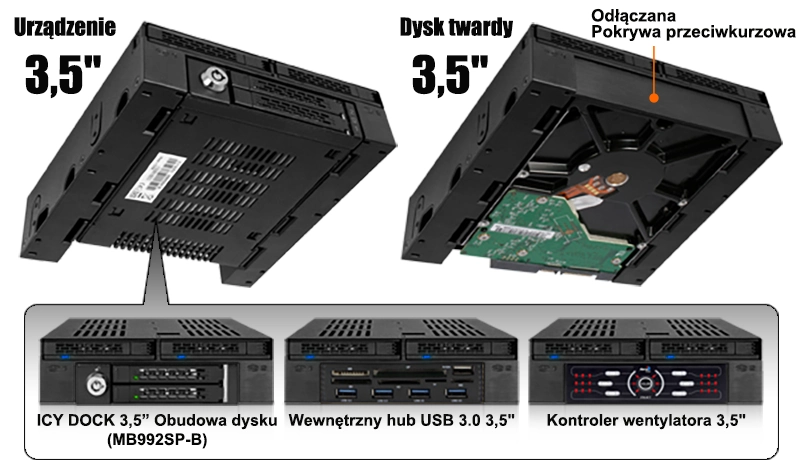

| • | Kompatybilny z naszą linią 3,5” mobilnych półek np. MB991SK-B i MB992SK-B |
| • | Przeznaczony dla zaawansowanych użytkowników |
| Model Number： | MB322SP-B |
| Color： | Black |
| Support Drive Size： | 2 x 2.5" SSD / HDD &1 x 3.5" HDD/device |
| Compatible Drive Type： | SATA / single channel SAS (SAS host required) |
| Number of Drives： | 3 |
| Max Drive Height： | 2.5": 9.5mm / 3.5": 26.1mm |
| Drive Bay： | 1 x 5.25" half height device bay |
| Host Interface： | 2 x SATA 7pin |
| Power Input： | 1 x SATA 15 pin power connector |
| Transfer Rate： | SATA 3.0 up to 6Gbps / SAS 4.0 up to 24Gbps |
| Support HDD Capacity： | No limitation |
| Structure / Material： | Metal with parital plastic |
| Support Hot-Swap： | Yes |
| Product Dimension (L x W x H)： | 151.1 x 145.8 x 41.3mm |
| Product Net Weight： | 347g |
| Package Gross Weight： | 416g |
| Drive Activity LED Indication： | Drive power: solid green; HDD access: flashing green |
| Package Contents： | 1 - device, 1 - user manual, 20 - screw |
| SATA Connector Insertion Rate：： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q:The mounting screws for the device seem to be too short to secure the device onto my system, what should I do?
A: For computer cases that have a thick metal sheet, the included mounting screws (M3*2.5L) may not fully secure the device. Please use longer screws (M3*4L) to secure the device or contact us at tech@icydock.com for replacement screws.
By AA Computers and Technology
“This is a great solution if the inside of your desktop is tight on space and you are looking to add some additional hard drives / 3.5″ devices. Ease of use is top notch and the price to quality ratio is excellent ”
By DB Tech Vlog

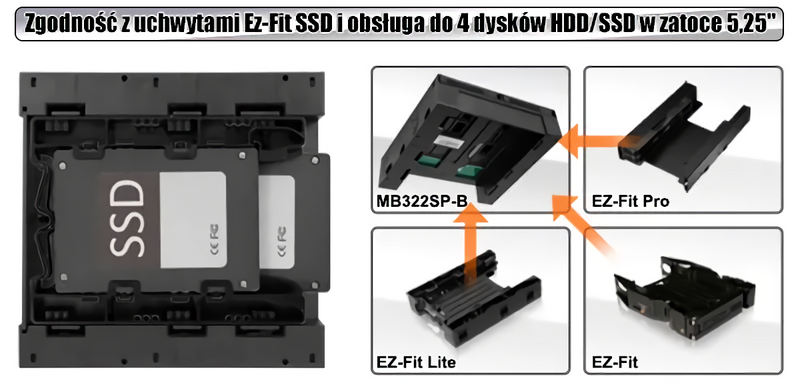

“Today we are going to look at the MB322SP-B 5.25" hard drive bay from ICY DOCK. This device allows you to stick 2X 2.5" HDD's along with a single 3.5" device into a single 5.25" bay within your desktop. The bay can be bought for $26 off Amazon and with the addition of one of ICY DOCKS's 2.5" hard drive bracket adapters it can fit up to 4X 2.5" HDD's. ”
By David McCabe
"Today I've got two cages from Icy Dock. The ICY Dock ToughArmor MB996Sp-6SB and ExpressCage MB322SP-B."
