| Optional Certifications Available for ToughArmor MB411SKO-B | |
| TAA | Trade Agreements Act Compliance |
| UL | Safety Standard Certification |
| UL94 | Flammability of Plastic Materials |
| FCC | Federal Communications Commission Compliance |
| Wide Temperature | MIL-STD-810H - Method 501.7 & 502.7 |
|
*
|

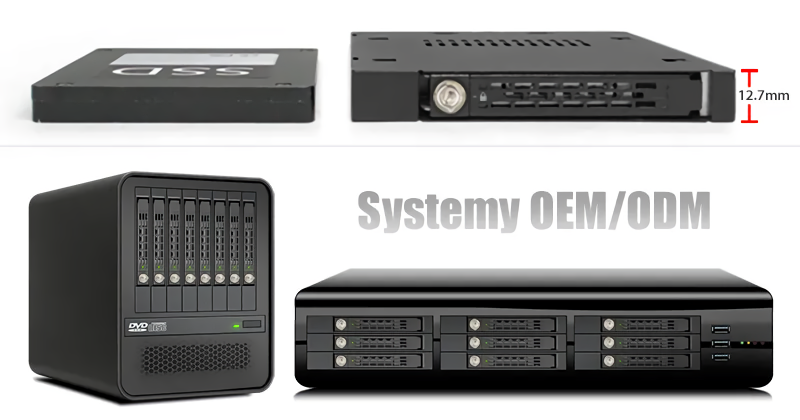

Idealna dla systemu, który ma ograniczoną przestrzeń np. systemy wbudowane, komputery przenośne, rack, systemy regałowe, automatyki przemysłowej, komputery wojskowe i systemy OEM/ODM
|
|
*
|
Wyjątkowo mała konstrukcja obudowy zapewniająca maksymalną oszczędność miejsca
|
|
*
|

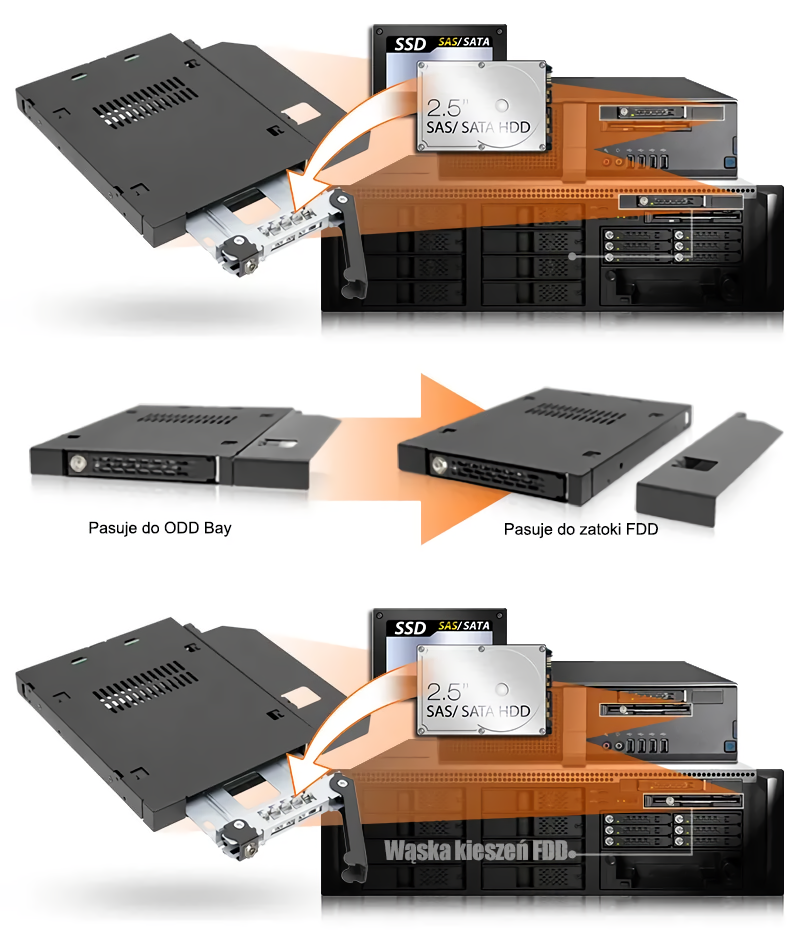

Mieści 1 x 2.5” SAS/SATA HDD/SSD (7-9,5 mm) w 12,7 mm zatoce ODD lub FDD
|
|
*
|
Obsługuje 2.5” SAS (pojedynczy kanał)/SATA HDD/SSD do 6Gbps (dla dysków SAS jest wymagany host SAS)
|
|
*
|

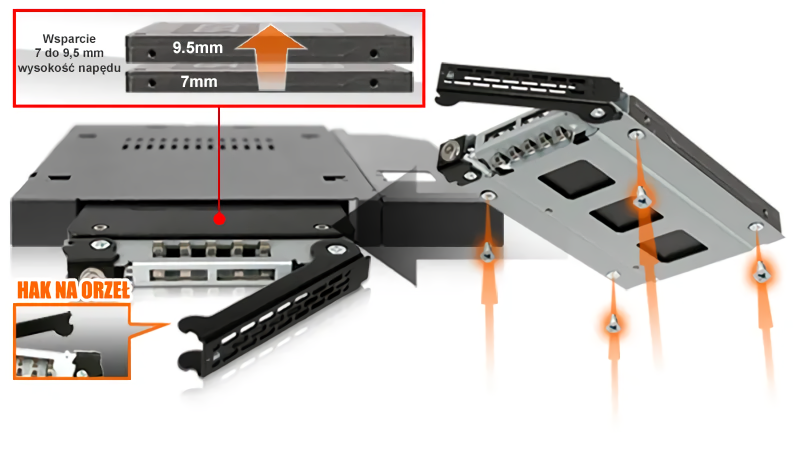

System Eagle Hook & 2-segment klamra zabezpieczają napędy w obudowie
|
|
*
|
Zdejmowana taca EZ Slide Micro dla łatwej konserwacji
|
|
*
|

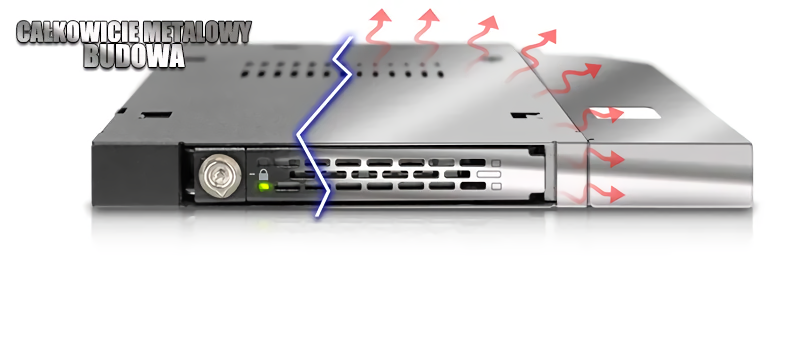

Konstrukcja metalowa o dużej wytrzymałości
|
|
*
|
Technologia Multi-Flow zapewnia doskonałe chłodzenie pasywne
|
|
*
|
Technologia Anti-Vibration tworzy bezpieczne środowisko dla dysków
|
|
*
|
Technologia Active Power (APT) zasila diodę LED tylko wtedy, gdy dysk jest włożony do napędu
|
|
*
|
Uziemienie EMI chroni przed uszkodzenami elektrycznymi
|
|
*
|

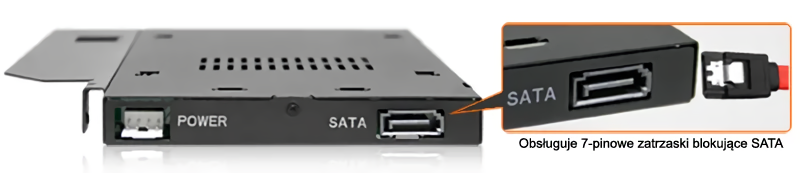

Zatrzask blokujący zaprojektowany dla 7-pinowych portów SATA
|
|
*
|
Porównywalne z Chenbro SK51101 / SK51101T2 Slim
|
| * | Designed for backplane-less Slim ODD bay and uses floppy 4-pin power and 7-pin SATA connections. |
| * | Does not support Laptop and Desktop PC’s slim ODD bay that uses Slimline SATA backplane |
| Model Number： | MB411SKO-B |
| Color： | Black |
| Support Drive Size： | 1 x 2.5" SSD / HDD |
| Compatible Drive Type： | SATA / single channel SAS (SAS host required) |
| Number of Drives： | 1 |
| Max Drive Height： | 9.5mm |
| Drive Bay： | 1 x external slim ODD or slim FDD bay |
| Host Interface： | 1 x SATA 7pin |
| Power Input： | Floppy 4Pin power connector |
| Transfer Rate： | SATA 3,0 up to 6Gbps / SAS 3.0 up to 12Gbps |
| Support HDD Capacity： | No limitation |
| Drive Cooling： | Metal heat dispersion with passive cooling |
| Structure / Material： | Metal with partial plastic |
| Support Hot-Swap： | Yes |

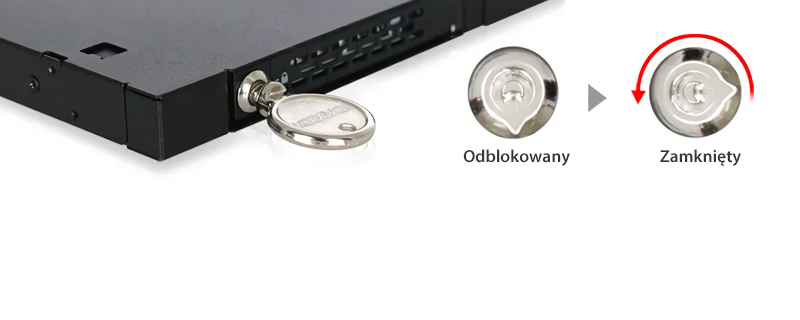

| Drive Security： | 2 segment key lock |
| Product Dimension (L x W x H)： | 129 x 128.1 x 12.7mm(ODD) / 129 x 95.8 x 12.7mm(FDD) |
| Product Net Weight： | 214g |
| Package Gross Weight： | 269.6g |

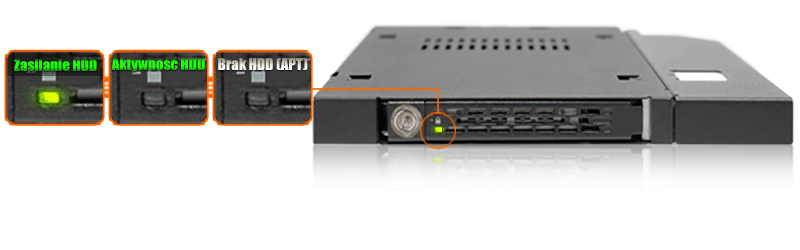

| Drive Activity LED Indication： | Drive power: solid green; HDD access: flashing green |
| Package Contents： | 1 - device, 1 - user manual, 10 - screw, 2 - key |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Opertating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 5 years limited warranty |

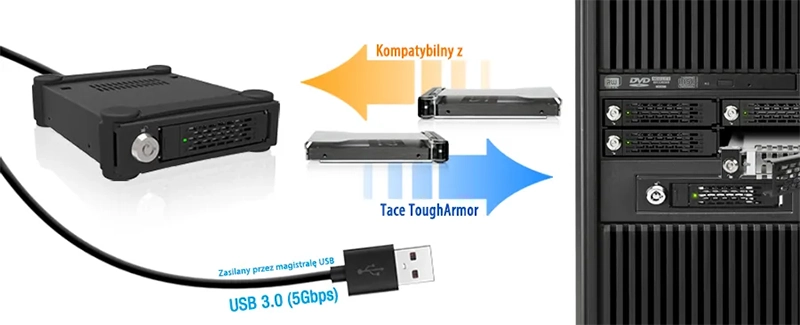

Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q: Which laptops are incompatible with the MB411SKO-B?
A: Due to specific features of laptop design, there are certain models of laptops that are not compatible with the MB411 and MB511 series. One stems from the physical form factor and the other stems from the pinout design of the optical drive bay connector. Regarding the pinout design, there are 4 different pinout design currently in use, referred as A, B, C, D modes. The MB411 and MB511 series uses the C mode of pinout.
As of now, this is the known list of incompatible laptops:
All Lenovo models, Dell M4800, M4801, M6800, HP M7
Not being on the list of incompatible laptops does not guarantee functionality of the MB411 and MB511 series in the laptop. It is best to contact the manufacturer of the laptop to determine optical drive bay pinout design.
