Opcjonalne certyfikaty dostępne dla ToughArmor MB992SK-B | |
TAA | Zgodność z Trade Agreements Act |
UL | Certyfikacja standardów bezpieczeństwa |
UL94 | Palność materiałów z tworzyw sztucznych |
FCC | Zgodność z przepisami Federal Communications Commission |
Szeroki zakres temperatur | MIL-STD-810H - Method 501.7 & 502.7 |
*IEC 60529 (IPX5) | Ochrona przed strumieniami wody |
• |

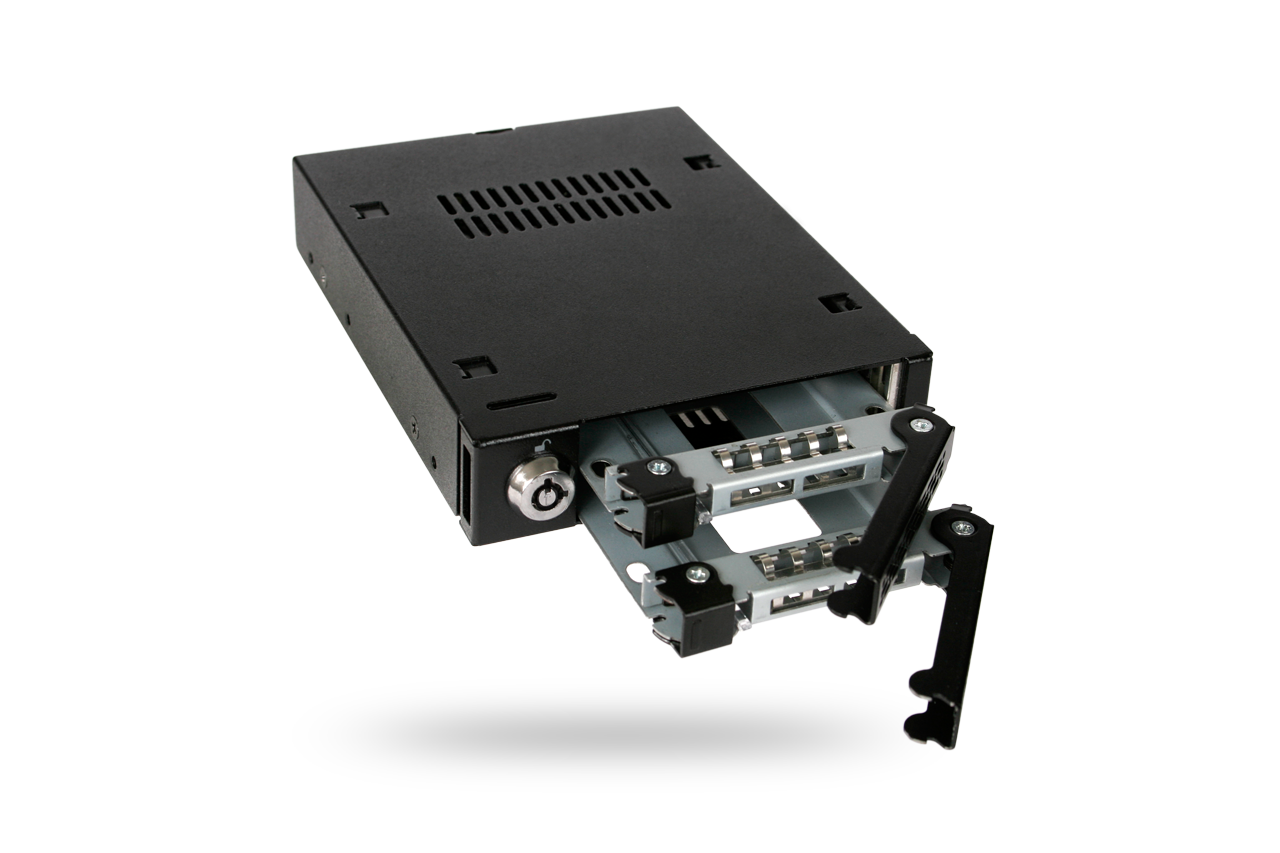

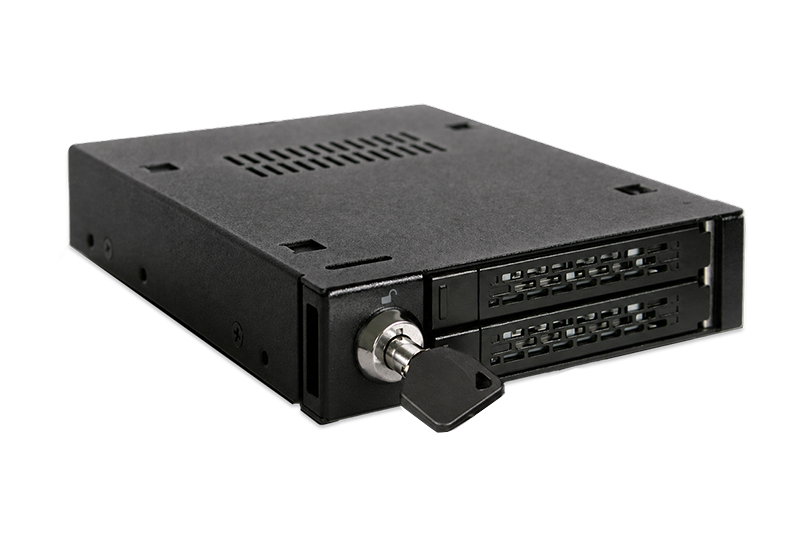

Rugged Heavy duty full metal construction with suggested applications in Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies
|
• |

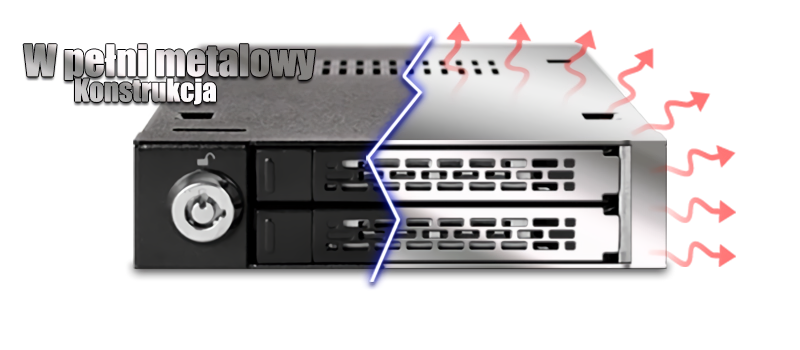

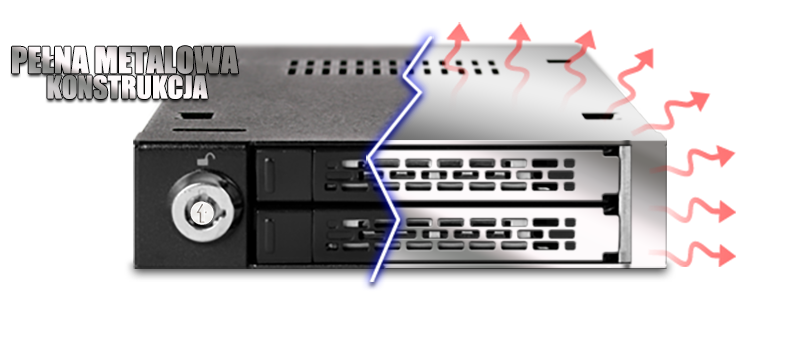

Rugged Full Metal construction, perfect for rugged applications and complies with flammability requirement
|
• |

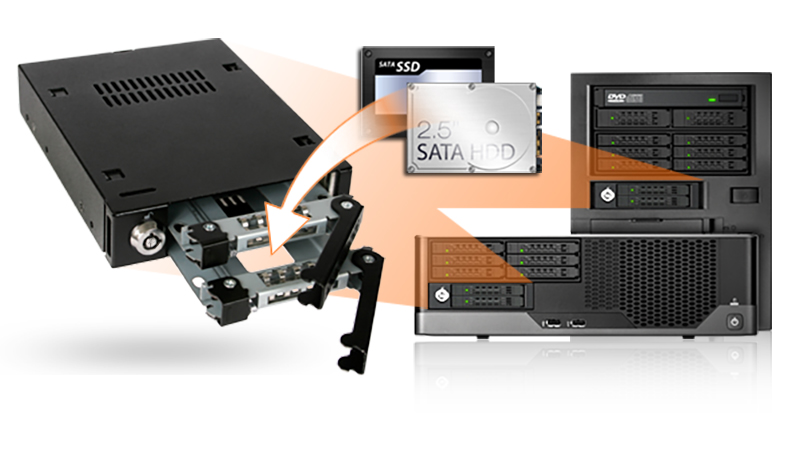

Fits 2 x 5mm to 9.5mm 2.5” SATA HDD or SSD in external 3.5” drive bay
|
• |
Supports SAS or SATA HDD/SSD at 6Gbps and is backwards compatible with SATA 3Gbps drives and hosts (SAS host is required for SAS drives)
|
• |

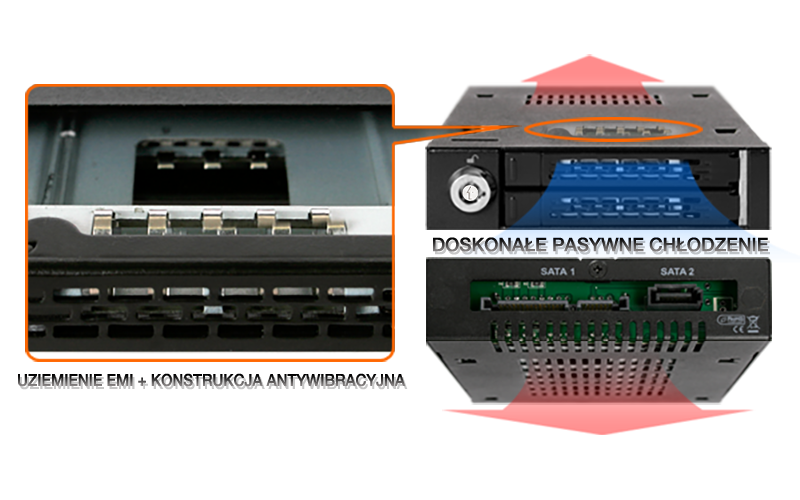

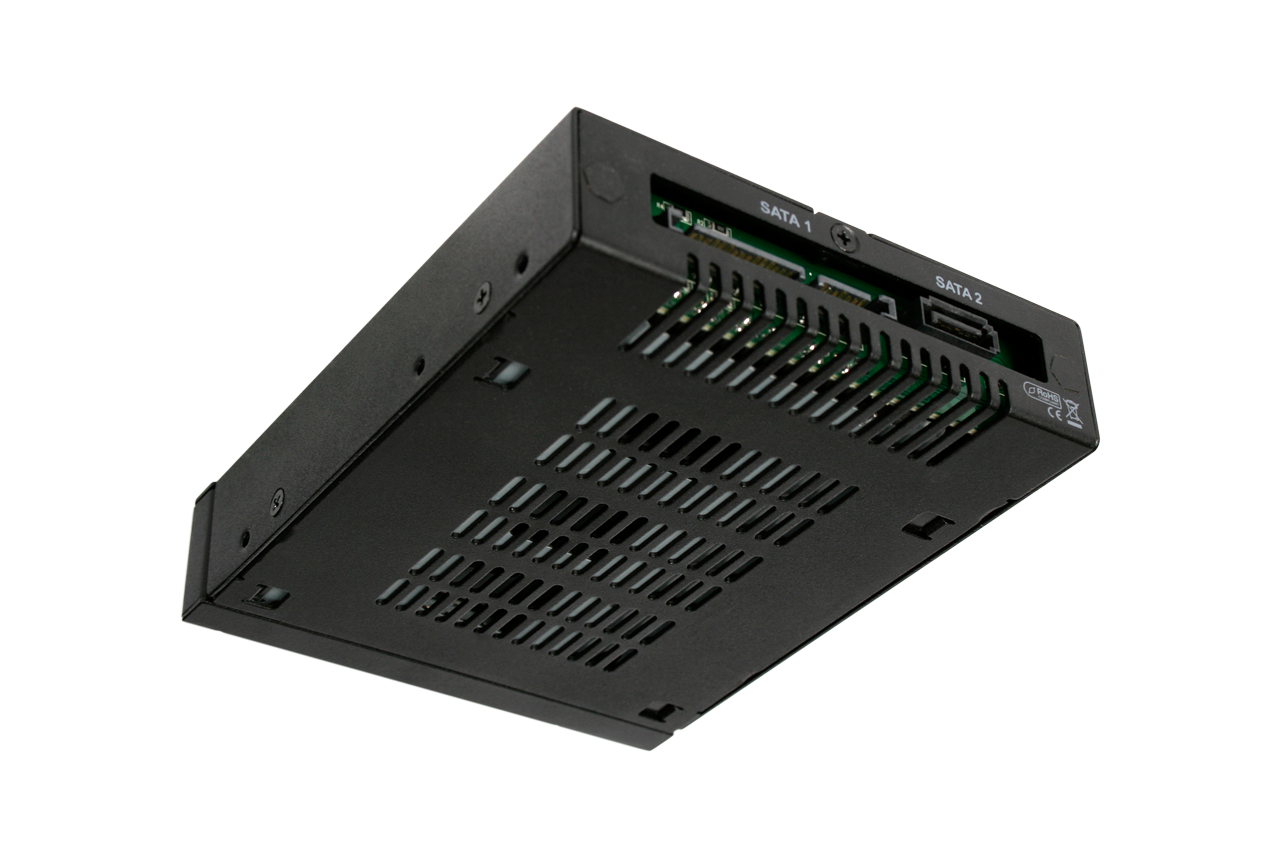

Multi-Flow Technology (MFT) - provides excellent passive cooling
|
• |
Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
|
• |
Active Power Technology (APT) - individual led only powers up if there is drive installed in each bay
|
• |
EMI Grounding – protects hard drives from electrical damage
|
• |

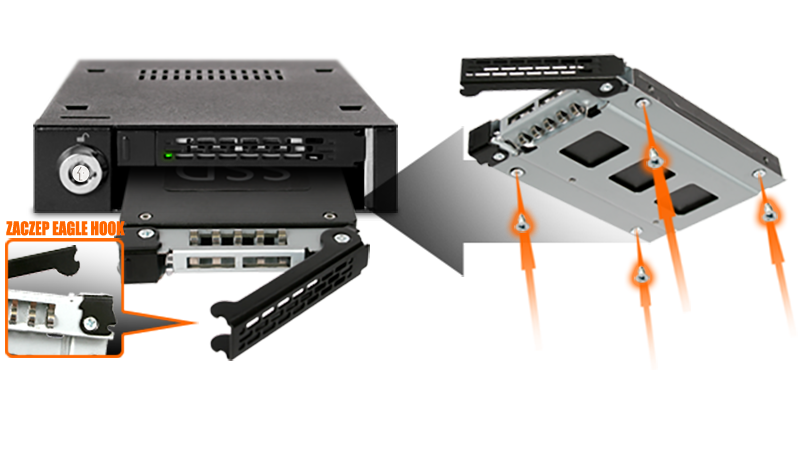

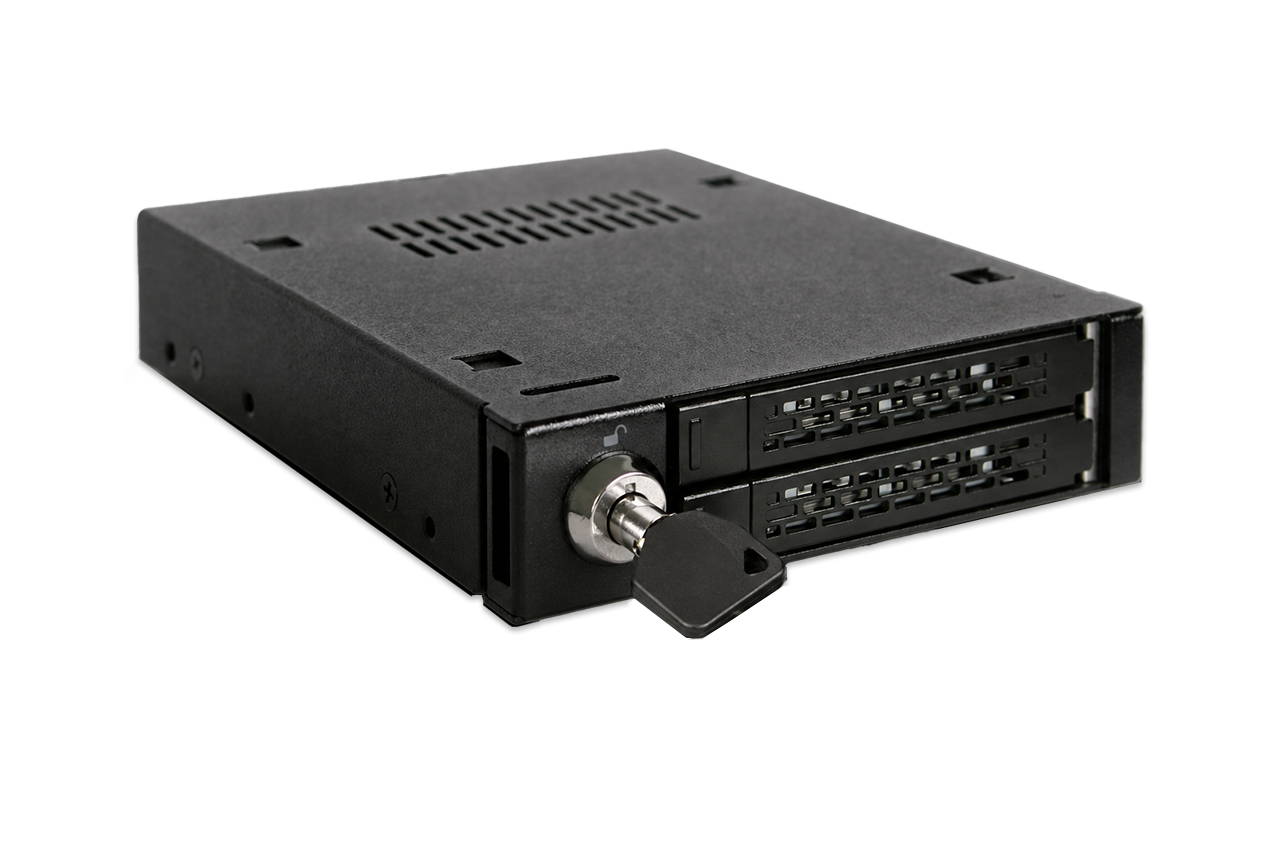

Eagle-hook lock system & 2-segment safeguard key lock keeps drives secure within the enclosure
|
• |

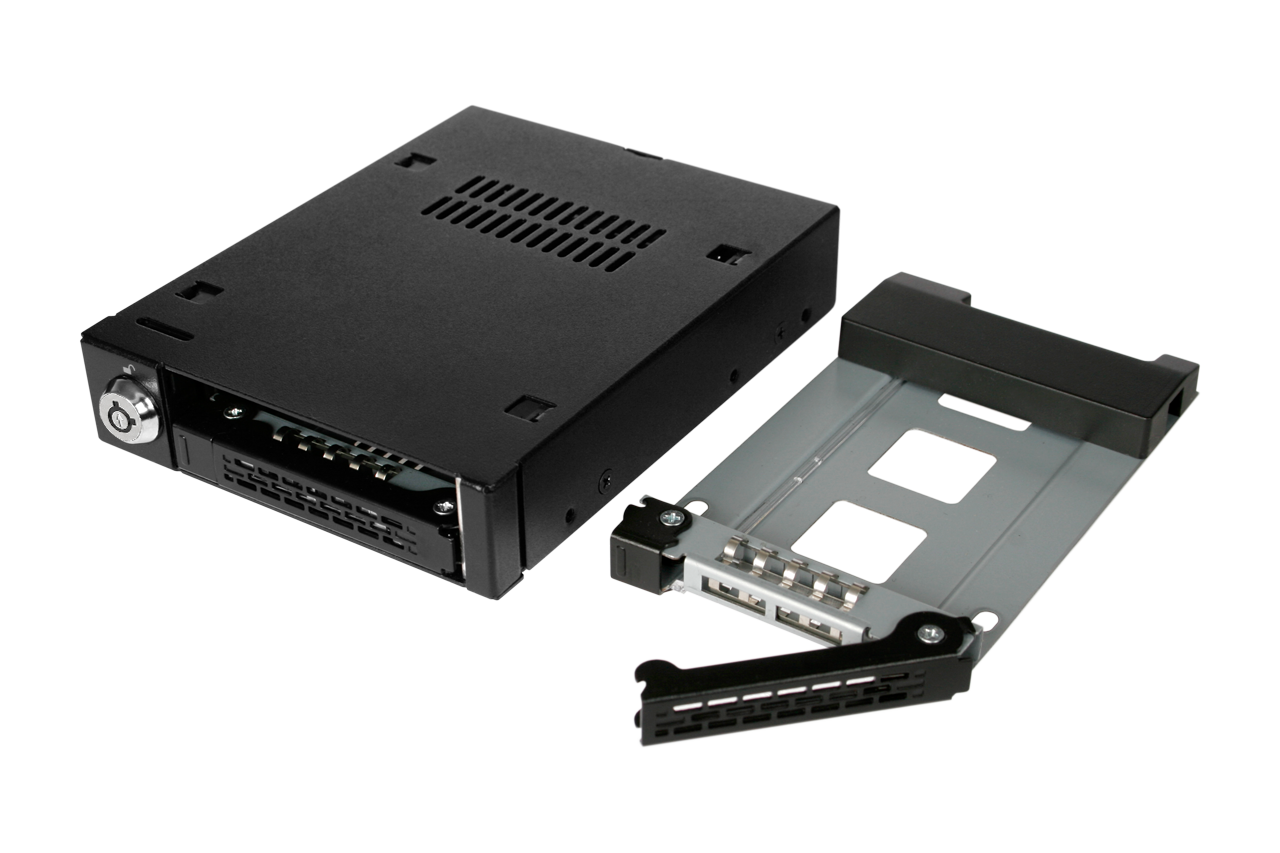

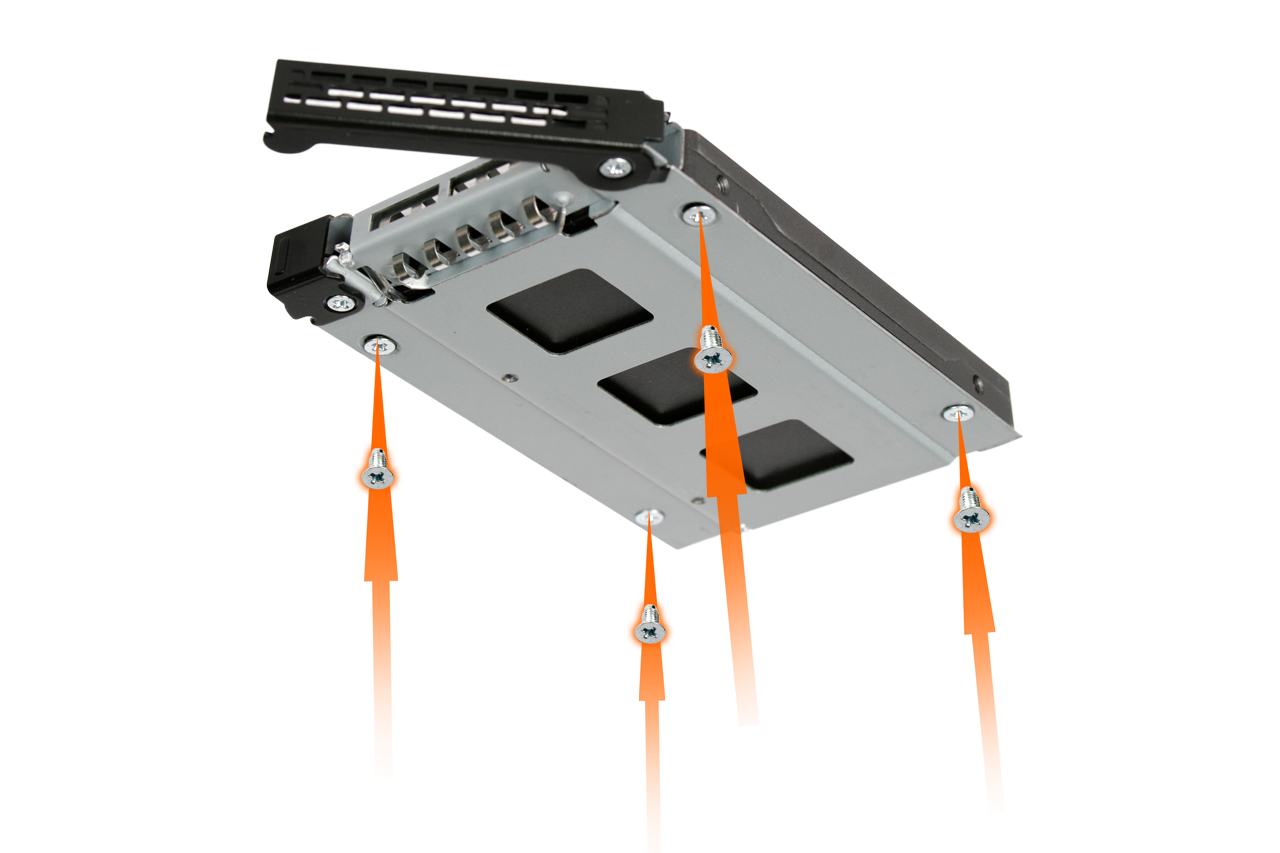

Removable tray system for easy maintenance
|
• |
Supports SATA 6Gbps or SAS 3.0 12Gbps (single channel)
|
• |
Single SATA 15 Pin to power entire device
|
Model Number: | MB992SK-B |
Color: | Black |
Support Drive Size: | 2.5" SSD / HDD |
Compatible Drive Type: | SATA / SAS (SAS host required / single channel) |
Number of Drives: | 2 |
Max Drive Height: | 9.5mm |
Drive Bay: | 1 x 3.5" floopply drive bay |

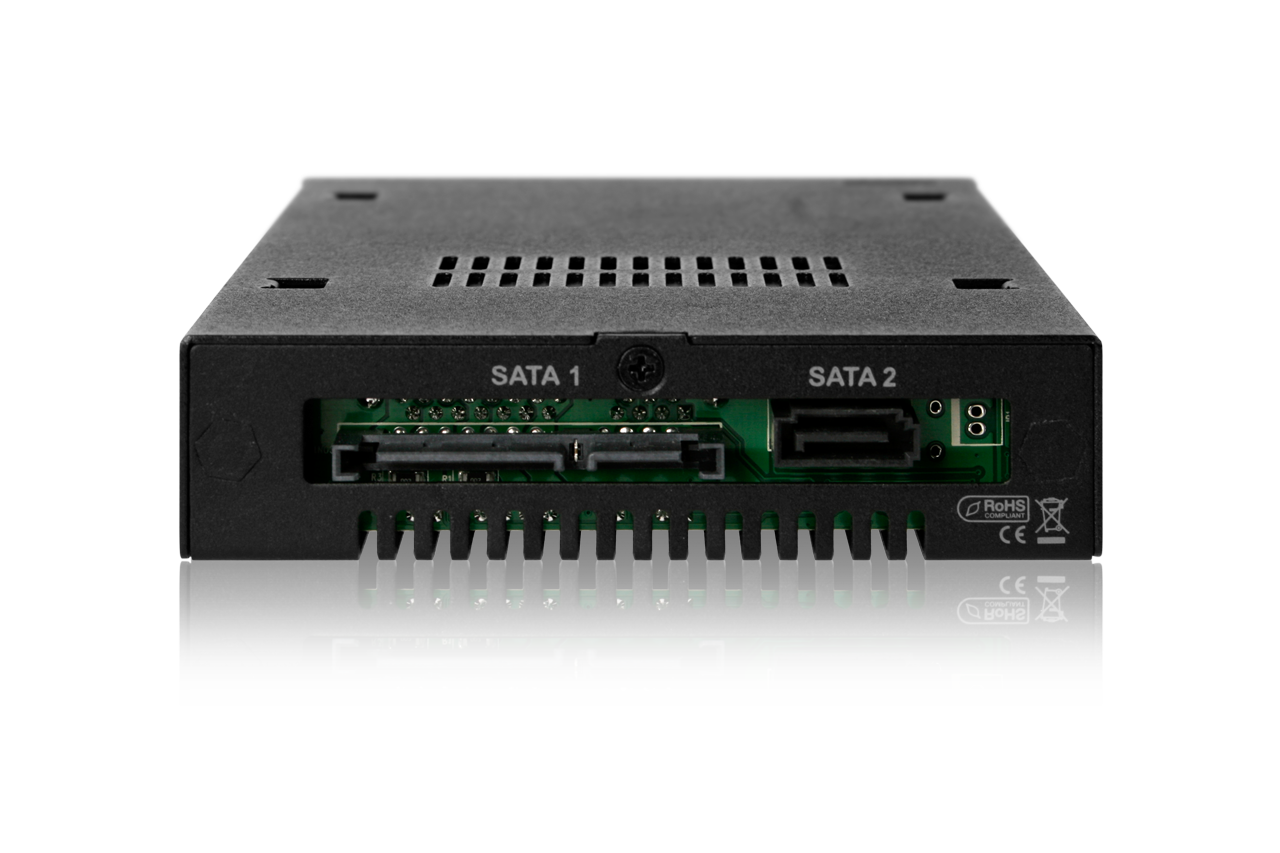

Host Interface: | 2 x SATA 7pin |
Power Input: | 1 x 15 pin SATA power connector |
Transfer Rate: | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
Support HDD Capacity: | No limitation |
Drive Cooling: | Metal heat dispersion |
RAID Function: | N/A |
Structure / Material: | Full metal |
Support Hot-Swap: | Yes |

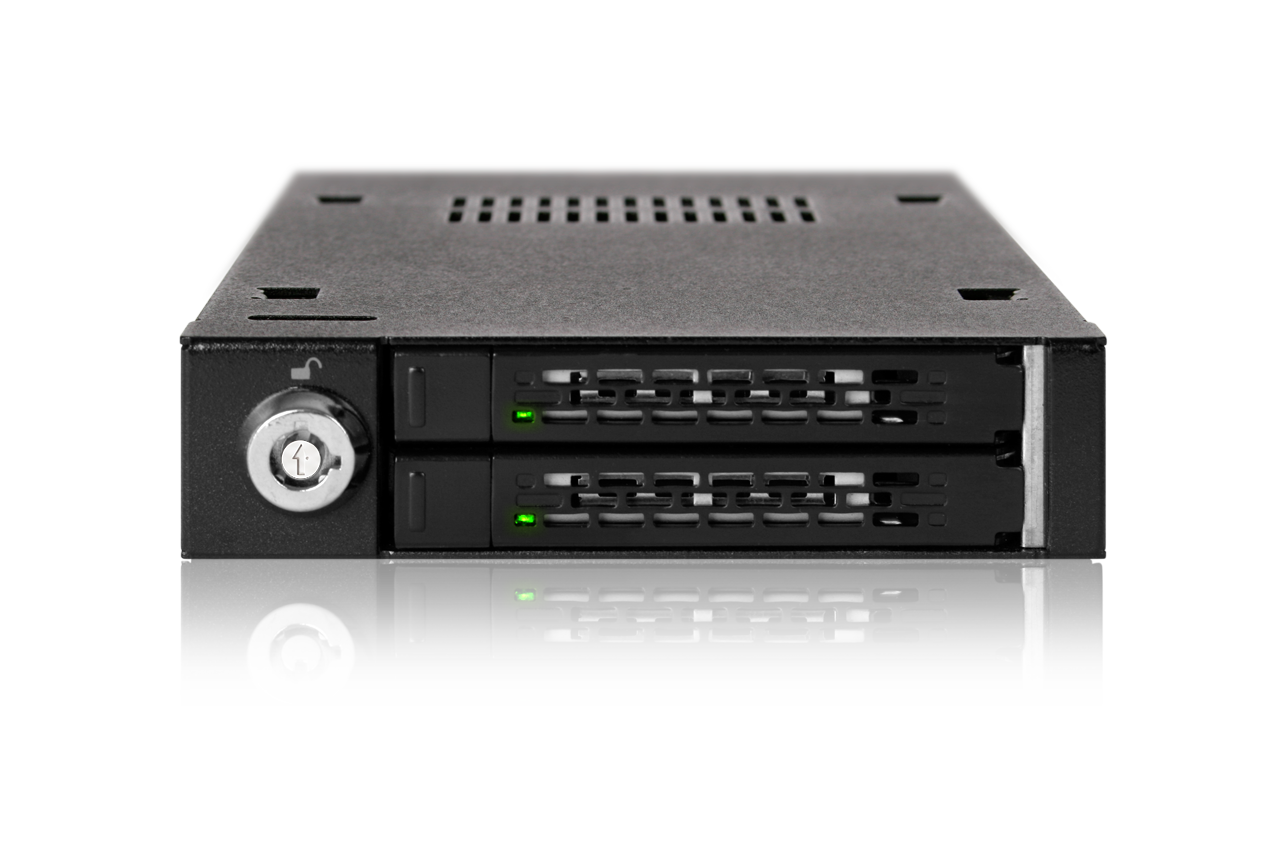

Drive Security: | 2 segment key lock |
Product Dimension (L x W x H): | 133 x 101.2 x 25.4mm |
Product Net Weight: | 398.5g |
Package Gross Weight: | 453.3g |

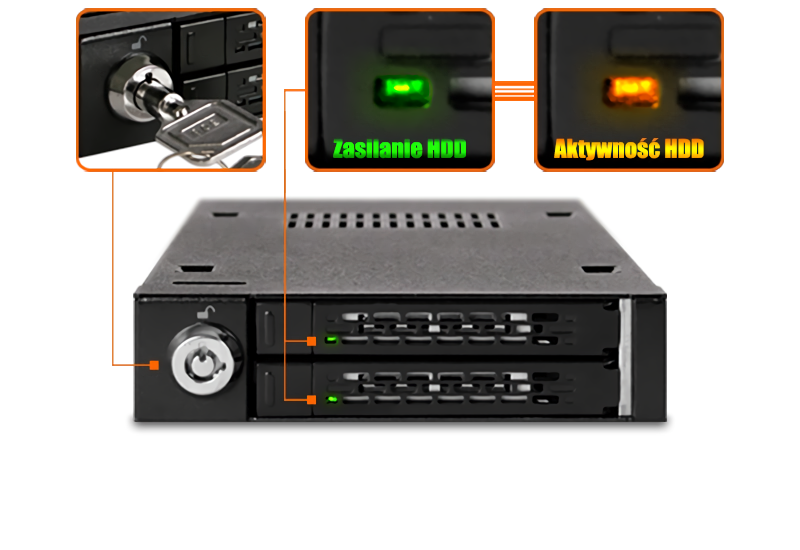

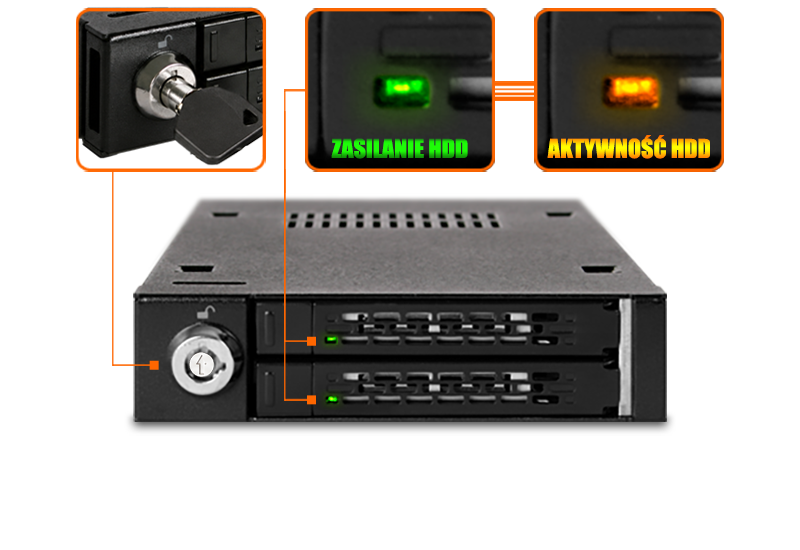

Drive Activity LED Indication: | Drive power: solid green; HDD access: flashing amber |
Package Contents: | 1 - Device, 1 - user manual, 8 - screw, 2 - key |
SATA Connector Insertion Rate: | 10,000 |
Humidity: | 5%~65% RH |
Operating Temperature: | 0°C to 60°C (32°F to 140°F) |
Storage Temperature: | -35°C to 70°C (-31°F to 158°F) |
Compliance: | CE, RoHS, REACH |
Warranty: | 5 years limited warranty |

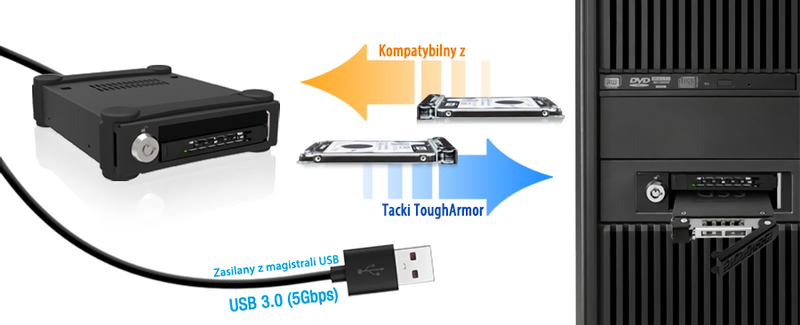

Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q: Does MB992SK-B support the new SATA 3.3 / SAS 3.0 Power Disable feature (PWDIS)?
A: The MB992SK-B does not support the SATA 3.3 / SAS 3.0 PWDIS feature. If you install the SATA/SAS HDD/SSD with PWDIS in MB992SK-B , the drive will not spin, and the system won't detect the drive. See the list below for known SATA/SAS HDD/SSD with the PWDIS feature.
While we recommend to avoid using the SATA/SAS HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:
Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.
Molex to SATA Adapter | Molex to SATA Cable |
Method 2 – Placing Kapton tape on Pin 1-3 of the SATA/SAS power connector to isolate the 3.3V power, as shown below.
Please contact tech@icydock.com if the problem persists.
