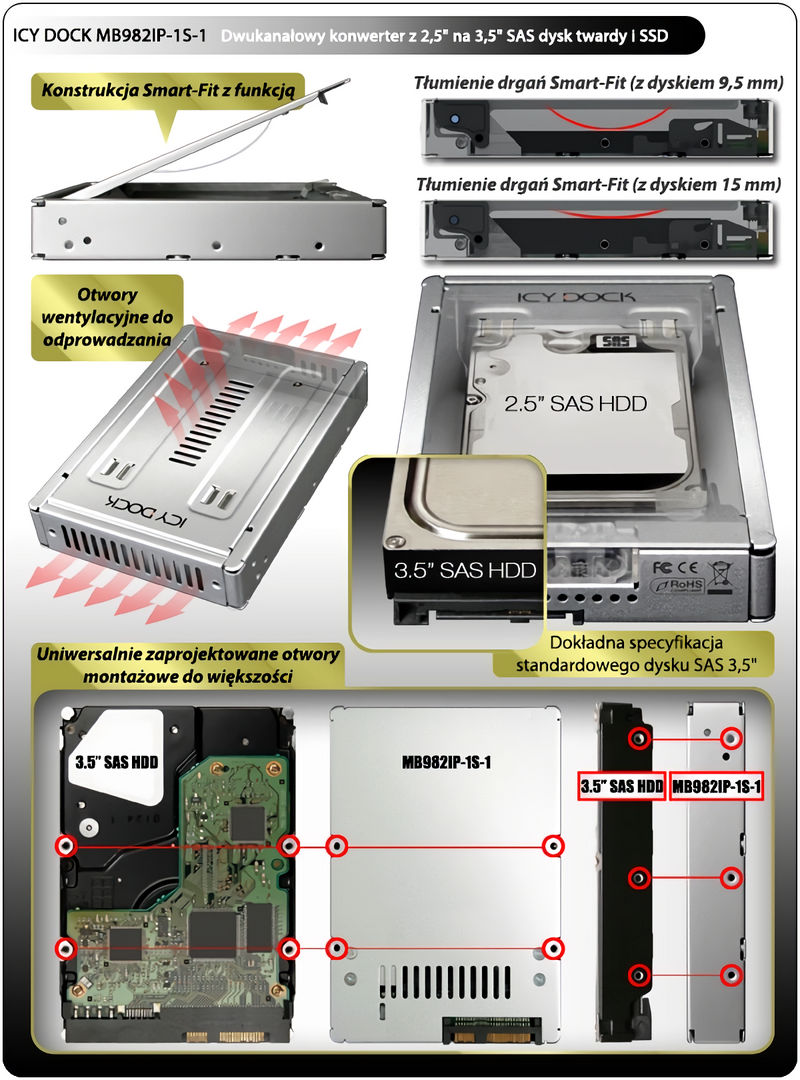

| • | Konwertuje 2,5-calowy dysk twardy SATA/SAS HDD lub SSD na 3,5-calowy dysk twardy SAS HDD lub SSD, do użytku w zatoce dyskowej 3,5” SAS |

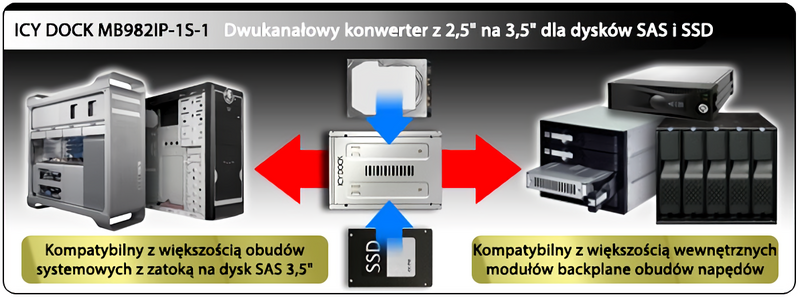

| • | Kompatybilny z większością płyt montażowych dysków twardych SAS 3,5”, stelaży i urządzeń Hot Swap |
| • | Zaprojektowany dla integratorów systemów i specjalistów IT |
| • | Bezśrubowa konstrukcja dla szybkiej i łatwej instalacji |
| • | W pełni metalowy i wytrzymały z łatwym dostępem do napędów |
| • | Kompatybilny z napędami o wysokości 7, 9,5, 12,5 i 15 mm |
| • | Otwory wentylacyjne do odprowadzania ciepła z konstrukcją antywibracyjną |
| • | Obsługa SAS 3.0 12 Gb/s (dwukanałowy) i SATA 6 Gb/s |
| • | Obsługuje kable zasilające SATA i SATA z zatrzaskiem blokującym |
| Model Number： | MB982IP-1S-1 |
| Color： | Silver |
| Support Drive Size： | 2.5" SSD & HDD |
| Compatible Drive Type： | SAS (dual channel) / SATA |
| Number of Drives： | 1 |
| Max Drive Height： | 15mm |
| Drive Bay： | 1 x 3.5" device bay |
| Host Interface： | 1 x SAS 14pin (support SAS dual channel) |
| Power Input： | 1 x 15 pin SATA power connector |
| Transfer Rate： | SAS 3.0 12Gbps / SATA 6Gbps |
| Support HDD Capacity： | No limitation |
| Structure / Material： | Metal |
| Product Dimension (L x W x H)： | 146.6 x 101.6 x 25.4mm |
| Product Weight： | 321g |
| Shipping (Package) Weight： | 368.8g |
| Package Contents： | 1 - device, 1 - user manual, 4 - screws |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Related Products:
Related Products Series:
Quick Link:
Q:What is the difference between the MB982SP-1S and the MB982IP-1S-1 model?
A: The difference is the MB982IP-1S-1 supports SAS and SATA hard drives, while the MB982SP-1S supports SATA hard drives only.
Q:What is the difference between MB982IP-1S-1 & MB382IP-3B?
A: The MB982IP-1S-1 is based off the MB882 series design but added SAS hard drive or SSD support and utilizes a full metal design creating a better environment for cooling, as well as giving it a rock solid construction ideal for industrial, enterprise, and military applications.
The MB382IP-3B is a new design based off the MB982IP-1S-1 but with added open air design with exceptional cooling.
Q:Will this converter allow me to fit my SSD or 2.5" HDD into a 3.5" bay?
A: The MB982IP-1S-1 is a 2.5" to 3.5" hard drive converter. It will fit any standard 2.5" SATA or SAS hard drive or SSD into any standard 3.5" hard drive bay.
Q:Will using this converter affect performance in any way?
A: This converter will not affect performance in any way because the device interface is essentially a bypass. It will be like the hard drive is directly connected to the motherboard.
Q: Does the MB982IP-1S-1 support Samsung 840 series SSDs?
A: Yes, this converter will support all 7-15mm 2.5" SAS or SATA hard drive or SSD (SAS host required).
Q: Does the MB982IP-1S-1 support SATA III hard drives or SSD with SATA III interface?
A: The MB982IP-1S-1 support SATA I / II / III hard drives or SSD with a SATA I / II / III interface. But it require SAS host (motherboard or controller).
Q: Does MB982IP-1S-1 support the new SATA 3.3 / SAS 3.0 Power Disable feature (PWDIS)?
A: The MB982IP-1S-1 does not support the SATA 3.3 / SAS 3.0 PWDIS feature. If you install the SATA/SAS HDD/SSD with PWDIS in MB982IP-1S-1 , the drive will not spin, and the system won't detect the drive. See the list below for known SATA/SAS HDD/SSD with the PWDIS feature.
While we recommend to avoid using the SATA/SAS HDD/SSD with PWDIS, you can use the methods below to disable the PWDIS feature physically if you already purchased the drive:
Method 1 – Using the Molex to SATA adapter or cable to disconnect the power to Pin 3 of the SATA power connector.
 |
 |
|
| Molex to SATA Adapter | Molex to SATA Cable |
Method 2 – Placing Kapton tape on Pin 1-3 of the SATA/SAS power connector to isolate the 3.3V power, as shown below.
 |
 |
Please contact tech@icydock.com if the problem persists.
