| Opcjonalne certyfikaty dostępne dla ToughArmor MB994IPO-3SB | |
| TAA | Zgodność z Trade Agreements Act |
| UL | Certyfikacja standardów bezpieczeństwa |
| UL94 | Palność materiałów z tworzyw sztucznych |
| FCC | Zgodność z przepisami Federal Communications Commission |
| Szeroki zakres temperatur | MIL-STD-810H - Method 501.7 & 502.7 |
| • |
Konstrukcja wykonana w całości z metalu, przeznaczona do medycznych i wojskowych systemów, serwerów multimedialnych, IPC
|
| • |
Idealna dla trudnych zastosowań, zgodna z wymaganiami palności
|
| • |
Idealny dla obudów SFF, IPC, HTPC, NAS, domowych serwerów i komputerów AIO (All-In-One)
|
| • |

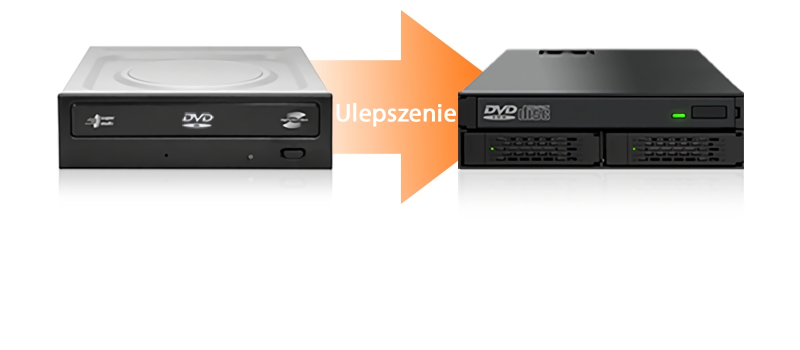

Mieści 2x 2,5” HDD lub SSD SATA/SAS oraz jeden smukły napęd optyczny
|
| • | Obsługuje dyski HDD/SSD o wysokości 7 mm, 9,5 mm, 12,5 mm oraz 15 mm |
| • | Obsługuje interfejs SATA III i SAS 2.0 |
| • | Technologia antywibracyjna (AVT) tworzy bezpieczne warunki dla dysków |
| • | Technologia Active Power LED i wentylator włączają się tylko wtedy, gdy dysk jest umieszczony wewnątrz |
| • | Podwójne 4-pinowe złącza prawidłowo zasilają wszystkie komponenty |
| • | 40-milimetrowy wentylator, który można włączyć i wyłączyć, dzięki czemu hałas jest zredukowany podczas pracy z dyskami SSD |

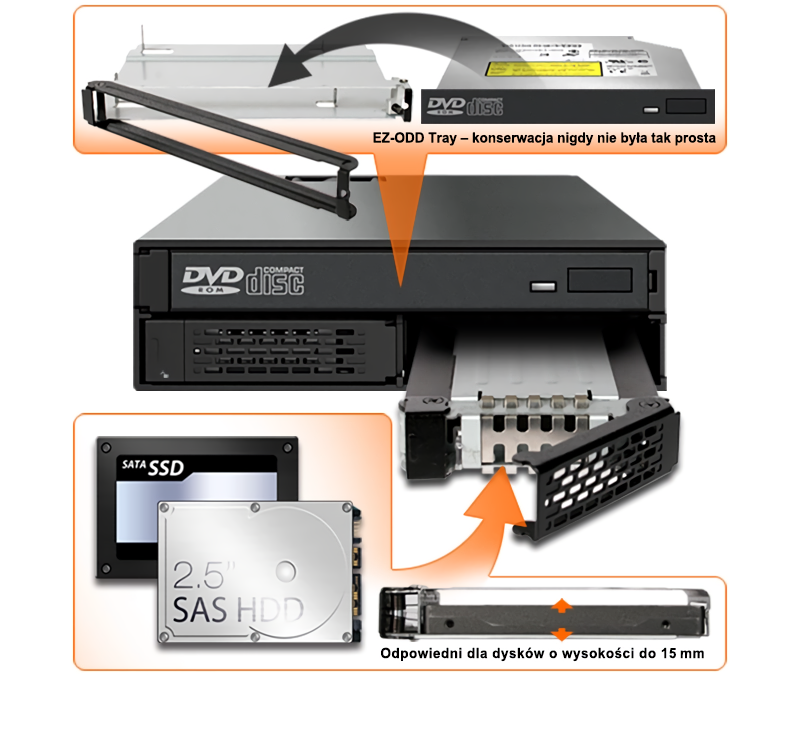

| • | Metalowe tacki EZ Tray Mini i EZ-ODD |
| • | Pokrywa górna tacek daje dodatkowe bezpieczeństwo dyskom/napędowi optycznemu |
| • | Dioda LED statusu pracy dla każdego napędu |

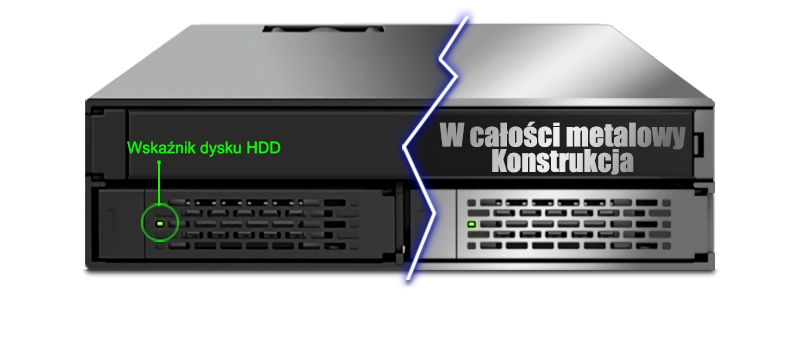

| • | W pełni aluminiowa obudowa |
| Model Number： | MB994IPO-3SB |
| Color： | Black |
| Support Drive Size： | 2 x 2.5" SSD / HDD & 1 x slim ODD (SATA) |
| Compatible Drive Type： | SATA / dual channel SAS (SAS host required) |
| Number of Drives： | 3 |
| Max Drive Height： | 2 x 2.5" up to 15mm 1 x slim ODD |
| Drive Bay： | 1 x external 5.25" drive bay |
| Host Interface： | 5 x SATA 7pin |
| Power Input： | 2 x molex 4 pin power |
| Transfer Rate： | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
| Support HDD Capacity： | No limitation |
| Drive Cooling： | 1 x 40mm fan |
| Structure / Material： | Full metal |
| Support Hot-Swap： | Yes |
| Drive Security： | N/A |
| Product Dimension (L x W x H)： | 170 x 146 x 41.3mm |
| Product Net Weight： | 768g |
| Package Gross Weight： | 847.3g |
| Drive Activity LED Indication： | Drive power: solid green LED; HDD access: flashing Amber LED |
| Package Contents： | 1 - device, 1 - user manual, 22 - screw, 2 - key |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 5 years limited warranty |
Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q:The mounting screws for the device seem to be too short to secure the device onto my system, what should I do?
A: For computer cases that have a thick metal sheet, the included mounting screws (M3*2.5L) may not fully secure the device. Please use longer screws (M3*4L) to secure the device or contact us at tech@icydock.com for replacement screws.
Q: I feel that the drive tray's upper and lower metal spring is stuck when inserting the drive tray. What should I do?
A: Remove the drive tray from the enclosure and reinsert the tray without putting excessive pressure on the metal mesh sheet in front of the tray. Excessive force on the front metal mesh sheet may bend the top and bottom metal spring, causing difficulties when inserting the drive tray. Therefore, please do not forcingly insert the drive tray when this happens as it may cause damage to the metal spring.
 |
| Please DO NOT put excessive pressure on the metal mesh sheet as shown |
Q: After installing a drive in the MB994IPO-3SB, the LED indicator does not flash orange when accessing data but remains solid green. What could be the cause and what is the solution?
A: The MB994IPO-3SB is designed according to the standard signal specifications for SSDs/HDDs and is compatible with the vast majority of drives on the market. However, differences in voltage settings for some specific drives may cause the LED indicator to remain solid green during data read/write operations. This situation will not affect the performance or lifespan of the hard drive, so please use it with confidence. If the hard drive reading indicator light is a necessary feature, consider using other brands and models of drives. Additionally, refer to the list below reported by users of drives that have this issue to avoid using those models with this product.
| Brand Name | Series | Model | Drive Type |
| Seagate | Barracuda | ST5000LM000 ST4000LM024 ST3000LM024 |
2.5" 15mm SATA |
