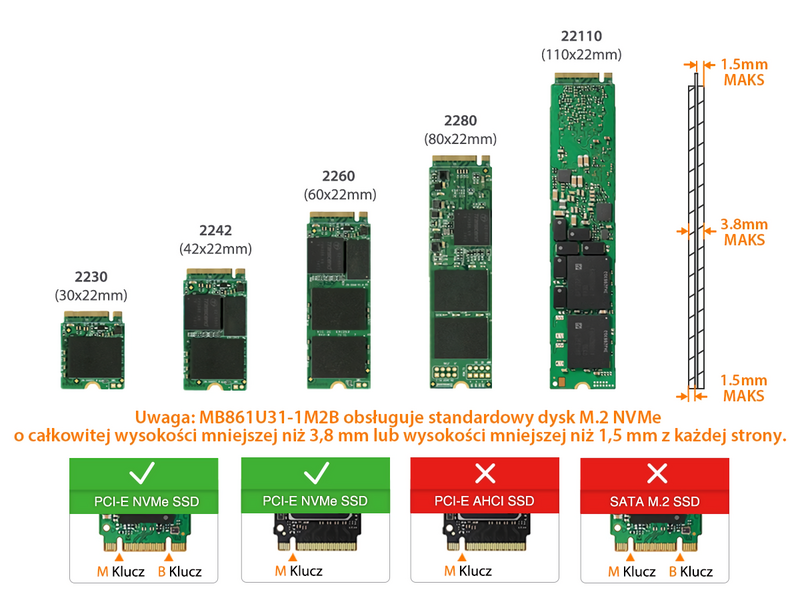

| • | Pasuje do 1x M.2 PCIe NVMe SSD o różnych długościach - 30 mm (2230), 42 mm (2242), 60 mm (2260), 80 mm (2280) i 110 mm (22110) |

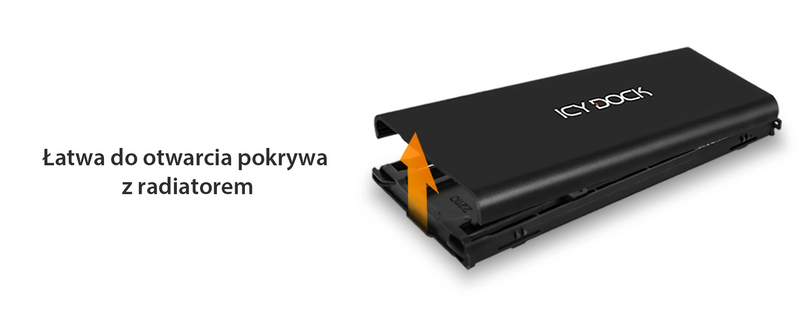

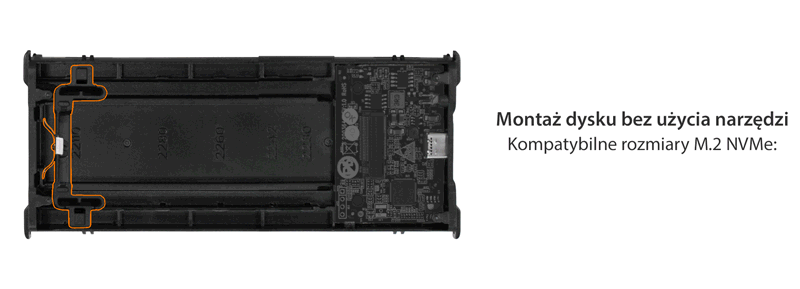

| • | Oczekująca na opatentowanie regulowana blokada dysków M.2 oferuje beznarzędziowy i bezśrubowy proces instalacji dysków |

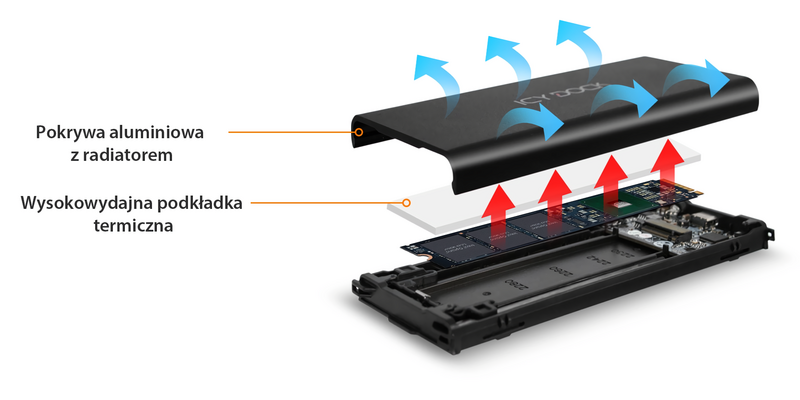

| • | Dwufunkcyjna aluminiowa pokrywa radiatora zapewnia maksymalną ochronę dysku i rozpraszanie ciepła |
| • | Dołączona wysokowydajna podkładka termiczna zapewnia optymalną wydajność chłodzenia |

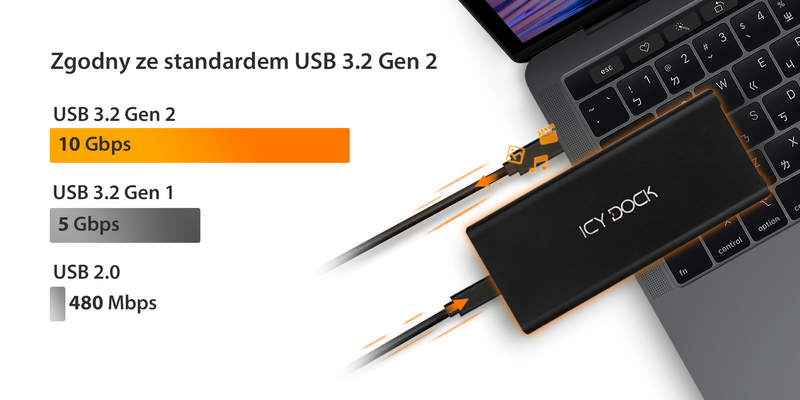

| • | Obsługa interfejsu USB 3.2 Gen 2 - prędkość transferu do 10 Gb/s |

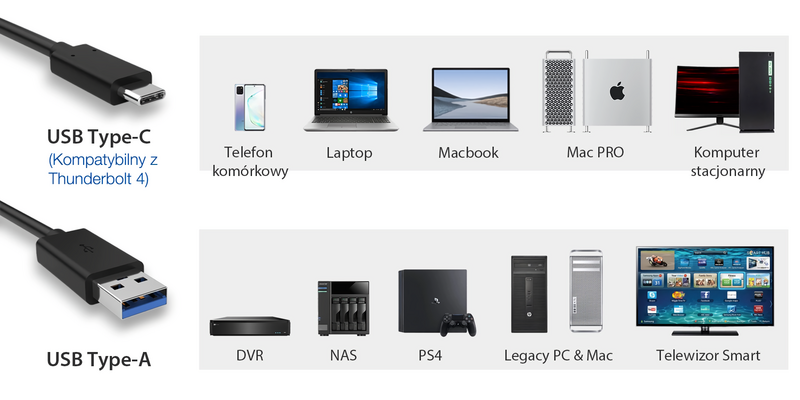

| • | Prawdziwa konstrukcja plug and play i wsteczna kompatybilność z interfejsami USB 2.0, 3.0, 3.2 Gen 1 |
| • | Kable USB typu C na C i C na A w zestawie dla najlepszej wydajności i kompatybilności systemu |
| • | Wiodąca w branży 3-letnia gwarancja z bezpłatnym wsparciem technicznym i obsługą klienta |
| Model Number： | MB861U31-1M2B |
| Color： | Black |
| Support Drive Size： | 1 x M.2 PCIe NVMe SSD (2230/2242/2260/2280/22110) |
| Host Interface： | USB-C 3.2 Gen 2 (Thunderbolt 4 compatible) |
| Power Input： | Via USB |
| Transfer Rate： | Up to 10Gb/s (depending on hard drive speed) |
| Controller IC： | JMicron - JMS583 |
| Structure / Material： | Aluminum & Plastic |

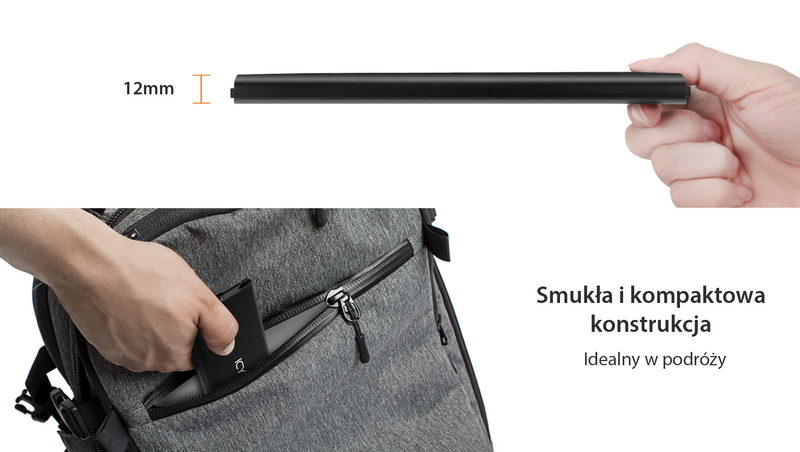

| Product Dimension (L x W x H)： | 150 x 63 x 12mm |
| Product Net Weight： | 99g |
| Package Net Weight： | 208g |
| Drive Activity LED Indication： | SSD power: solid blue; SSD access: flashing blue |
| Package Contents： | Device, user manual, thermal pad, USB 3.2 Gen 2 Type A & C cable |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 5 years limited warranty |
Related Products:
Related Products Series:
Q: I installed the and the device is connected to my computer, but the drive is not detected.
A: There are some scenarios you can do to rule out potential problems.
Scenario 1 – Drive status LED is not lighting up
Scenario 2 - The drive status LED lights up, but the SSD is still not detectable
Scenario 3 - The SSD and the connected USB port do work normally, but the drive does not show up on my computer after connecting to my computer
Scenario 4 - It has been verified to rule out all possible hardware problems, but the system still cannot detect the SSD
Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.
Q: Is there any known compatibility issue between ICYNano MB861U31-1M2B and M.2 NVMe SSDs?
A: The ICYNano MB861U31-1M2B uses a JMicron JMS583 chipset and is designed to be compatible with most of the M.2 NVMe SSD available on the market. See below for the latest known issues reported by the ICYNano users and a list of compatible SSDs.
Note: the SSD issues listed below have only been reported by a few customers. It is still too early to say they are not compatible as the issues may be caused by SSD firmware and host configurations. We are verifying the compatibility with JMicron and will constantly update the compatibility list. Meanwhile, we suggest using SSDs that are known to be worked with ICYNano MB861U31-1M2B.
Click here to report a compatible/incompatible M.2 NVMe SSD. Your help is greatly appreciated!
M.2 NVMe SSDs known to have an issue with MB861U31-1M2B
M.2 NVMe SSDs verified to work with MB861U31-1M2B
Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.
By BuildOrBuy
Finding an M.2 NVMe enclosure to support the enterprise 110mm M.2 NVMe SSD drive size is rare but we got you covered. Thanks to BuildorBuy for going in-depth on how it can be used on a day-to-day basis.
By ThisBytesForYou
If you are in the market for M.2 NVMe enclosure or potentially considering it, watch ThisBytesForYou overview of our ICYNano MB861U31-1M2B. It is more than an ordinary enclosure.
