Fits 8 x 2.5" U.2 NVMe SSDs into 2 x 5.25" external drive bay
|
| • |
Removable drive tray for easy drive installation and removals
|
| • |

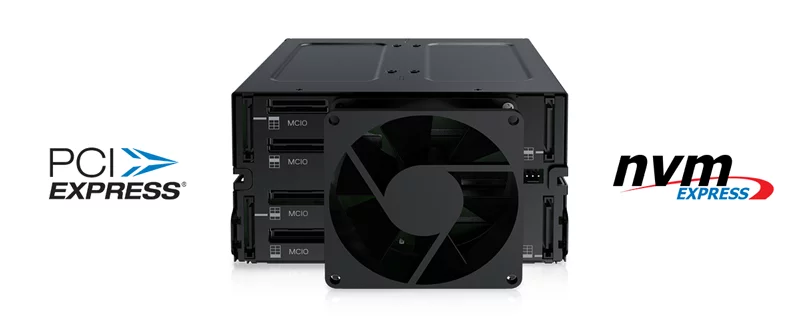

Uses 4 x MCIO ports to connect (NVMe host required)
|
| • |
MCIO connector pinout supports SFF-TA-1016 specification
|
| • |
Supports the full PCIe 5.0 x4 bandwidth specifications of 128Gbps per drive bay
|
| • |

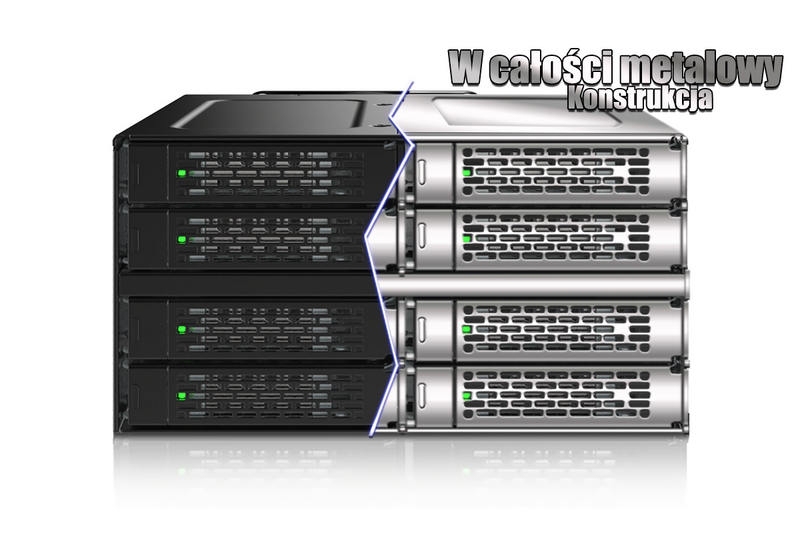

Ruggedized full metal housing and tray that meets flammability requirement
|
| • |

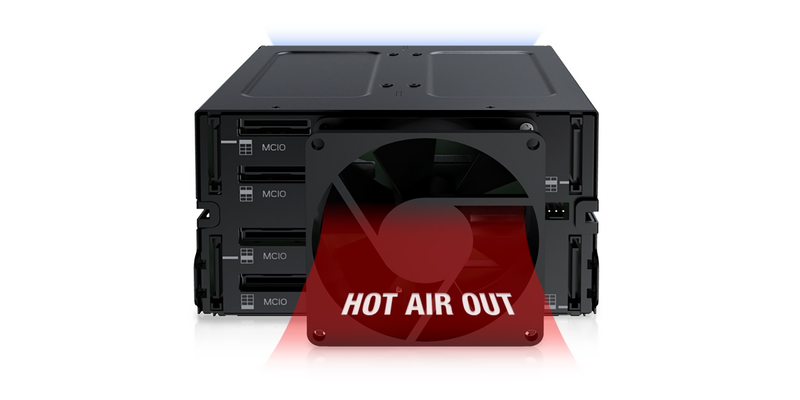

High efficient 80mm cooling fan to prevent your NVMe SSDs from overheating
|
| • |
The fan is replaceable with aftermarket fans that use standard 2-pin or 3-pin connectors
|
| • |

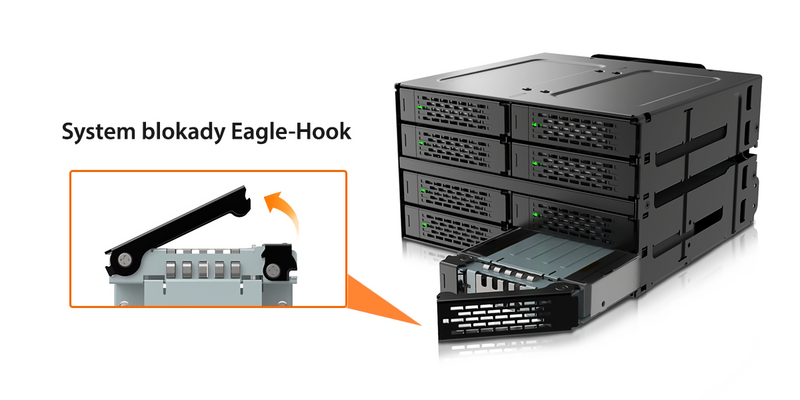

Eagle-hook tray latch securely hold the tray inside of the enclosure
|
| • |
EMI-Grounding – protects drives from electrical damage
|
| • |
Anti-Vibration Technology (AVT) – reduces noise and protects against environmental damage
|
| • |
Active Power Technology (APT) – saves power by shutting the device down when no drives are installed
|
| Model Number： | CP104 |
| Color： | Black |

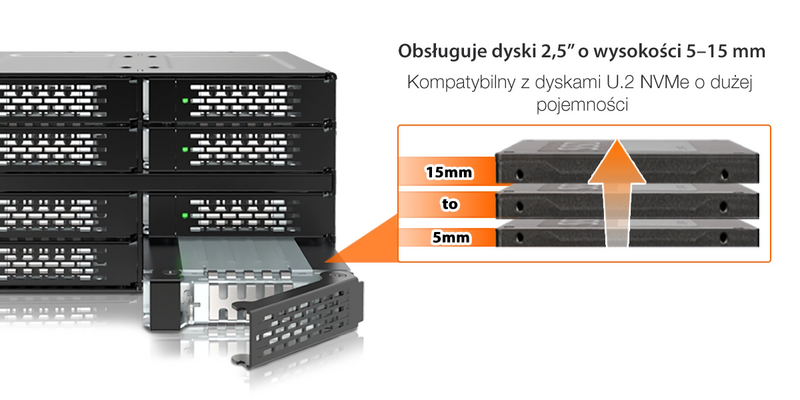

| Drive Fit： | 8 x 2.5" U.2 NVMe SSD (Up to 15mm height) |
| Device Fit： | 2 x 5.25" Drive Bay |
| Host Interface： | 4 x MCIO 8i (SFF-TA-1016 8i) |
| Power Input： | 4 x SATA 15 Pin |
| SSD Access Indicator： | Device Power: Solid Green Device Activity: Flashing Green |
| Maximum Transfer Rate： | PCIe 5.0 x4 up to 128Gbps |
| Hot Plug： | Yes |
| Structure： | Full Metal |
| Package Content： | Device, User Manual, Screws, ID Plugs |
| Dimension (L x W x H)： | 146 x 84 x 157.9 mm |
| Weight： | 1480g (TBD) |
