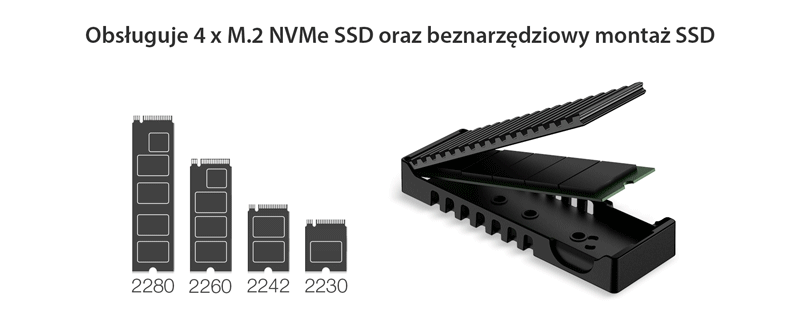

Fits 4 x M.2 NVMe SSD with drive lengths from 30mm to 80mm (2230 / 2242/ 2260 / 2280) in a single PCIe x16 expansion slot (Full-height, half-length)
|
| • | Uses 1x PCIe 3.0/4.0x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x is required to access both drives) |
|
•
|

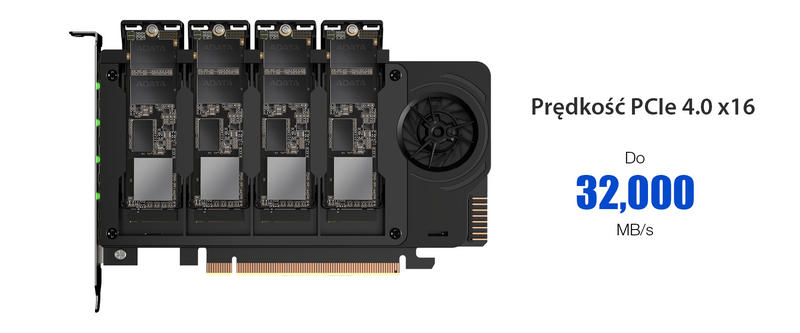

Supports transfer speeds up to 64Gbps per M.2 NVMe PCIe SSD
|
|
•
|

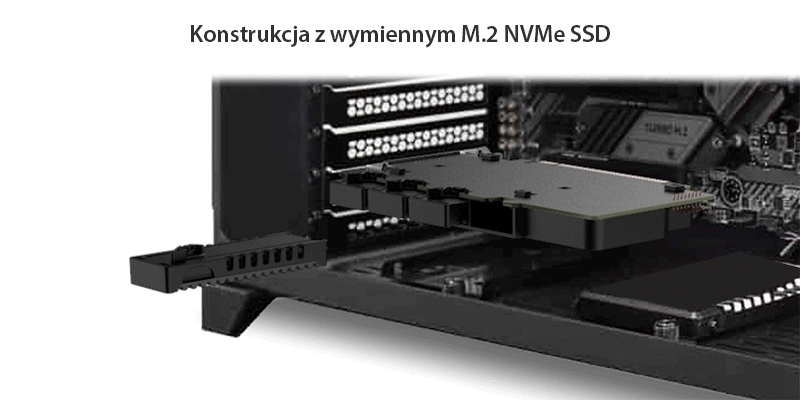

Removable drive tray with tool-less drive installation design for easy drive maintenance
|
|
•
|
Integrated individual M.2 drive heat sinks and thermal pads for max heat dissipation
|
|
•
|

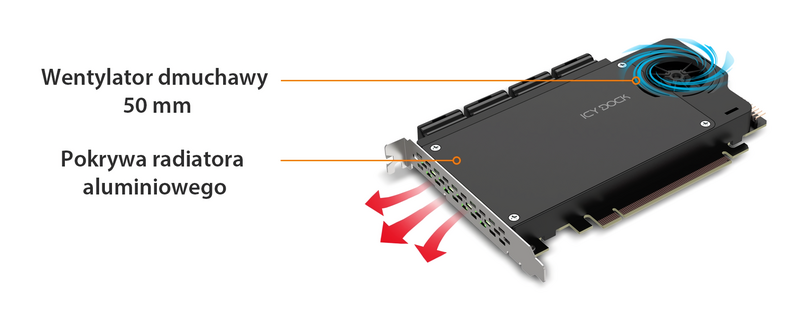

Equipped with a 50mm blower fan offers maximum cooling to M.2 NVMe SSD
|
|
•
|
Individual drive activity LED indicator (Solid green for power and flashing green for drive activity)
|
|
•
|
Active power technology (APT) saves energy by shutting the device down when no drive is installed
|
|
•
|
Optional 8-pin drive signal output header to connect chassis or external LED panel
|
|
•
|

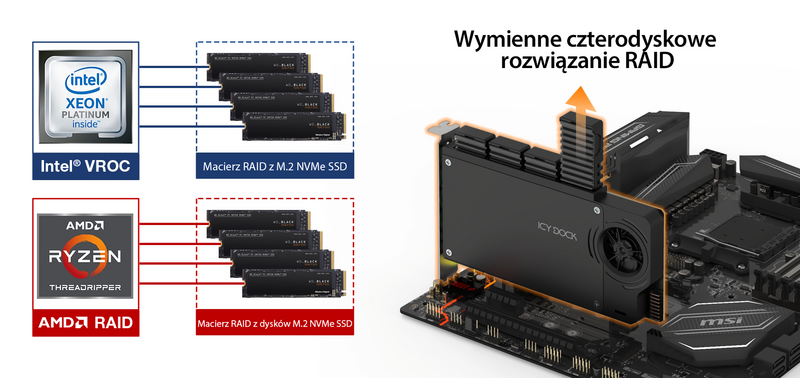

Compatible with AMD TRX40/X570 PCIe 4.0 for NVMe RAID and supports Intel® VROC functions
|
| Model Number : | CP074-1 |
| Color : | Black |
| Host Interface : | 1 x PCIe 4.0 x16 golden finger |
| Drive Bay： | 1 x PCIe 3.0 or 4.0 x16 expansion slot (motherboard required PCIe x16 slots bifurcated into x4/x4/x4/x4) |
| Drive Fit : | 4 x M.2 NVMe PCIe 4.0 x4 SSD (compatible with 2230 / 2242 / 2260 / 2280) |
| Device Fit : | 1 x single PCIe x16 slot |
| Maximum Transfer Rate : | PCIe 4.0 x4 up to 64Gbps per SSD |
| Power Input : | 1 x PCIe golden finger |
| SSD Access Indicator : | Device power: solid green Device activity: flashing green Empty: LED off |
| Fan Type : | 1 x 50mm blower |
| Heatsink : | Yes, black aluminum |
| Structure : | Metal IO bracket/cover with PCBA and plastic shield |
| Package Content : | Device, user manual, 4 x thermal pad |
| Dimension (W x H x D) : | 126.34 x 21.59 x 180.98 mm |
| Weight : | 240g (TBD) |
