ExpressSlot Core MB305M4P-B
Wyjmowana karta adaptera obudowy dysku M.2 NVMe SSD na PCIe 4.0 x4 do gniazda rozszerzeń PCIe
Szczegóły Produktu
  • ExpressSlot Core MB305M4P-B to karta PCIe 4.0 x4 przeznaczona dla dysków SSD M.2 NVMe, wyposażona w wyjmowaną bez użycia narzędzi tacę SSD M.2 NVMe, zapewniającą bezproblemowy dostęp do dysku i łatwą konserwację. Profesjonaliści IT, montażyści audio/wideo i gracze mogą szybko instalować lub wymieniać dyski SSD M.2 NVMe bez otwierania obudowy systemu, dzięki czemu jest to idealne rozwiązanie dla serwerów, komputerów przemysłowych, stacji roboczych i środowisk intensywnie korzystających z multimediów, w których szybka wymiana dysków SSD jest niezbędna do zminimalizowania przestojów, maksymalizacji produktywności lub zarządzania bibliotekami multimediów.
  • Innowacyjna, wyjmowana konstrukcja dla dysków SSD M.2 NVMe

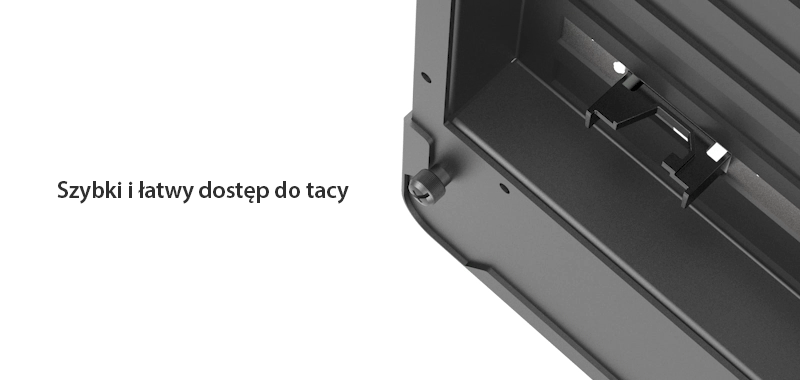

    W przeciwieństwie do tradycyjnych kart M.2 NVMe SSD PCIe, które wymagają otwierania obudowy w celu konserwacji, ExpressSlot Core MB305M4P-B rewolucjonizuje ten proces dzięki wyjmowanej tacy M.2 NVMe SSD, do której można łatwo uzyskać dostęp z panelu slotu PCIe. Taca ta umożliwia szybki i beznarzędziowy dostęp, idealny do zadań takich jak tworzenie kopii zapasowych danych, odzyskiwanie systemu lub codzienne operacje w wymagających środowiskach. Bez konieczności wyjmowania całej karty adaptera, jest to idealne rozwiązanie dla systemów klasy korporacyjnej, w których czas i dostępność mają kluczowe znaczenie.
  • Obsługa 1 x M.2 NVMe SSD i beznarzędziowa instalacja SSD
    Dzięki beznarzędziowemu projektowi instalacji SSD, instalacja dysku M.2 NVMe SSD w MB305M4P-B nigdy nie była łatwiejsza. Najpierw umieść klips montażowy M.2 SSD w półokrągłym wycięciu nad otworem na śrubę, a następnie umieść zarówno dysk SSD M.2 NVMe, jak i klips montażowy na tacy. Następnie nałóż podkładkę termiczną i ponownie przymocuj pokrywę radiatora, aby zakończyć instalację. Cały proces zajmuje mniej niż 60 sekund, umożliwiając instalację lub usunięcie dysku SSD bez konieczności demontażu MB305M4P-B z gniazda PCIe.
  • Zoptymalizowane zarządzanie temperaturą

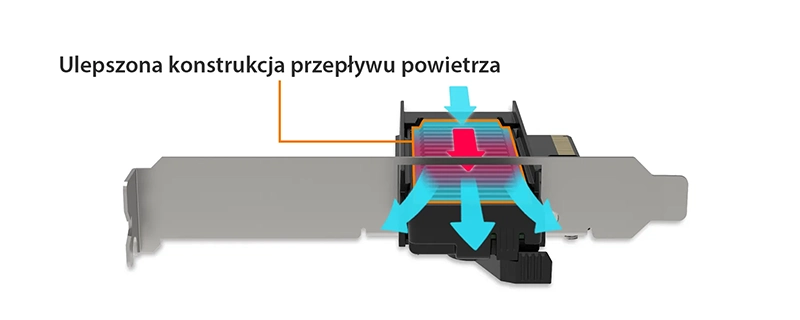

    MB305M4P-B jest wyposażony w aluminiową pokrywę radiatora i dołączoną podkładkę termiczną, aby skutecznie odprowadzać ciepło z dysku M.2 NVMe SSD, zapewniając stabilną wydajność nawet przy intensywnym obciążeniu PCIe 4.0. Zapobiega to dławieniu termicznemu i maksymalizuje przepustowość danych. Konstrukcja skutecznie kanalizuje przepływ powietrza, aby utrzymać dysk M.2 NVMe SSD w niskiej temperaturze, zapewniając niezawodną wydajność podczas intensywnych transferów danych.
  • Najwyższa wydajność PCIe 4.0

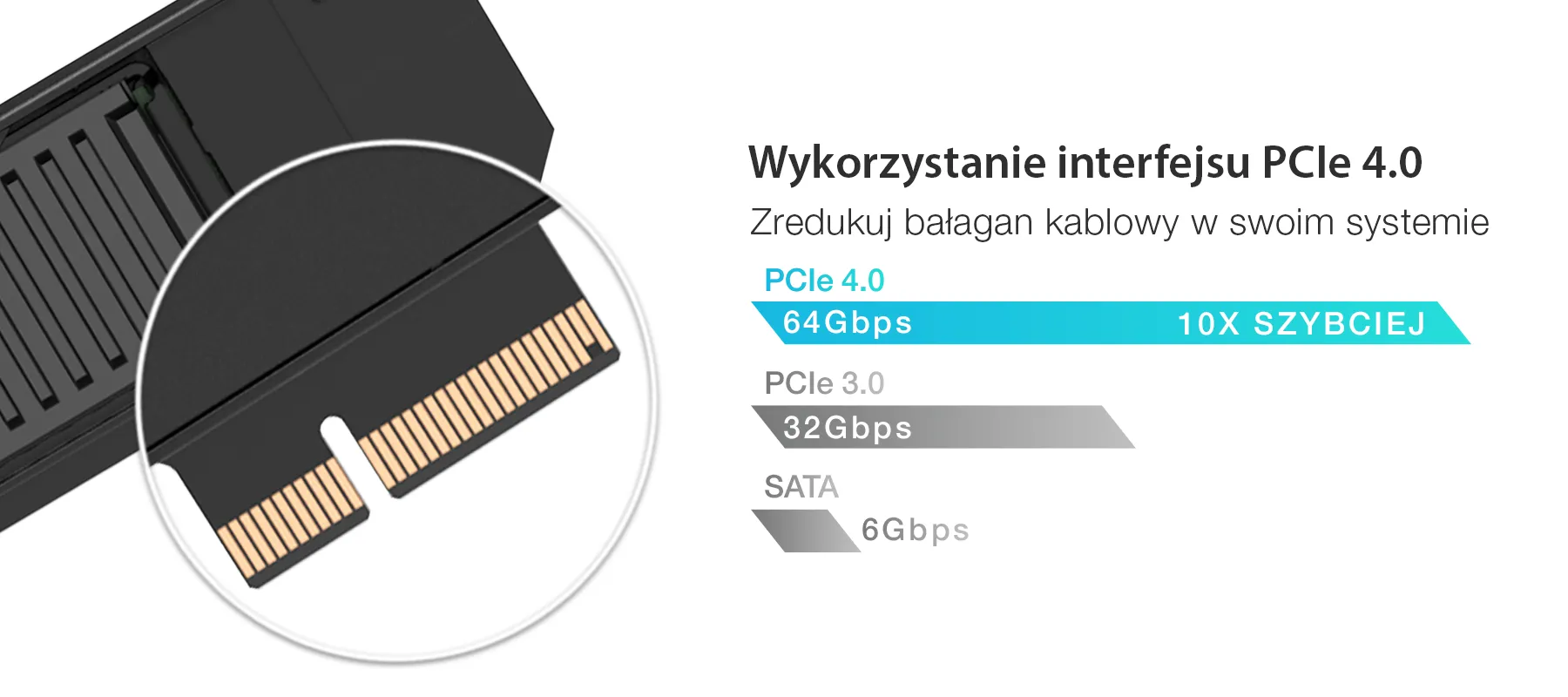

    Interfejs PCIe 4.0 zapewnia niezrównaną prędkość, zapewniając transfer na poziomie 64 Gb/s - 10 razy szybszy niż SATA III. Sprawia to, że MB305M4P-B jest idealnym rozwiązaniem dla aplikacji wymagających szybkiego transferu danych, takich jak sztuczna inteligencja, analiza dużych zbiorów danych i przetwarzanie w chmurze. Dzięki PCIe 4.0 doświadczysz zmniejszonych opóźnień i szybszego dostępu do danych, dzięki czemu Twój system będzie przyszłościowy dla obciążeń intensywnie wykorzystujących dane.
  • Maksymalna kompatybilność z nowoczesnymi systemami

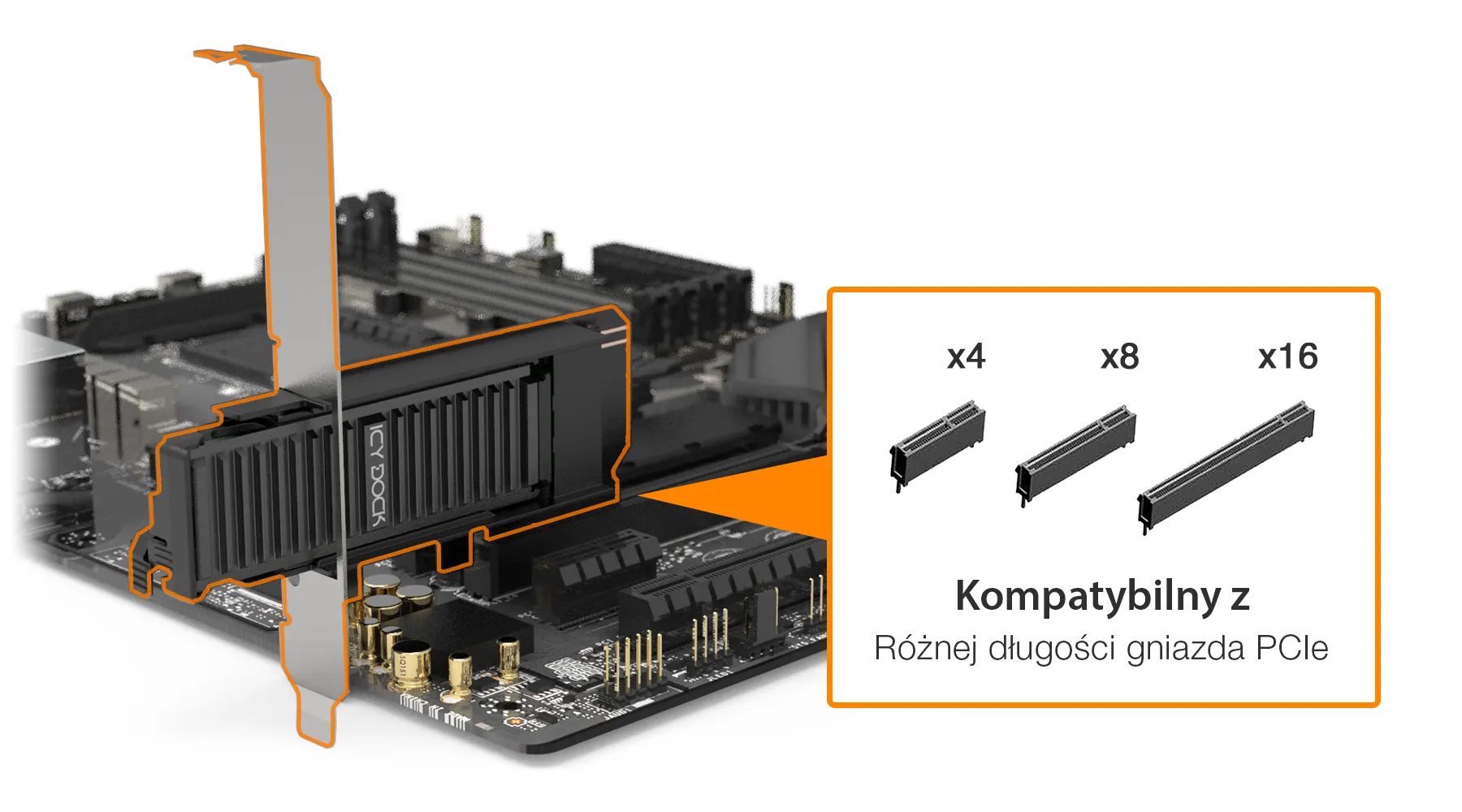

    Zaprojektowany dla gniazda PCIe 4.0 x4, ExpressSlot Core MB305M4P-B jest w pełni kompatybilny z gniazdami PCIe x4, x8 i x16, oferując niezrównaną elastyczność dla różnych architektur systemowych. Niezależnie od tego, czy modernizujesz serwer, stację roboczą, czy system korporacyjny, ten adapter został zaprojektowany z myślą o płynnej integracji.
  • Bogactwo funkcji
    MB305M4P-B jest wyposażony we wskaźniki LED aktywności dysku, pozwalające na monitorowanie zasilania i aktywności SSD na pierwszy rzut oka. Funkcja automatycznego wyłączania dodatkowo zwiększa efektywność energetyczną, wyłączając urządzenie, gdy nie zostanie wykryty żaden dysk SSD.

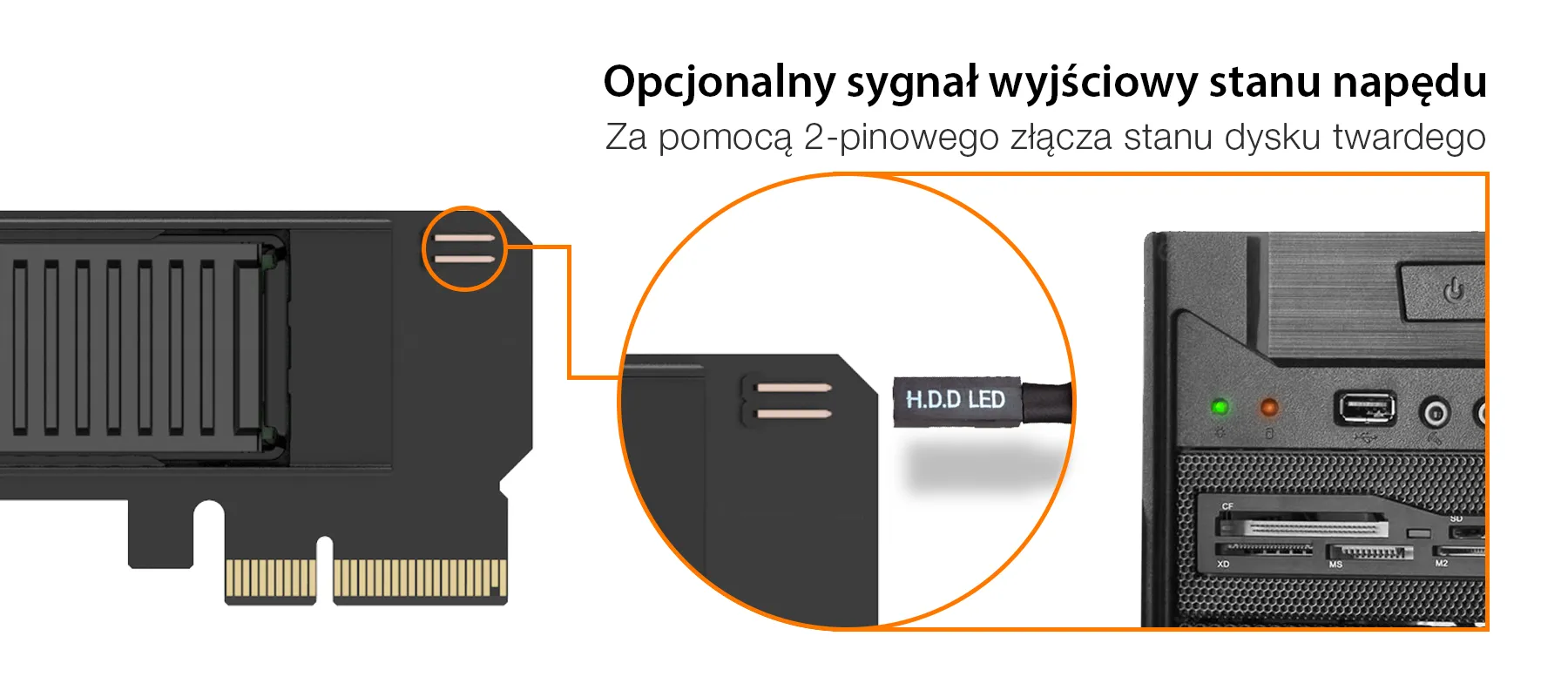

  • Opcjonalne 2-pinowe wyjście sygnału aktywności dysku twardego (kabel nie znajduje się w zestawie) umożliwia przesyłanie sygnału aktywności dysku do obudowy komputera lub panelu LED i pozwala monitorować aktywność dysku w wybranej lokalizacji.

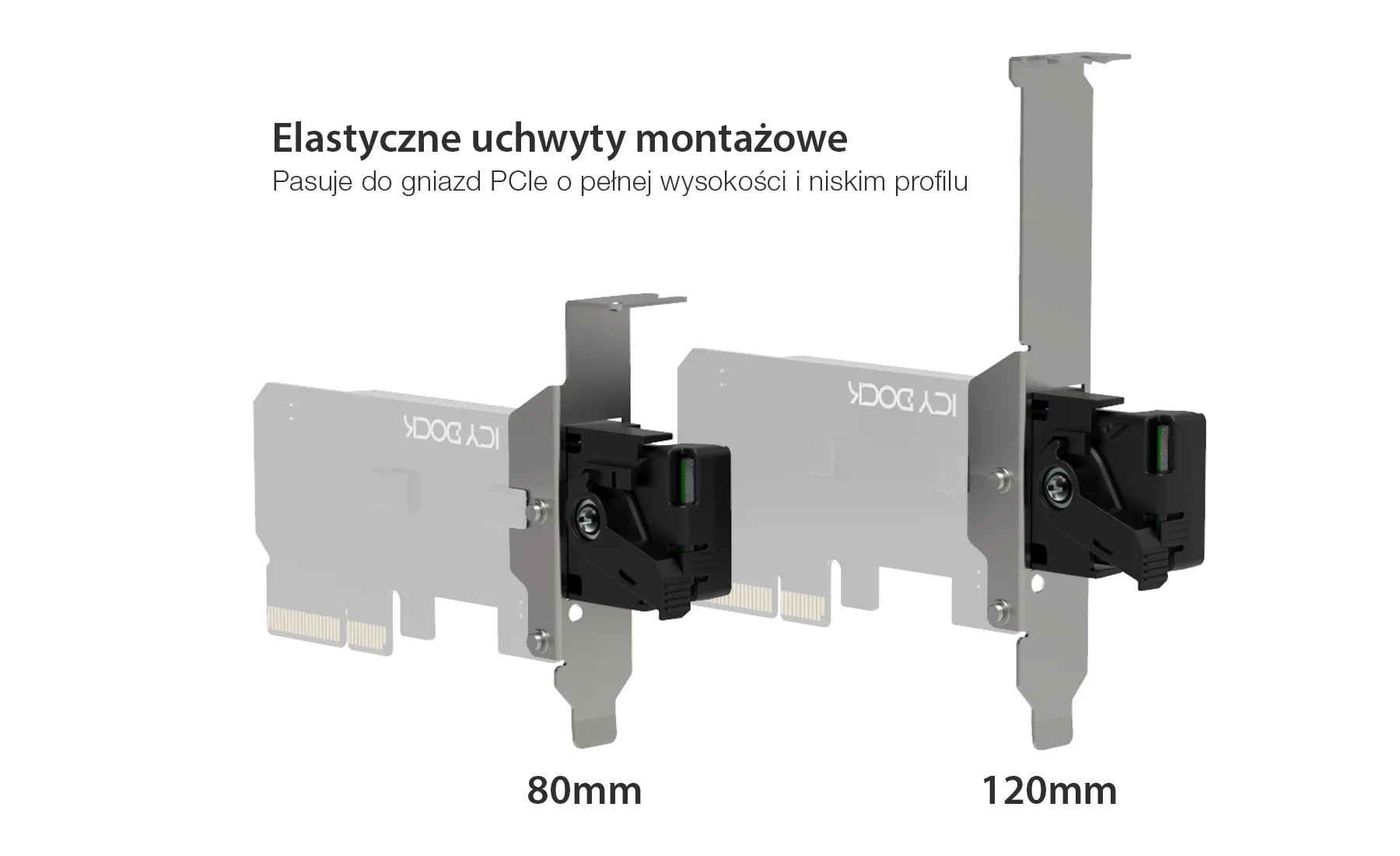

  • Wspornik slotu PCIe w MB305M4P-B można zamienić między pełną a połowiczną wysokością, aby zapewnić elastyczną instalację systemu. Użyj wspornika o połowie wysokości z niskoprofilowym systemem i użyj wspornika o pełnej wysokości do standardowych systemów stacjonarnych, wybór należy do Ciebie.
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA & UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ExpressSlot Core MB305M4P-B
TAA Trade Agreements Act Compliance
UL Safety Standard Certification
UL94 Flammability of Plastic Materials
FCC Federal Communications Commission Compliance
Wide Temperature MIL-STD-810H - Method 501.7 & 502.7
Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries, please contact us at tech@icydock.com

Cechy główne
Obsługa PCIe 4.0 x4 z prędkością transferu do 64 Gb/s

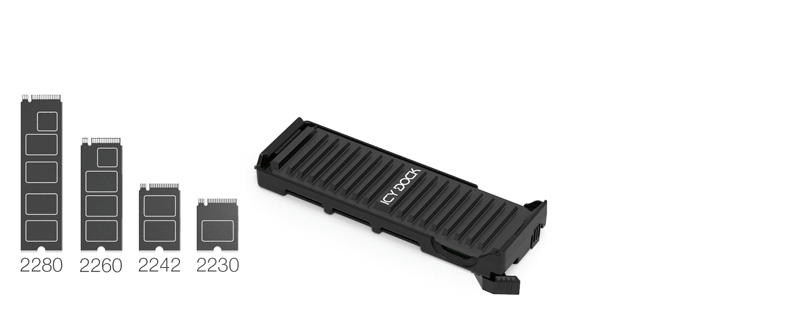

Obsługuje 1 x M.2 PCIe NVMe SSD (długość 30-80 mm) w formatach 2230, 2242, 2260 i 2280.

Interfejs PCIe 4.0 x4, kompatybilny również z gniazdami x8 i x16

Instalacja w gnieździe rozszerzeń PCIe o pojedynczej szerokości, pełnej wysokości lub połowie wysokości

Wyjmowana beznarzędziowo tacka M.2 NVMe SSD dla szybkiej i łatwej konserwacji dysków SSD

Pokrętło szybkiego zwalniania umożliwia szybkie wyjmowanie i instalowanie tacki SSD

Aluminiowa pokrywa radiatora i dołączona podkładka termiczna zapewniają optymalne rozpraszanie ciepła

Active Power Technology (APT) do oszczędzania energii, gdy urządzenie nie jest używane

Szybki interfejs PCIe, który zmniejsza bałagan i zapewnia zarówno zasilanie, jak i transfer danych

Wskaźnik LED aktywności dysku do monitorowania stanu SSD

Opcjonalne wyjście sygnału aktywności dysku twardego umożliwia przesyłanie sygnału aktywności dysku do obudowy komputera

3-letnia gwarancja chroniąca inwestycję

Bezpłatne wsparcie naszego wysoko wykwalifikowanego zespołu technicznego


Specyfikacja
Model Number : MB305M4P-B
 Color : Black
Support Drive Size : M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280
Compatible Drive Type : M.2 PCIe 3.0/4.0 NVMe SSD
Number of Drives : 1
Drive Bay : 1 x PCIe 3.0 or 4.0 x4 / x8 / x16 expansion slot
Host Interface : PCIe 4.0 x4
Power Input : Via PCIe
Transfer Rate : Up to 64Gbps (depending on hard drive speed)
Support SSD Capacity : No limitation
Drive Cooling : Metal heat dispersion with passive cooling
Material : Metal IO bracket/cover with PCBA and plastic shield
Product Dimension (W x H x D) : 112.4 x 21.6 x 120.9 mm
Product Net Weight : 51.2g
Package Gross Weight : 154.3g
Drive Activity LED Indication : Device power: solid blue
Device activity: flashing blue
Empty: LED off
Package Contents : Device, user manual, thermal pads, M.2 SSD mounting clips, screws
Connector Insertion Rate : 5,000
Humidity : 5%~65% RH
Operating Temperature : 0°C to 60°C
Storage Temperature : -35°C to 70°C
Compliance : CE, RoHS, REACH
Warranty : 3 years


Powiązane serie produktów:

  • NVMe Enclosures
  • Space-Saving Enclosures

FAQ

Q: Why does my new NVMe SSD show performance degradation or inconsistent behavior when connected through a PCIe adapter mobile rack?

A: High-speed PCIe devices, such as NVMe SSDs, require precise and stable signal integrity to operate correctly. If your NVMe SSD is connected via a PCIe adapter mobile rack that is inserted into a CPU-connected PCIe slot far from the CPU, the longer motherboard traces can increase the risk of signal degradation. This degradation can cause your NVMe SSD to experience performance drops, instability, or inconsistent behavior.

To ensure optimal performance, it is strongly recommended to install the PCIe adapter mobile rack into a PCIe slot closest to the CPU. Doing so minimizes the physical distance for signal transmission, significantly reducing the potential for signal degradation and ensuring stable, consistent performance and expected transfer speeds.


Q: The system does not detect the M.2 SSD I installed in the ICY DOCK enclosure. What should I do?

A: Since the M.2 SSD is not designed for hot-swapping, we highly recommend powering off the device/system before inserting or removing an M.2 SSD. If the system is still unable to detect the drive, follow the steps below to scan for new hardware manually:



Windows 11 / Windows 10 / Windows 8 – In the search box on the taskbar, type device manager, and click it from the menu. Once the device manager window pops up, right-click on the disk drive icon, and click scan for hardware changes.



Windows 7 – Right-click on the computer icon on the desktop, select properties, click device manager, right-click on the disk drive icon and then click scan for hardware changes.


Image result for disk drive scan for hardware changes




Q: Is the ICY DOCK NVMe enclosure supporting the PCIe 4.0 standard?

A: Yes, all ICY DOCK NVMe enclosures support the PCIe 4.0x4 standard, with up to 64Gbps transfer rates.


Q: I'm having the difficulties closing the lid of the drive tray and unable to insert the drive tray all the way to the drive enclosure after placing the M.2 SSD onto the drive tray.

A: Make sure to lock the M.2 SSD with the adjustable M.2 locker. The tray lid will not close properly if the M.2 locker is not fully secured. If you are having difficulty secure the M.2 locker or close the cover, the M.2 SSD you are using may not follow the standard M.2 SSD thickness, which is less than 1.5mm height for each side with a total height that does not exceed 3.8mm. Using the M.2 SSD with non-standard thickness will cause improper tension on the M.2 locker and tray lid and make the M.2 connector misaligned. If you are having issues inserting the drive tray to the enclosure, please stop the operation immediately and check the drive thickness to ensure it follows the standard M.2 SSD thickness - less than 1.5mm height for each side and less than 3.8mm for total height.

Metal heat dissipation sticker



Note: Some M.2 SSD uses a metal heat dissipation sticker that causes each side's thickness more than the 1.5mm. Remove the sticker will solve the problem, but do it at your own risk (might void the warranty of SSD)



ICY DOCK enclosure is design to be compatible with M.2 SSD that has standard thickness. We highly recommend checking the drive thickness before purchase, and please refer to the incompatible M.2 SSD list below for further information:



M.2 NVMe SSDs known to be incompatible due to physical fitment with ICY DOCK enclosure:




Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.

Click here to report a compatible/incompatible M.2 SSD.


Q: I want to see the drive status from the front panel on PC case/chassis. What should I do?

A: There is a 2-pin front panel header(s) on the PCBA of the product. The drive status can be displayed from the front panel after connecting the front I/O wire to the corresponding 2-pin header of the product. For detailed connected methods, please refer to the user manual of the PC case/chassis.

Drive Status LED Indication
Power Solid Light
Drive Access Flashing Light

Note: The I/O wire connected to the PC case/chassis are not included in the product package.


Q: When I install the card to my system, my system refuses to boot or go into BIOS?

A: Check to see if there are any BIOS updates for the motherboard of the system. A few restarts after updating BIOS may be needed before MB305M4P-B is usable. Follow the instructions on BIOS updates with the manufacturer of the motherboard. If issue still persist after BIOS update, please contact us.
