Optional Certifications Available for ToughArmor MB994SK-1B | |
TAA | Trade Agreements Act Compliance |
UL | Safety Standard Certification |
UL94 | Flammability of Plastic Materials |
FCC | Federal Communications Commission Compliance |
Wide Temperature | MIL-STD-810H - Method 501.7 & 502.7 |
• |
Wytrzymała, metalowa konstrukcja dla zastosowań medycznych, wojskowych, serwerów multimedialnych i IPC
|
• |
Mieści 4x 2,5” HDD/SSD SATA/SAS w jednej 5,25” zatoce
|
• |
Wsparcie SATA 6 Gbps lub jeden kanał SAS
|
• |
Mieści dyski o wysokości od 7 do 15 mm
|
• |
Active Power Technology – zasilanie włączone tylko wtedy, gdy dysk znajduje się wewnątrz
|
• |

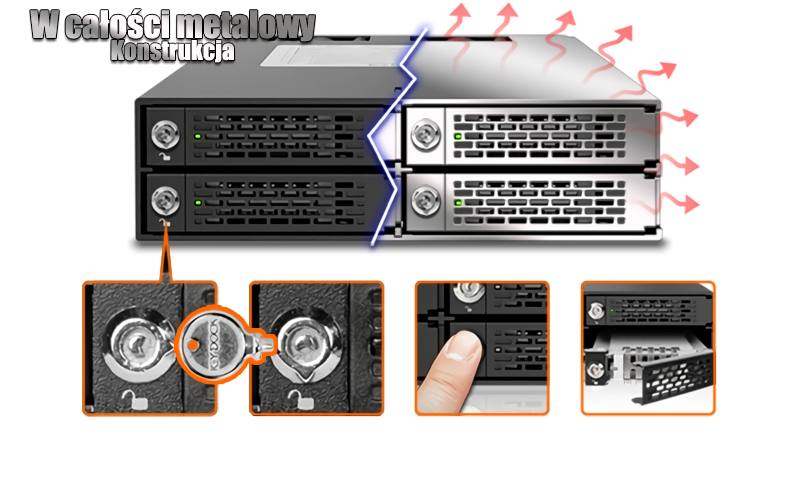

System blokady Eagle Hook i wykonany na zamówienie stalowy zamek gwarantuje bezpieczeństwo dysków
|
• |

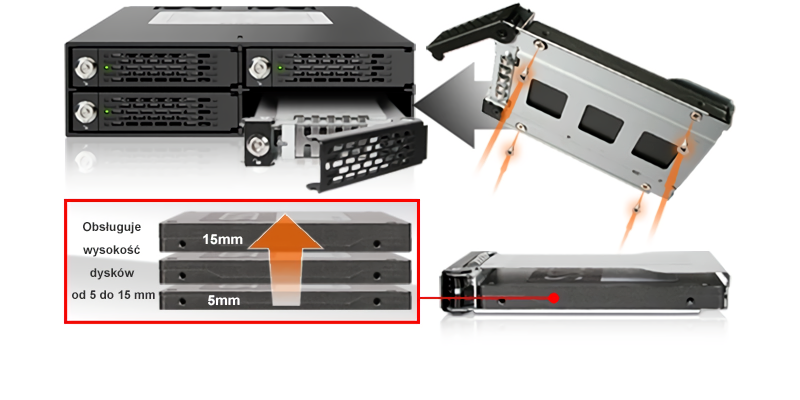

W pełni metalowe tace EZ Slide Mini z wbudowaną osłoną ochronną i blokadą
|
• |
System wymiennych tac EZ Slide Mini dla łatwej konserwacji
|
• |
Idealny dla trudnych zastosowań i zgodny z wymaganiami palności
|
• |
Indicator LED provided for each bay
|
• |
Wskaźnik LED dla każdej zatoki
|
• | Podwójne 40-milimetrowe wentylatory |
Model Number: | MB994SK-1B |
Color: | Black |
Support Drive Size: | 2.5" SSD / HDD |
Compatible Drive Type: | SATA / single channel SAS (SAS host required) |
Number of Drives: | 4 |
Max Drive Height: | 15mm |
Drive Bay: | 1 x external 5.25" drive bay |
Host Interface: | 4 x SATA 7pin |
Power Input: | 2 x molex 4 pin power |
Transfer Rate: | SATA 3.0 up to 6Gbps / SAS 3.0 up to 12Gbps |
Support HDD Capacity: | No limitation |
Drive Cooling: | 2 x 40mm fan |
Structure / Material: | Full metal |
Support Hot-Swap: | Yes |
Drive Security: | 2 segment key lock |
Product Dimension (L x W x H): | 170 x 146 x 41.3mm |
Product Net Weight: | 768g |
Package Gross Weight: | 847.3g |
Drive Activity LED Indication: | Drive power: solid green LED; HDD access: flashing amber LED |
Package Contents: | 1 - device, 1 - user manual, 26 - screw, 2 - key |
SATA Connector Insertion Rate: | 10,000 |
Humidity: | 5%~65% RH |
Operating Temperature: | 0°C to 60°C (32°F to 140°F) |
Storage Temperature: | -35°C to 70°C (-31°F to 158°F) |
Compliance: | CE, RoHS, REACH |
Warranty: | 5 years limited warranty |

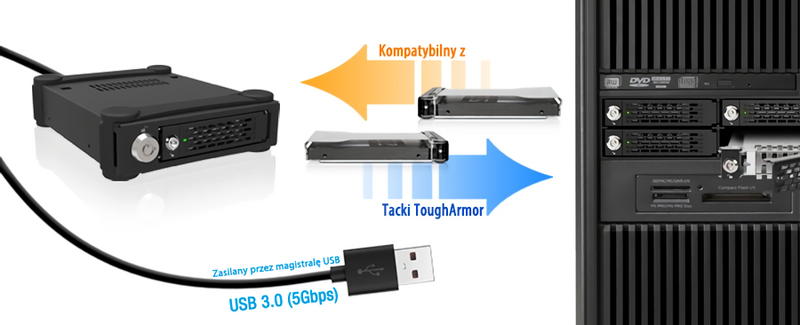

Compatible Drive Tray (Caddy):
Related Products:
Related Products Series:
Quick Link:
Q:The mounting screws for the device seem to be too short to secure the device onto my system, what should I do?
A: For computer cases that have a thick metal sheet, the included mounting screws (M3*2.5L) may not fully secure the device. Please use longer screws (M3*4L) to secure the device or contact us at tech@icydock.com for replacement screws.
Q: I feel that the drive tray's upper and lower metal spring is stuck when inserting the drive tray. What should I do?
A: Remove the drive tray from the enclosure and reinsert the tray without putting excessive pressure on the metal mesh sheet in front of the tray. Excessive force on the front metal mesh sheet may bend the top and bottom metal spring, causing difficulties when inserting the drive tray. Therefore, please do not forcingly insert the drive tray when this happens as it may cause damage to the metal spring.
![]() |
Please DO NOT put excessive pressure on the metal mesh sheet as shown |
