Powiązane modele:
| Opcjonalne certyfikaty dostępne dla ToughArmor MB998IP-B | |
| TAA | Zgodność z Trade Agreements Act |
| UL | Certyfikacja standardów bezpieczeństwa |
| UL94 | Palność materiałów z tworzyw sztucznych |
| FCC | Zgodność z przepisami Federal Communications Commission |
| Szeroki zakres temperatur | MIL-STD-810H - Method 501.7 & 502.7 |
|
*
|

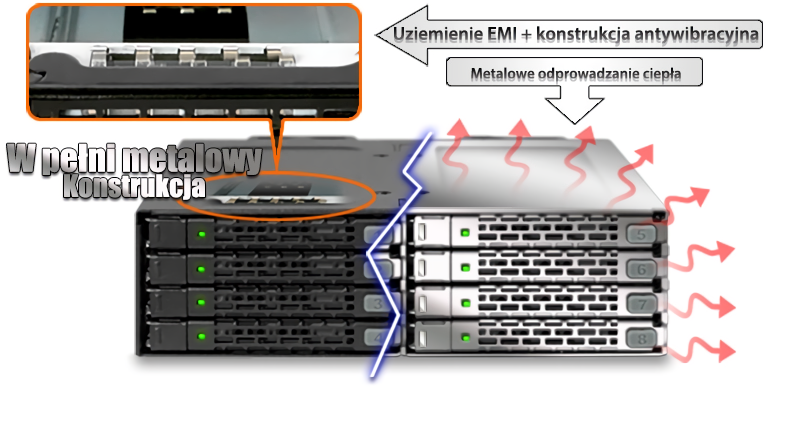

Rugged Heavy duty full metal construction with commercially designed for medical &military systems, media servers, workstation, HPCs and IPCs, approved & used by Tier 1 companies
|
|
*
|
Perfect for rugged applications and complies to flammability requirements
|
|
*
|
Fits 8 x 5mm to 7mm 2.5” SATA hard drives or SSD’s in a single external 5.25” bay for high performance RAID applications
|
|
*
|

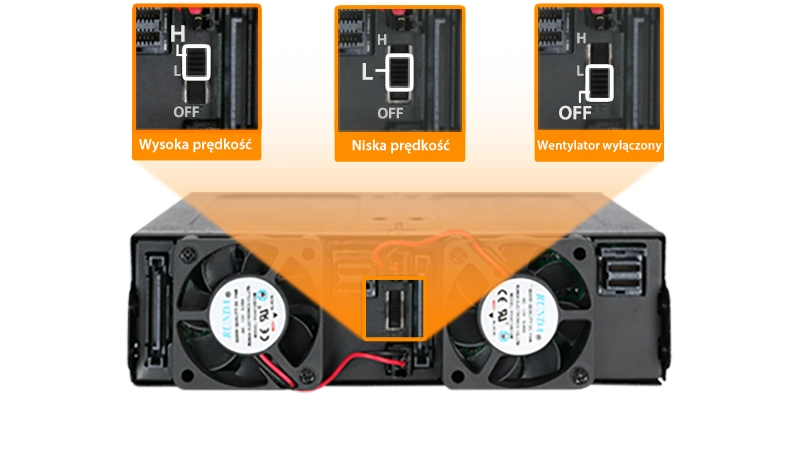

Dual 40mm user-controllable fans, with settings for high, low, and off
|
|
*
|

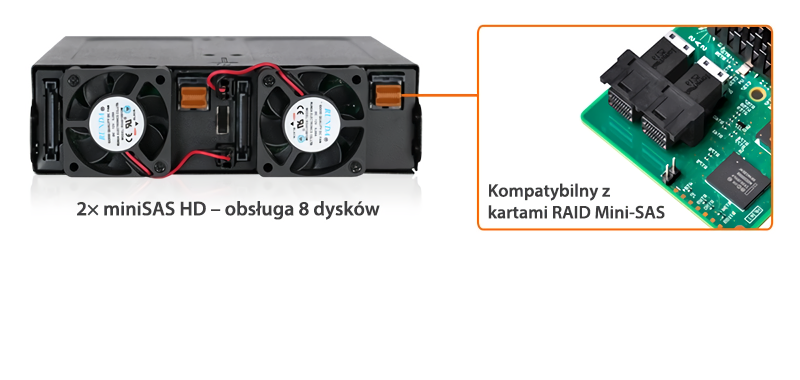

Connected by 2x Mini-SAS HD data cables for all 8 bays, for plug-and-play compatibility with most motherboards and RAID cards
|
|
*
|
Requires only 2 x 15pin SATA power connectors to power all 8 bays (drives)
|
|
*
|
Drive label plugs to keep track of your RAID drives
|
|
*
|
Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs
|
|
*
|

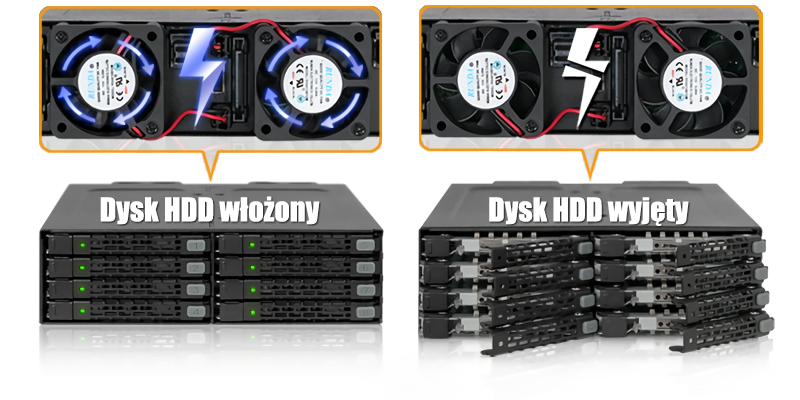

Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay
|
|
*
|

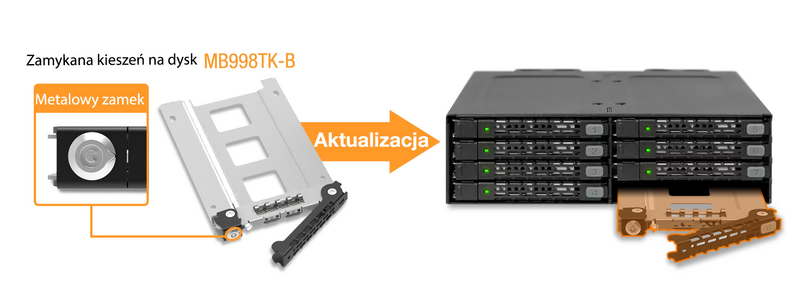

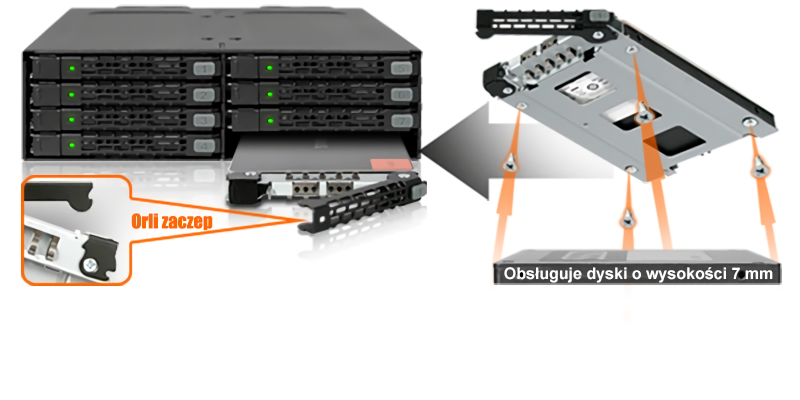

Eagle-hook lock system keeps drives secured within the enclosure
|
|
*
|
Removable tray system for easy maintenance
|
|
*
|
Supports SAS12Gbps (single channel)&SATA 6Gbps and hot-swap
|
|
*
|

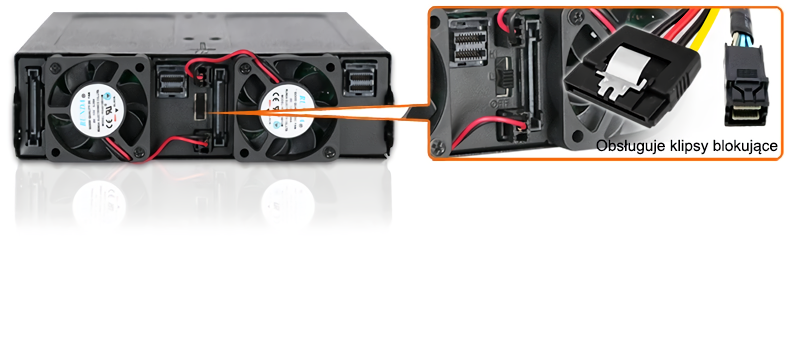

Supports MiniSAS HD and SATA power cables with locking latch design
|
|
*
|
Industry leading 5 year warranty with exceptional customer support
|
| Model Number： | MB998IP-B |
| Color： | Black |

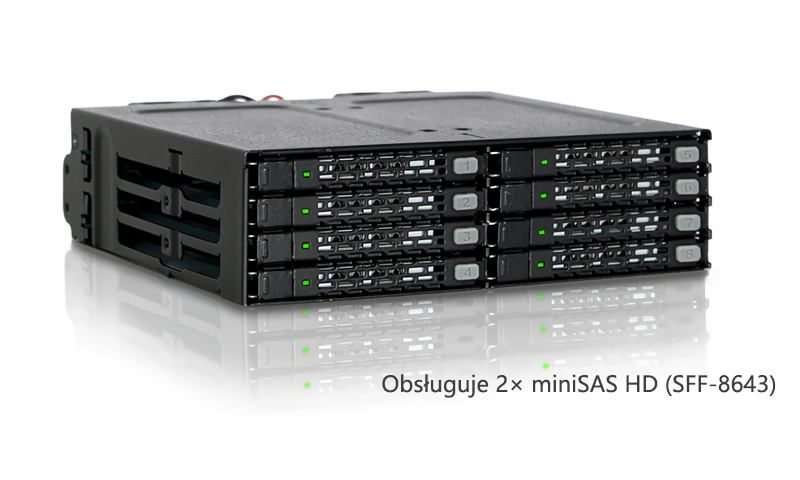

| Host Interface： | 2 x miniSAS HD 8643 |
| Drive Fit： | 8 x 2.5" SAS / SATA SSD or HDD (5 to 7mm drive height) |
| Device Fit： | Single external half height 5.25" bay |
| Transfer Rate： | SATA up to 6 Gb/sec. (depending on hard drive speed) SAS 3.0 up to 12Gbps (single channel) |
| Power Input： | 2 x 15pin SATA power port |
| Insert& Extract connection Via： | Direct SATA hard drive connection |
| Structure： | Metal |
| Drive Cooling： | Dual 40mm rear cooling fan Metal heat dispersion |
| Power Indicator： | Solid green LED |
| HDD Access Indicator： | Flashing green LED |
| Structure / Material： | Full metal |
| Support Hot-Swap： | Yes |
| Dimension (L x W x H)： | 142 x 146 x 41.3mm |
| Product Net Weight： | 872g |
| Package GrossWeight： | 985.7g |
Compatible Drive Tray (Caddy):
Related Products Series:
Quick Link:
Q: The mounting screws for the device seem to be too short to secure the device onto my system, what should I do?
A: For computer cases that have a thick metal sheet, the included mounting screws (M3*2.5L) may not fully secure the device. Please use longer screws (M3*4L) to secure the device or contact us at tech@icydock.com for replacement screws.
Q: Can I replace the cooling fan attached to the device? Will doing that void the warranty?
A: The cooling fan we used has been thoroughly tested with the drive enclosure to ensure it functions properly and supports the fan speed control (for select models). Therefore, we suggest our customers keep the original fan for the best result. However, we understand the stock fan may not be suitable for all the applications, so we elected to honor the warranty when 3rd party fan is using. The warranty may void if the 3rd party fan causes electrical damage to the device, though.
Q: Which specification should I check before buying the 3rd party cooling fan?
A:The following information is the fan specification requirement and compatible fan models for MB998IP-B
| Fan Dimension (LxWxH) | 40 x 40 x 10mm | 40 x 40 x 20mm |
| Connector Type | 3 Pin Wafer | |
| Rated Voltage (VDC) | 12V DC | |
| Rated Current (A) | < 0.12A (127mA) | |
| Screw Specification | Phillips Flat Head - M3 x 15mm - Steel (Came with stock fan) |
Phillips Flat Head - M3 x 25mm – Steel (Not Included) |
Compatible fan models
(without test, use it at your own risk)
