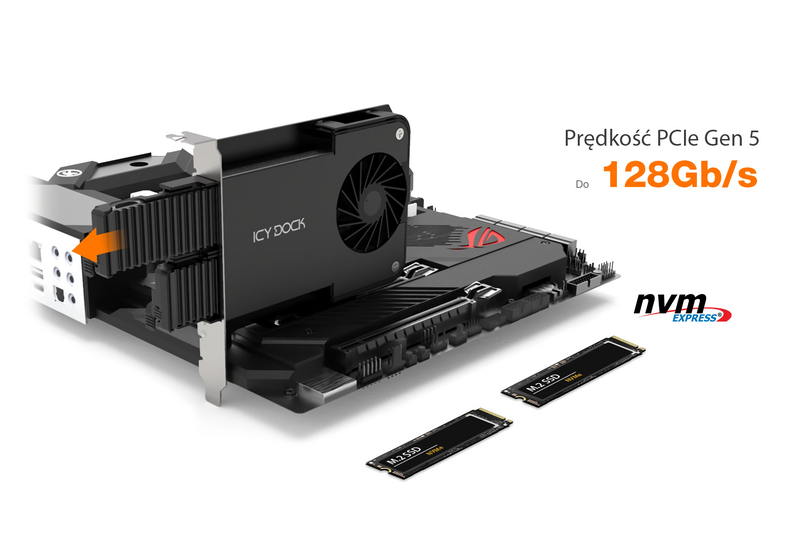

| • | Fits 2 x M.2 NVMe SSD with drive lengths from 30mm to 80mm (2230 / 2242/ 2260 / 2280 / 2580) in a single PCIe x8 expansion slot (Full-height, half-length) |
| • | 1 x PCIe x8 / x16 expansion slot (motherboard bifurcation required: PCIe x8 slots bifurcated into x4/x4 or PCIe x16 slots bifurcated into x4/x4/x4/x4) |

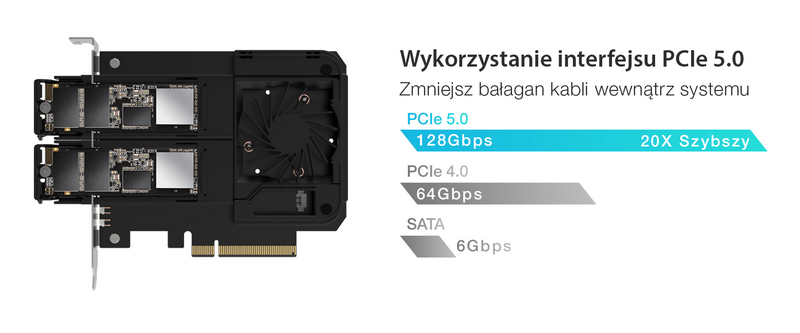

| • | Supports PCIe 5.0 x4 transfer speeds up to 128Gbps per M.2 NVMe PCIe 5.0 x 2 SSD |
| • | Removable drive tray with tool-less drive installation design for easy drive maintenance |
| • | Integrated individual M.2 drive heat sinks and thermal pads for max heat dissipation |

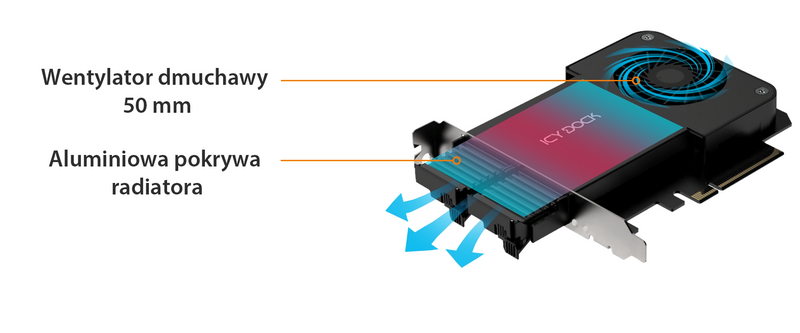

| • | Equipped with a 50mm blower fan offers maximum cooling to M.2 NVMe SSD |

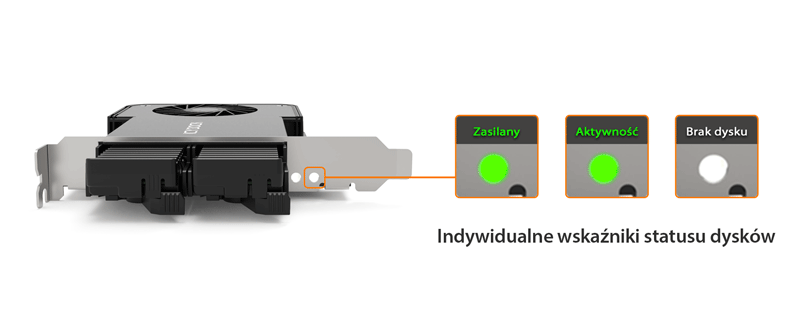

| • | Individual drive activity LED indicator (Solid green for power and flashing green for drive activity) |
| • | Active Power Technology (APT) saves energy by turning the fan and LED lights off when no drive is installed |
| • | Optional 4-pin drive signal output header to connect chassis or external LED panel |
| Model Number： | CP073-1 |
| Color： | Black |
| Host Interface： | 1 x PCIe 5.0 x8 golden finger |
| Drive Bay： | 1 x PCIe x8 / x16 expansion slot (motherboard bifurcation required: PCIe x8 slots bifurcated into x4/x4 or PCIe x16 slots bifurcated into x4/x4/x4/x4) |

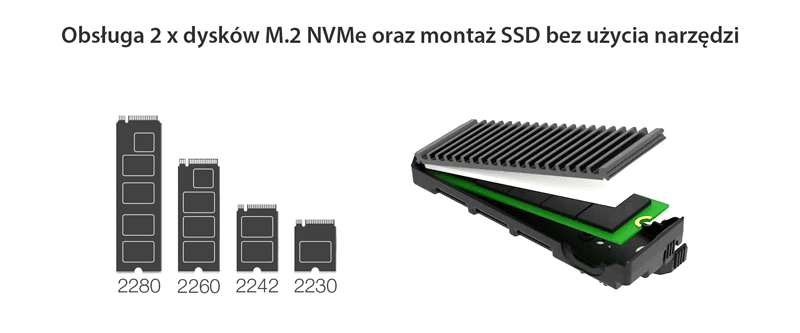

| Drive Fit： | 2 x M.2 NVMe PCIe SSD (compatible with 2230 / 2242 / 2260 / 2280 ) |
| Device Fit： | 1 x Single PCIe x8 slot |
| Maximum Transfer Rate： | PCIe 5.0 x4 up to 128Gbps per SSD |
| Power Input： | Via PCIe golden finger and PCIe 6 Pin |
| SSD Access Indicator： | Device power: solid green Device activity: flashing green Empty: LED off |
| Fan Type： | 1 x 50mm blower |
| Heatsink： | Yes, black aluminum |
| Structure： | Metal IO bracket/cover with PCBA and plastic shield |
| Package Content： | Device, user manual, 2 x thermal pad |
| Dimension (W x H x D)： | (TBD) |
| Weight ： | 180g (TBD) |
