Q: How can I ensure my motherboard is compatible with the MB842MP-B and can detect and read the two NVMe SSDs installed in it?

A: Your motherboard must meet the following criteria to recognize and read two NVMe SSDs:

Step 1: Open the motherboard compatibility list and locate your motherboard model. As an example, we will use the ASUS AMD TUF GAMING B450-PLUS II motherboard.

×

Step 2: Once you find your motherboard model, check the PCIe slot that can support the MB842MP-B based on the CPU you are using. For the ASUS AMD TUF GAMING B450-PLUS II, if you are using AMD Ryzen 1000/2000/3000/5000 series or 2000/3000 G-Series CPUs, the PCIEX16_1 slot on the motherboard can support the MB842MP-B. However, if you are using an AMD Ryzen 4000/5000 G-Series CPU, none of the PCIe slots will support the MB842MP-B.

Important Notes:

1. The method to check compatibility with Intel motherboards follows the same steps as the AMD example above.
2. PCIe slots share PCIe lanes, and the PCIe Bifurcation mode varies based on the PCIe slot's position. Not all empty PCIe slots have enough lanes for the MB842MP-B. If you have already installed devices such as GPUs, RAID, or HBA adapter cards, please check whether the remaining PCIe slots can support the MB842MP-B.



To report a compatible or incompatible motherboard, or to check the compatibility of a motherboard not listed, please click here

Q: The system does not detect the M.2 SSD I installed in the ICY DOCK enclosure. What should I do?

A: Since the M.2 SSD is not designed for hot-swapping, we highly recommend powering off the device/system before inserting or removing an M.2 SSD. If the system is still unable to detect the drive, follow the steps below to scan for new hardware manually:

Windows 11 / Windows 10 / Windows 8 – In the search box on the taskbar, type device manager, and click it from the menu. Once the device manager window pops up, right-click on the disk drive icon, and click scan for hardware changes.

Windows 7 – Right-click on the computer icon on the desktop, select properties, click device manager, right-click on the disk drive icon and then click scan for hardware changes.

Q: Is the ICY DOCK NVMe enclosure supporting the PCIe 4.0 standard?

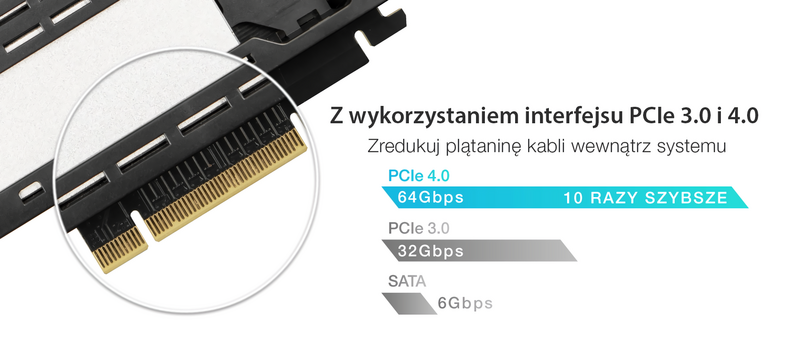

A: Yes, all ICY DOCK NVMe enclosures support the PCIe 4.0x4 standard, with up to 64Gbps transfer rates.

Q: I'm having the difficulties closing the lid of the drive tray and unable to insert the drive tray all the way to the drive enclosure after placing the M.2 SSD onto the drive tray.

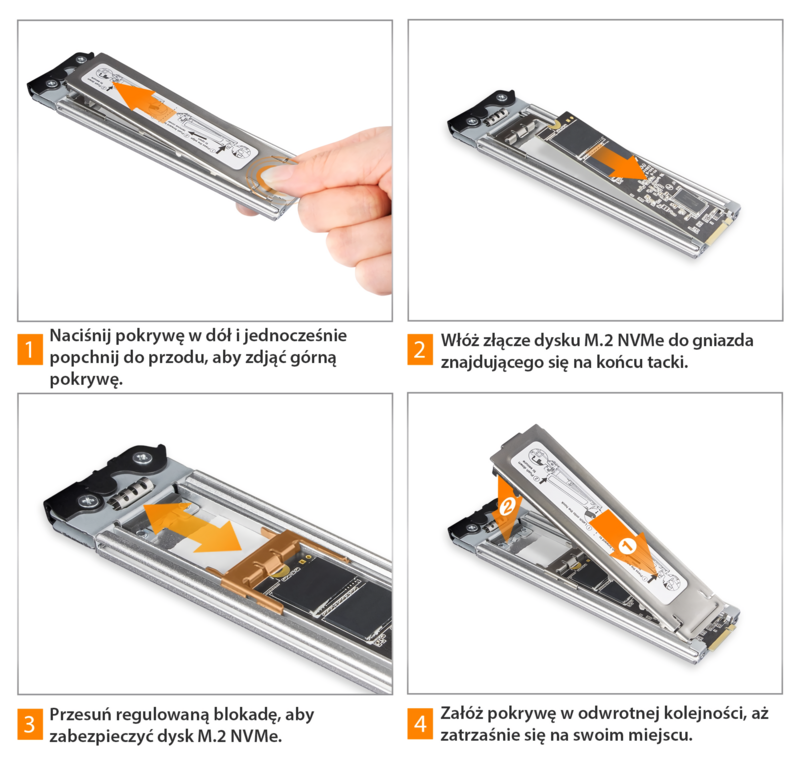

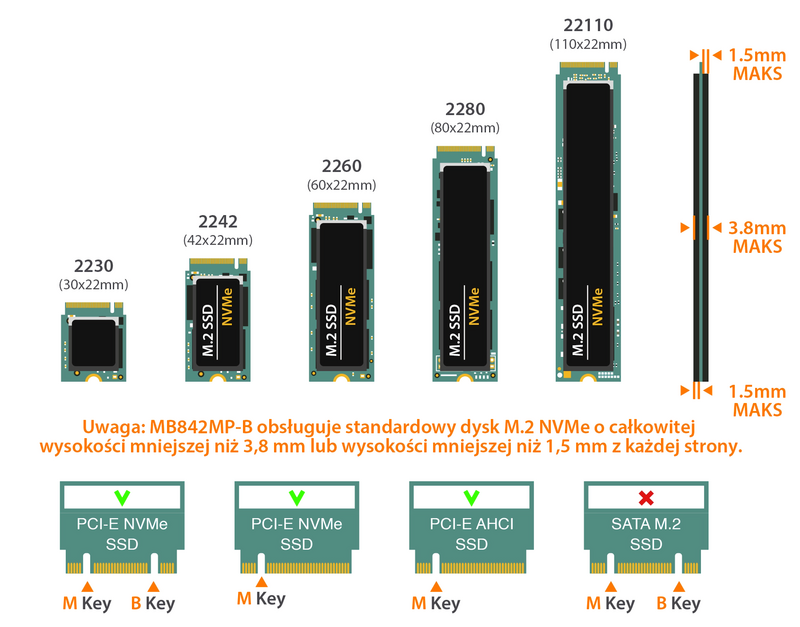

A: Make sure to lock the M.2 SSD with the adjustable M.2 locker. The tray lid will not close properly if the M.2 locker is not fully secured. If you are having difficulty secure the M.2 locker or close the cover, the M.2 SSD you are using may not follow the standard M.2 SSD thickness, which is less than 1.5mm height for each side with a total height that does not exceed 3.8mm. Using the M.2 SSD with non-standard thickness will cause improper tension on the M.2 locker and tray lid and make the M.2 connector misaligned. If you are having issues inserting the drive tray to the enclosure, please stop the operation immediately and check the drive thickness to ensure it follows the standard M.2 SSD thickness - less than 1.5mm height for each side and less than 3.8mm for total height.

Note: Some M.2 SSD uses a metal heat dissipation sticker that causes each side's thickness more than the 1.5mm. Remove the sticker will solve the problem, but do it at your own risk (might void the warranty of SSD)

ICY DOCK enclosure is design to be compatible with M.2 SSD that has standard thickness. We highly recommend checking the drive thickness before purchase, and please refer to the incompatible M.2 SSD list below for further information:

M.2 NVMe SSDs known to be incompatible due to physical fitment with ICY DOCK enclosure:

Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.

Click here to report a compatible/incompatible M.2 SSD.

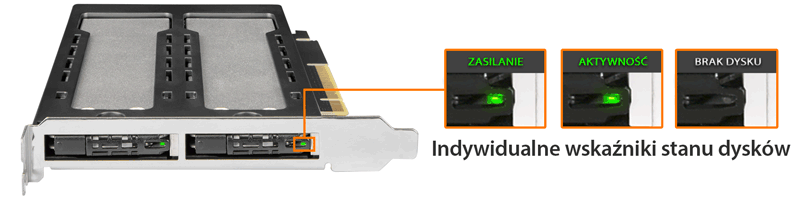

Q: I want to see the drive status from the front panel on PC case/chassis. What should I do?

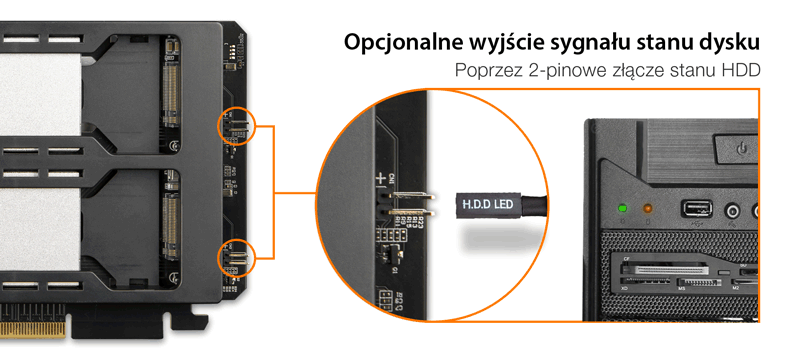

A: There is a 2-pin front panel header(s) on the PCBA of the product. The drive status can be displayed from the front panel after connecting the front I/O wire to the corresponding 2-pin header of the product. For detailed connected methods, please refer to the user manual of the PC case/chassis.

Note: The I/O wire connected to the PC case/chassis are not included in the product package.

Q:When I install the card to my system, my system refuses to boot or go into BIOS?

A:Check to see if there are any BIOS updates for the motherboard of the system. A few restarts after updating BIOS may be needed before MB842MP-B is usable. Follow the instructions on BIOS updates with the manufacturer of the motherboard. If issue still persist after BIOS update, please contact us.
