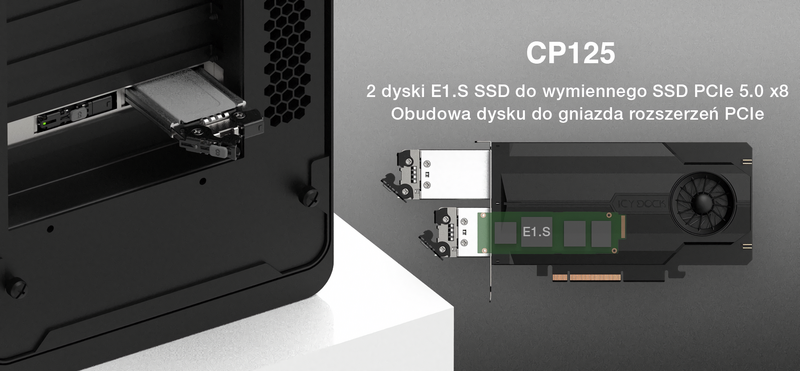

| • | Fits 2 x E1.S NVMe SSD, compatible with 9.5mm thickness. |

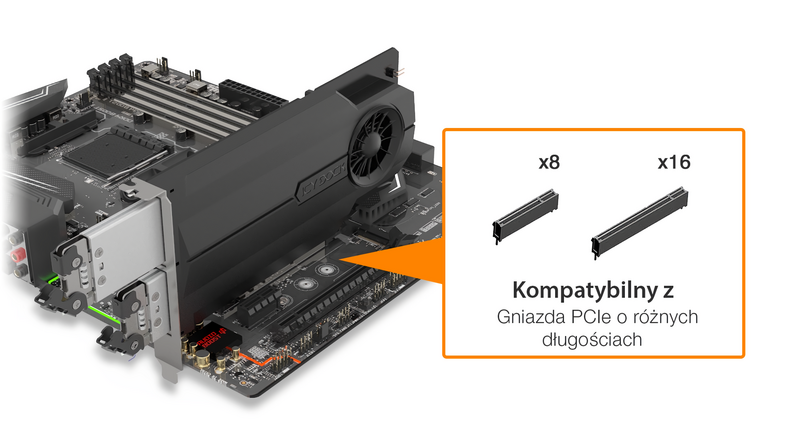

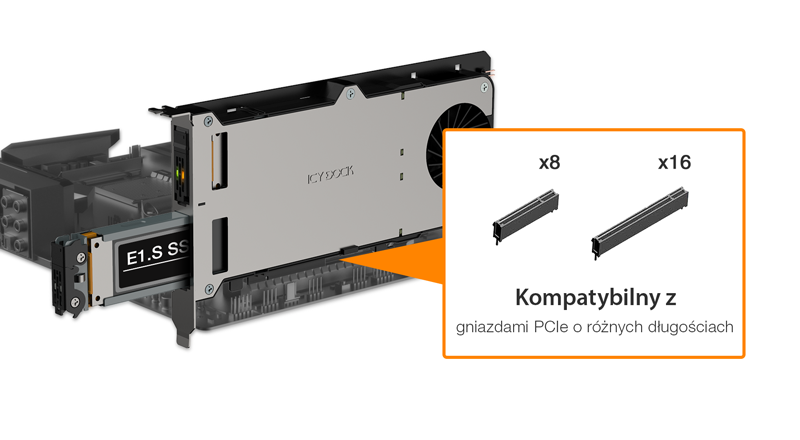

| • | Uses 1x PCIe 3.0/4.0 x8 or x16 slot (PCIe Bifurcation x4, x4, x4, x4 for PCIe 16x and x4, x4 for PCIe 8x is required to access both drives) |

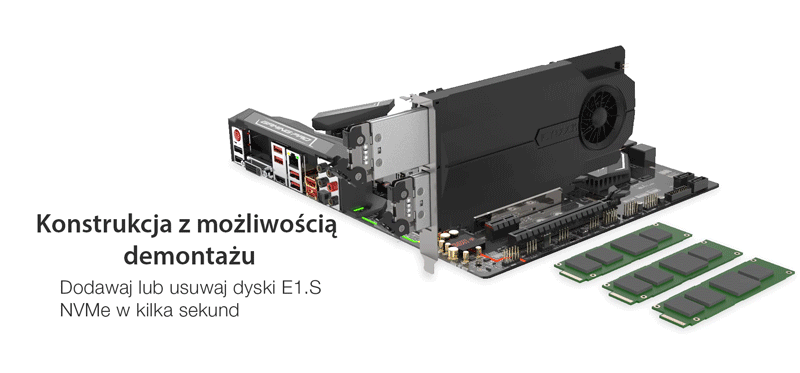

| • | Supports hot-swap/hot-plug E1.S NVMe SSD. |

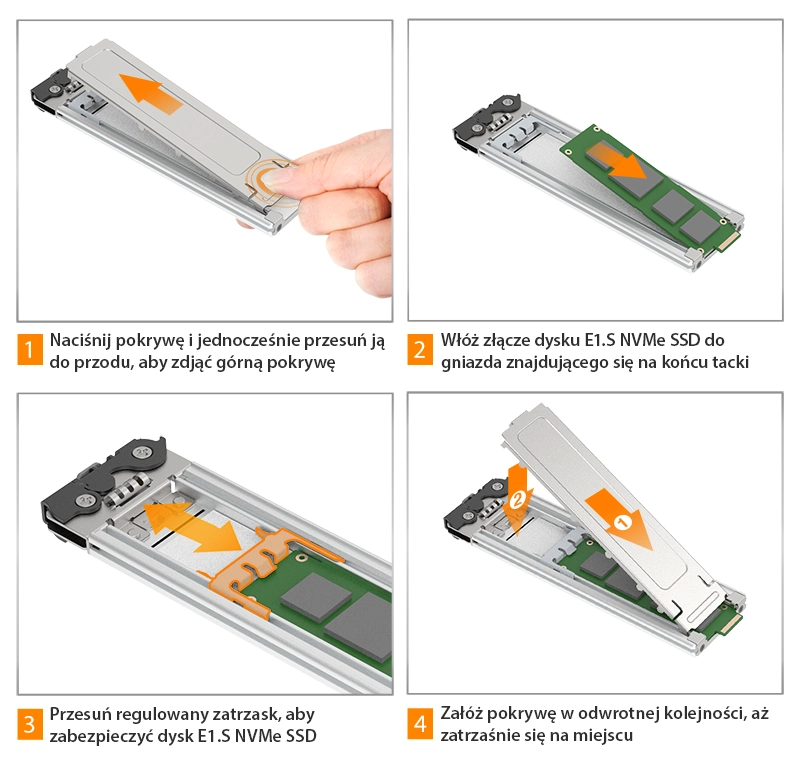

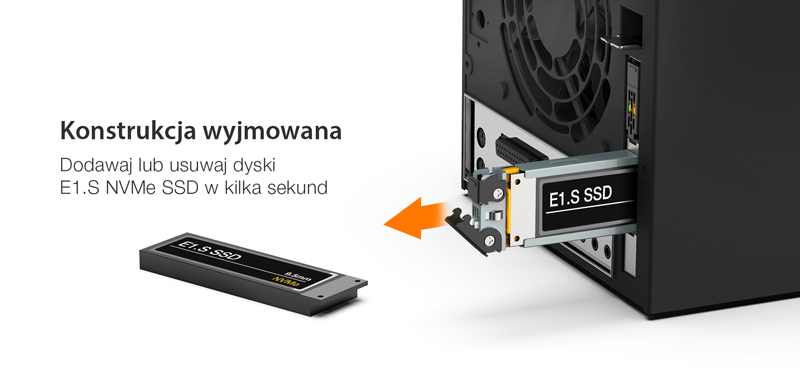

| • | Removable drive tray with tool-less drive installation for easy drive maintenance. |
| • | The eagle-hook lock system keeps the drive secured in the enclosure. |

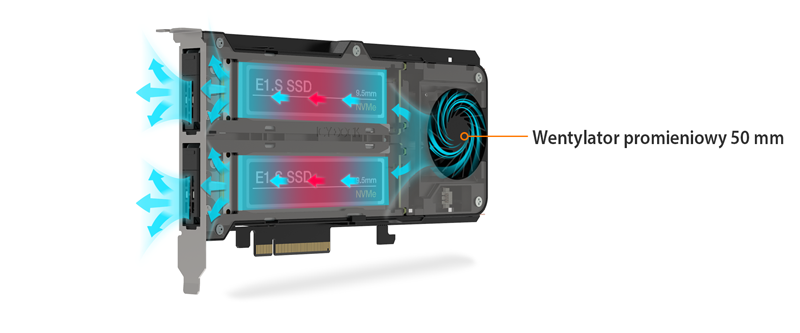

| • | Equipped with a 50mm blower fan for maximum thermal performance. |
| • | The included thermal pad conducts heat from the drive to the metal drive tray. |

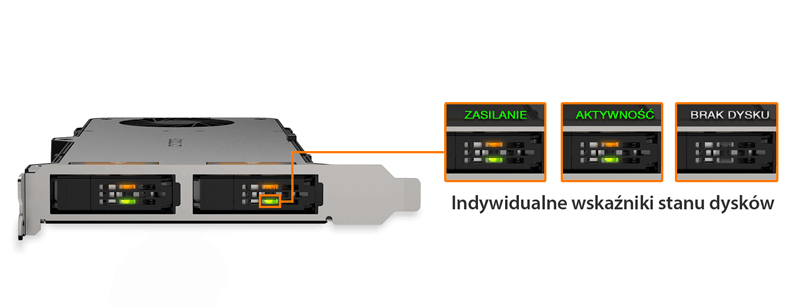

| • | Built-in individual drive power and activity LED light. |

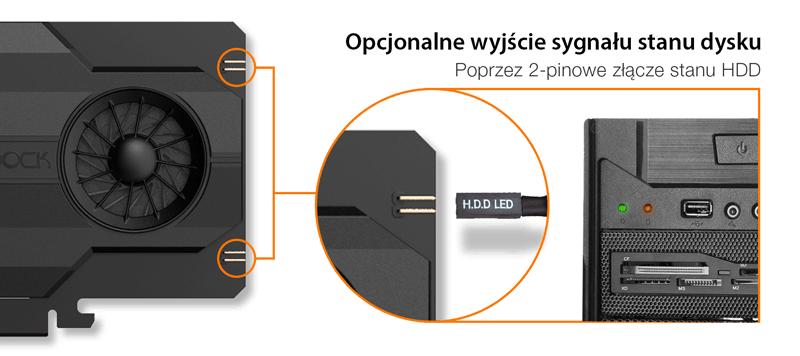

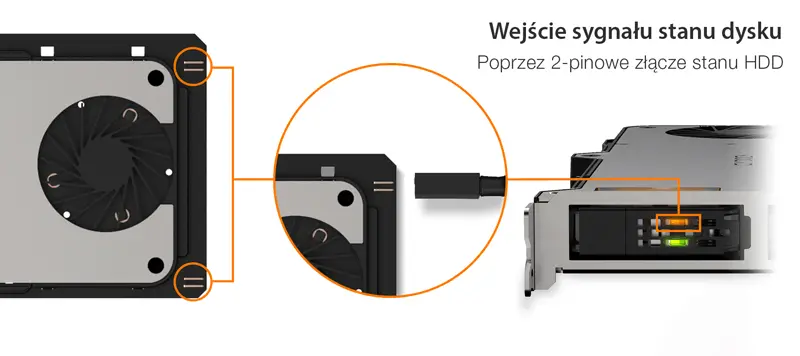

| • | Optional HDD activity signal outputs let you transfer the drive activity signal to the computer case or LED panel. |
| Model Number： | CP125 |
| Available Colors： | Black with silver IO bracket |
| Host Interface： | 1 x PCIe 5.0 x8 golden finger |
| Drive Bay： | 1 x PCIe 3.0 or 4.0 x8 / x16 expansion slot (motherboard required PCIe x8 slots bifurcated into x4/x4 or PCIe x16 slots bifurcated into x4/x4/x4/x4) |

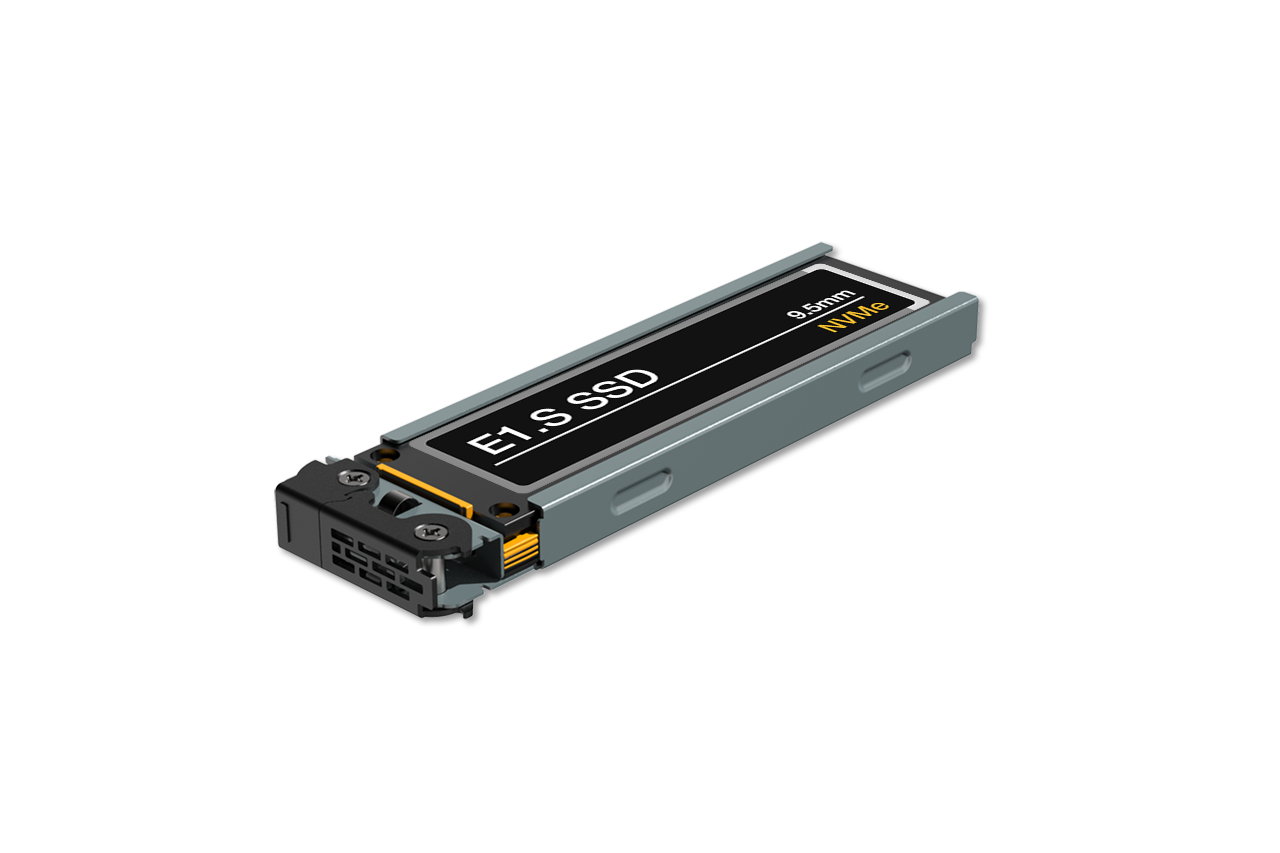

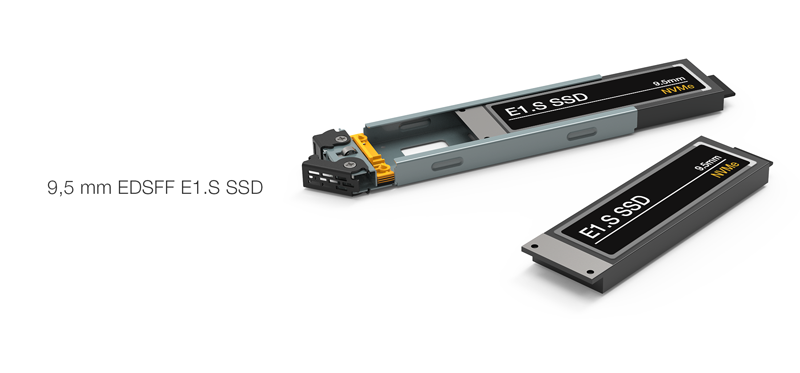

| Drive Fit： | 2 x EDSFF E1.S SSD (compatible with 9.5mm thickness) |
| Device Fit： | 1 x single PCIe x8 slot |
| Maximum Transfer Rate： | PCIe 5.0 x4 up to 128Gbps per SSDs |
| Power Input： |
1 x PCIe power pin |
| Structure： | Metal IO bracket with partial ABS plastic, PCBA and aluminum tray |

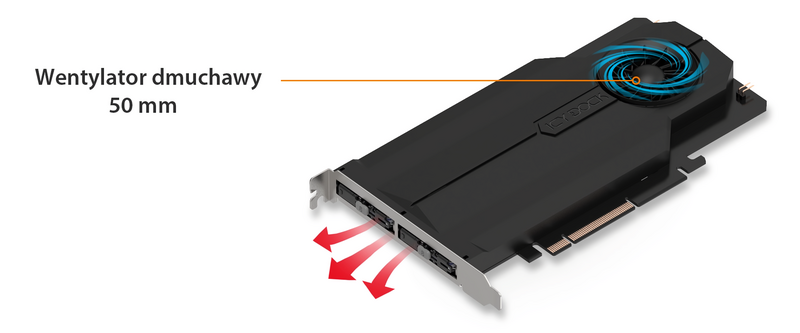

| Cooling System： | 1 x 50mm blower fan |

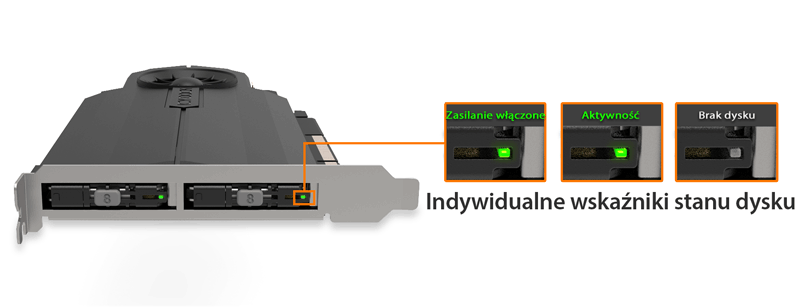

| SSD Access Indicator： | Device power: solid green Device activity: flashing green Device empty: LED off Amber/blue LED defined by host |
| Package Content： | Device, user manual, screw |
| Dimension (W x H x D)： | 197 x 121 x 22 |
| Weight ： | (TBD) |
