| Opcjonalne certyfikaty dostępne dla ToughArmor MB872MP-B | |
| TAA | Zgodność z Trade Agreements Act |
| UL | Certyfikacja standardów bezpieczeństwa |
| UL94 | Palność materiałów z tworzyw sztucznych |
| FCC | Zgodność z przepisami Federal Communications Commission |
| Szeroki zakres temperatur | MIL-STD-810H - Method 501.7 & 502.7 |

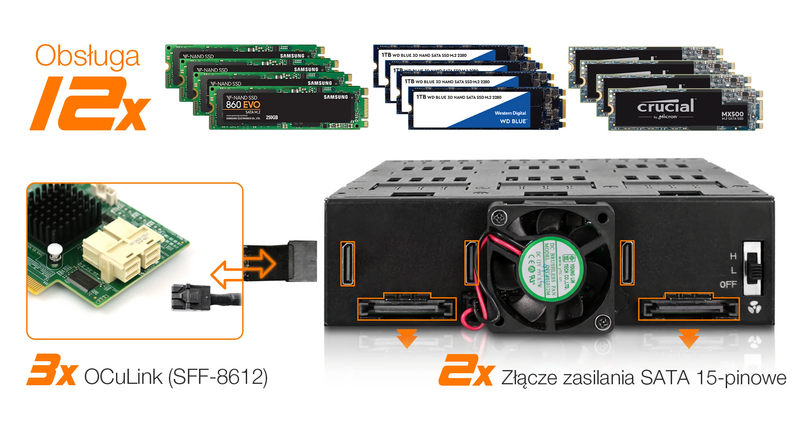

| • | Obsługa 12x M.2 SATA SSD wszystkich rozmiarów (2230, 2242, 2260, 2280 i 22110) |
| • | Zasilanie dwunastu dysków dwoma kablami SATA 15 pin |
| • | Przesył danych z dwunastu dysków trzema kablami SFF-8612 |

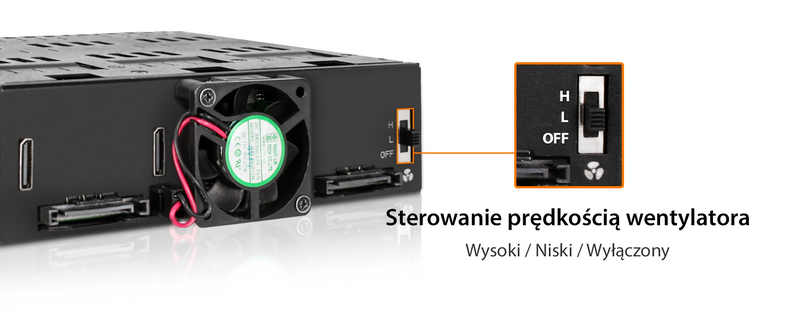

| • | Wentylator 40mm z trzeba trybami pracy |

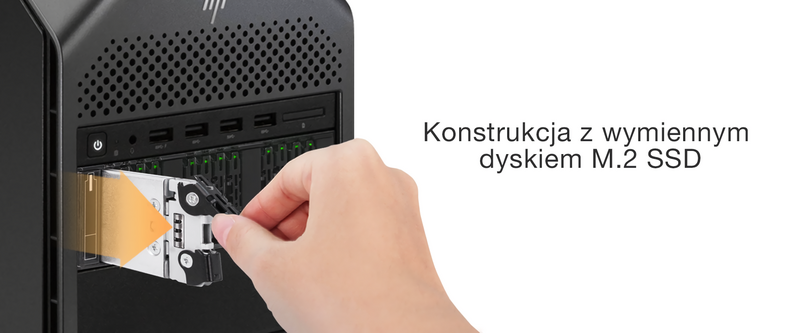

| • | System wymiennych tac dyskowych z beznarzędziowym montażem |

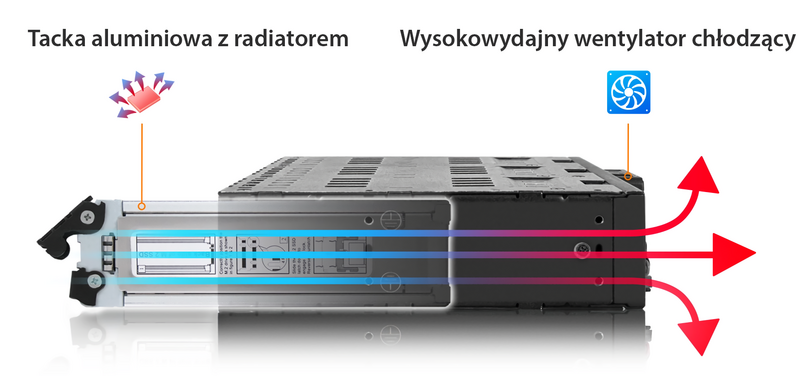

| • | Aluminiowe kieszenie na nośniki działające jak radiator |
| • | Zabezpieczenie przed wibracjami chroniące dyski |
| • | Automatyczne zarządzanie energią odłączające zasilanie gdy żadne nośniki nie są zainstalowane |

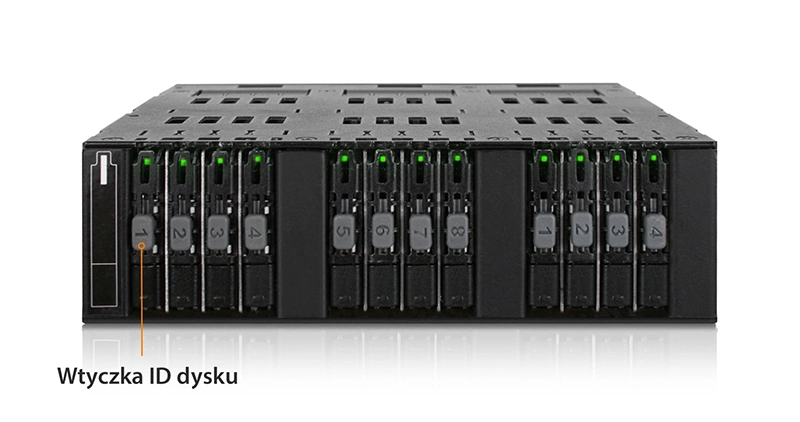

| • | System numeracji tacek ułatwiający organizację |
| • | Zatrzaski Eagle-hook zabezpieczające kieszenie dyskowe przed samoczynnym wysunięciem |

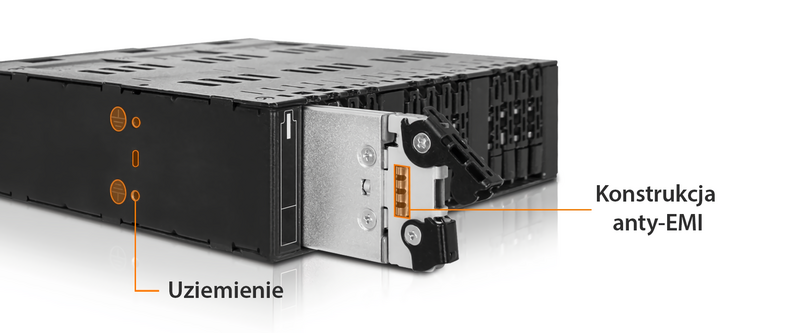

| • | Uziemienie EMI |

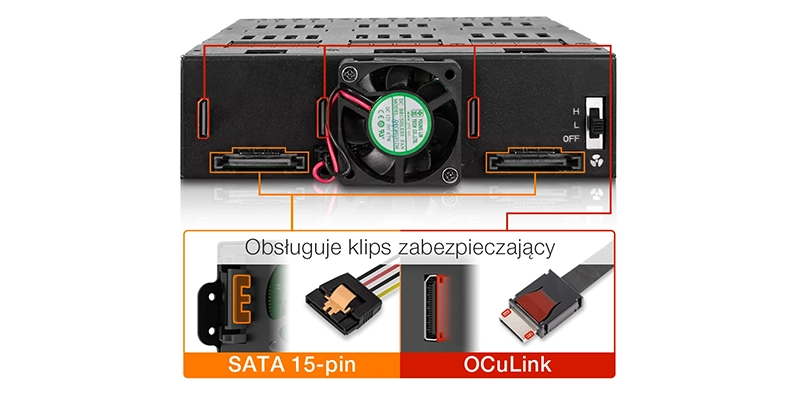

| • | Obsługuje kable SATA 15-pin i OCuLink z zatrzaskiem blokującym dla bezpiecznego połączenia |
| • | 5 letnia gwarancja |
| Model Number： | MB872MP-B |
| Color： | Black |
| Support Drive Size： | 12 x M.2 SATA SSD 2230/2242/2260/2280/22110 |
| Compatible Drive Type： | SATA M.2 |
| Number of Drives： | 12 |
| Drive Bay： | 1 x external 5.25" device bay |
| Host Interface： | 3 x OCuLink (SFF-8612) |
| Power Input： | 2 x 15pin SATA power connector |
| Transfer Rate： | Up to 6Gbps (depending on SSD speed) |
| Support SSD Capacity： | No limitation |
| Drive Cooling (Active)： | 1 x 40mm fan |

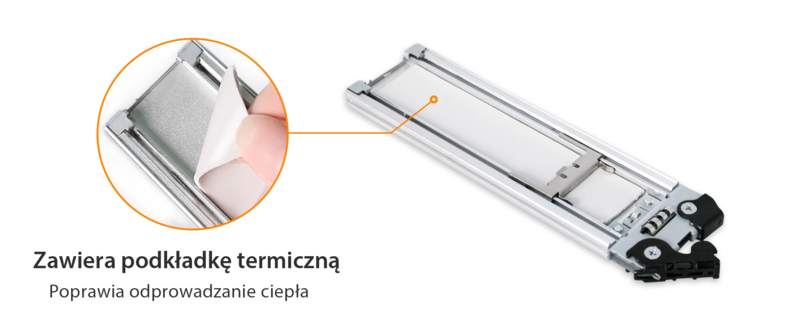

| Drive Cooling (Passive)： | Aluminum heat sink with thermal pad |

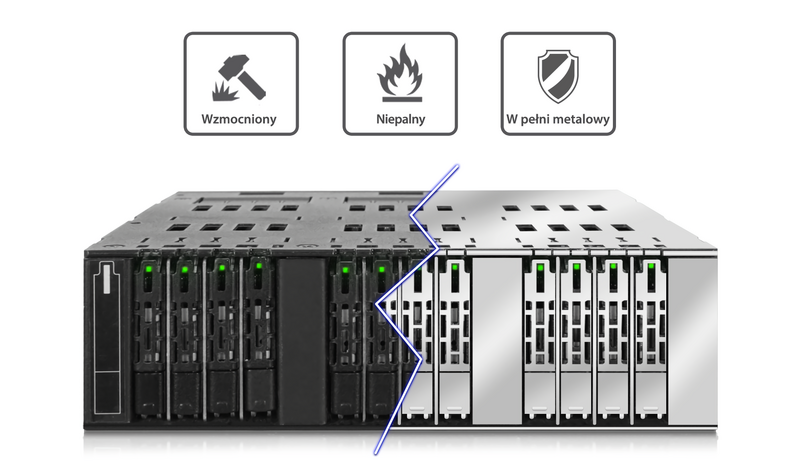

| Structure / Material： | Full metal |
| Dimension (L x W x H) ： | 157.8 x 146 x 41.3mm |
| Product Net Weight： | 1680.8g |
| Package Gross Weight： | 1878.3g |

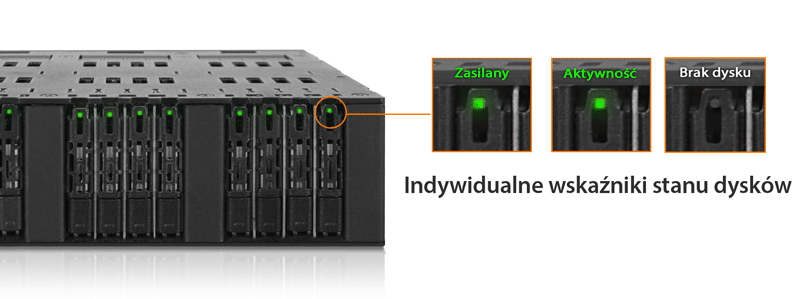

| Drive Activity LED Indication： | Drive power: solid green; Drive access: flashing green |
| Package Contents： | 1 - device, 1 - user manual, 2 - ID plug, 6 - screw |
| M.2 Connector Insertion Rate： | 5,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 5 years limited warranty |
Compatible Drive Tray (Caddy):
Compatible Drive cable:
Related Products Series:
Quick Link:
Q: Can you recommend an add-on card that works with MB872MP-B?
A: The following add-on cards are compatible with MB872MP-B. We highly recommend using the official cable for the best compatibility.
We are currently certifying our NVMe enclosure with the major add-on card manufacturers. We will be adding compatible add-on cards to the list.
You can click here to report a compatible add-on card/cable. If you want to check the compatibility of add-on card(s) that are not on the list, please click here.
Q: Can I replace the cooling fan attached to the device? Will doing that void the warranty?
A: The cooling fan we used has been thoroughly tested with the drive enclosure to ensure it functions properly and supports the fan speed control (for select models). Therefore, we suggest our customers keep the original fan for the best result. However, we understand the stock fan may not be suitable for all the applications, so we elected to honor the warranty when 3rd party fan is using. The warranty may void if the 3rd party fan causes electrical damage to the device, though.
Q: Which specification should I check before buying the 3rd party cooling fan?
A:The following information is the fan specification requirement and compatible fan models for MB872MP-B
| Fan Dimension (LxWxH) | 40 x 40 x 10mm | 40 x 40 x 20mm |
| Connector Type | 3 Pin Wafer | |
| Rated Voltage (VDC) | 12V DC | |
| Rated Current (A) | < 0.12A (127mA) | |
| Screw Specification | Phillips Flat Head - M3 x 15mm - Steel (Came with stock fan) |
Phillips Flat Head - M3 x 25mm – Steel (Not Included) |
Compatible fan models
(without test, use it at your own risk)
Q: I'm having the difficulties closing the lid of the drive tray and unable to insert the drive tray all the way to the drive enclosure after placing the M.2 SSD onto the drive tray.

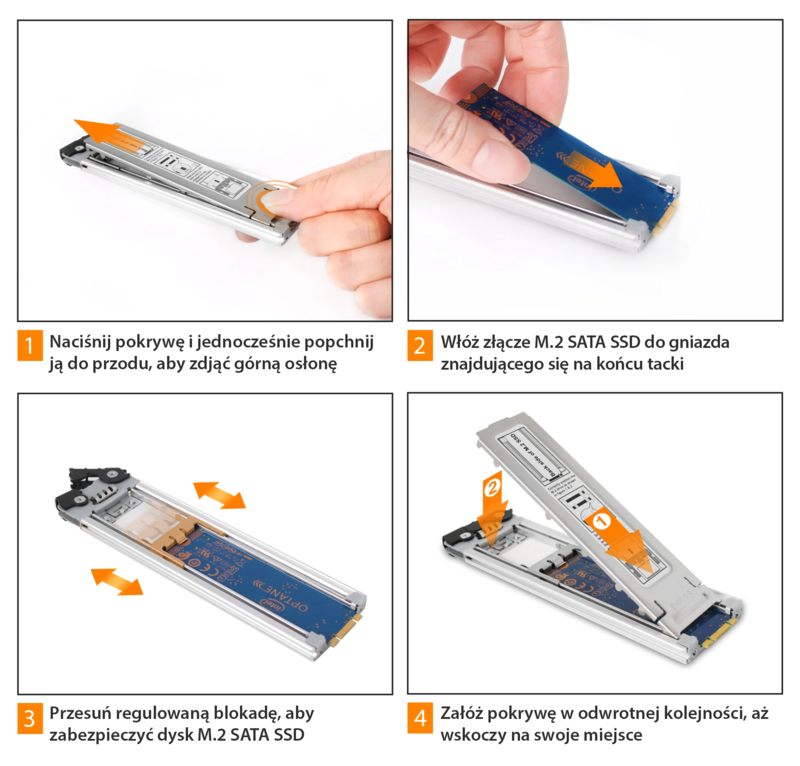

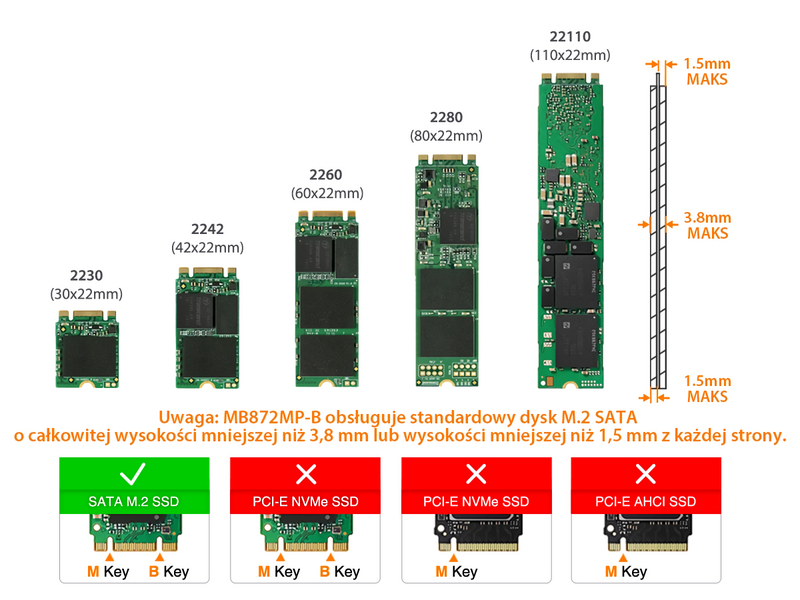

A: Make sure to lock the M.2 SSD with the adjustable M.2 locker. The tray lid will not close properly if the M.2 locker is not fully secured. If you are having difficulty secure the M.2 locker or close the cover, the M.2 SSD you are using may not follow the standard M.2 SSD thickness, which is less than 1.5mm height for each side with a total height that does not exceed 3.8mm. Using the M.2 SSD with non-standard thickness will cause improper tension on the M.2 locker and tray lid and make the M.2 connector misaligned. If you are having issues inserting the drive tray to the enclosure, please stop the operation immediately and check the drive thickness to ensure it follows the standard M.2 SSD thickness - less than 1.5mm height for each side and less than 3.8mm for total height.
Note: Some M.2 SSD uses a metal heat dissipation sticker that causes each side's thickness more than the 1.5mm. Remove the sticker will solve the problem, but do it at your own risk (might void the warranty of SSD)
ICY DOCK enclosure is design to be compatible with M.2 SSD that has standard thickness. We highly recommend checking the drive thickness before purchase, and please refer to the incompatible M.2 SSD list below for further information:
M.2 SATA SSDs known to be incompatible with ICY DOCK enclosure:
Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.
Click here to report a compatible/incompatible M.2 SSD.
