Fits 1x EDSFF E1.S SSD with a maximum drive thickness of 5.9mm
|
| • |
Use 1x PCIe 4.0 x4 interface, also supports installation into PCIe 1.0/2.0/3.0/4.0 x4, x8, and x16 slots
|
| • |

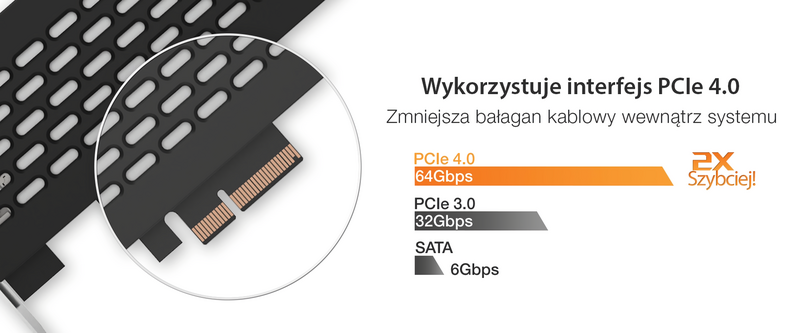

Support PCIe 4.0 x4 with transfer rates up to 64Gbps
|
| • |

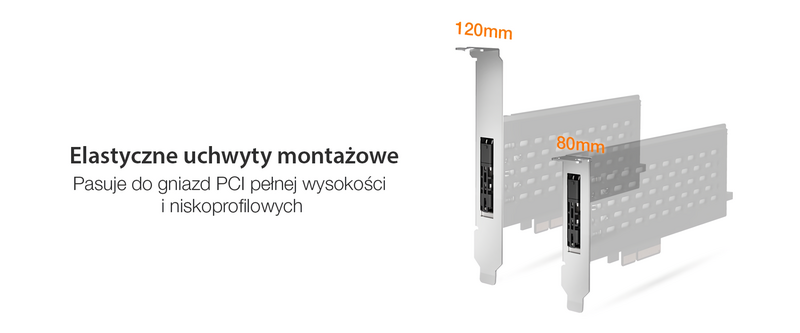

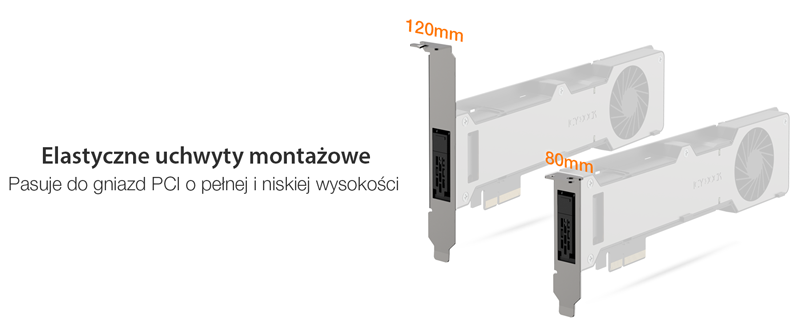

Includes half-height and full-height PCIe brackets
|
| • |

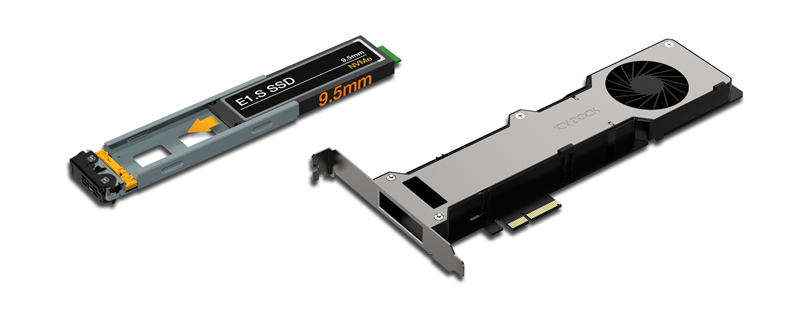

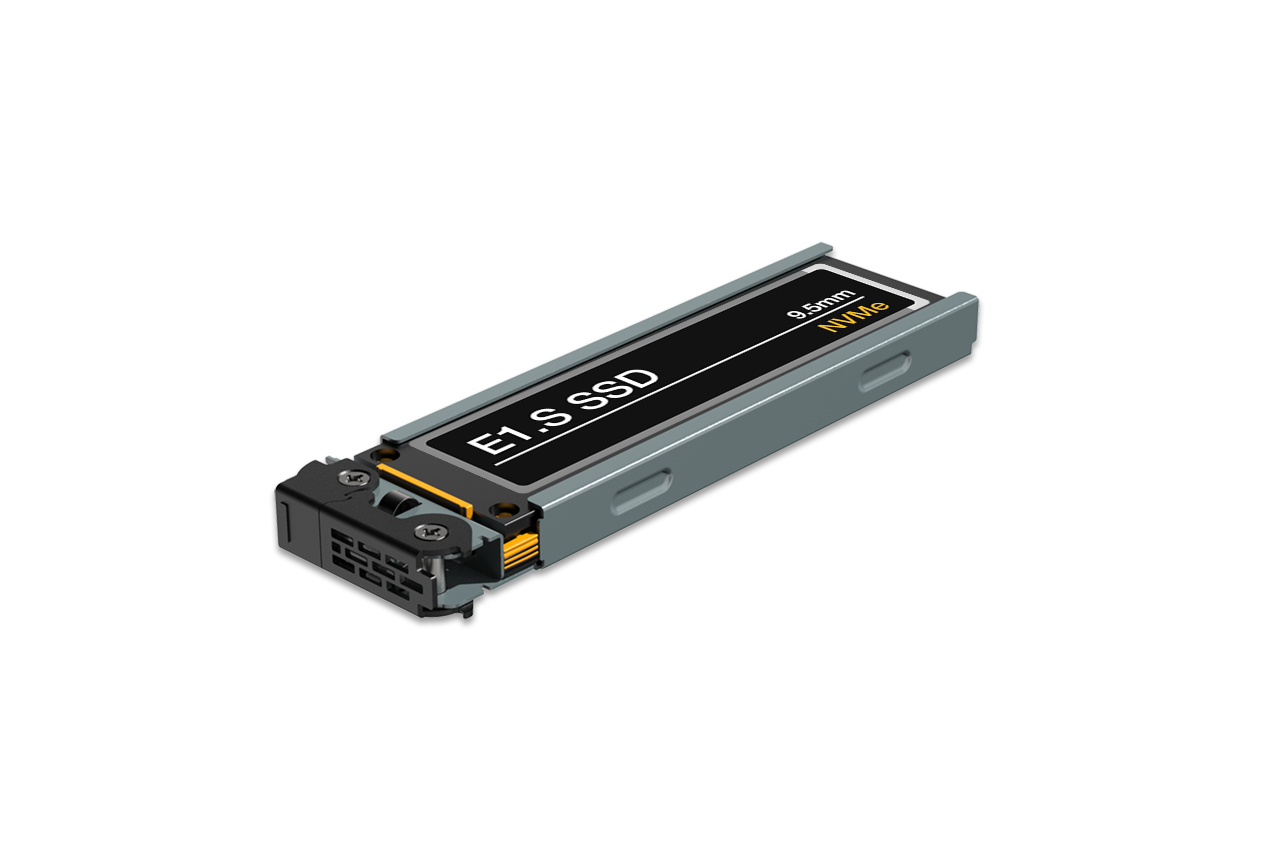

Removable drive tray with tool-less drive installation design for easy drive maintenance
|
| • |
Low profile design allows for multiple bays to be installed side-by-side in a modular design
|
| • |
PCIe interface provides both power and data transfer which ultimately reduce cable clutter
|
| • |

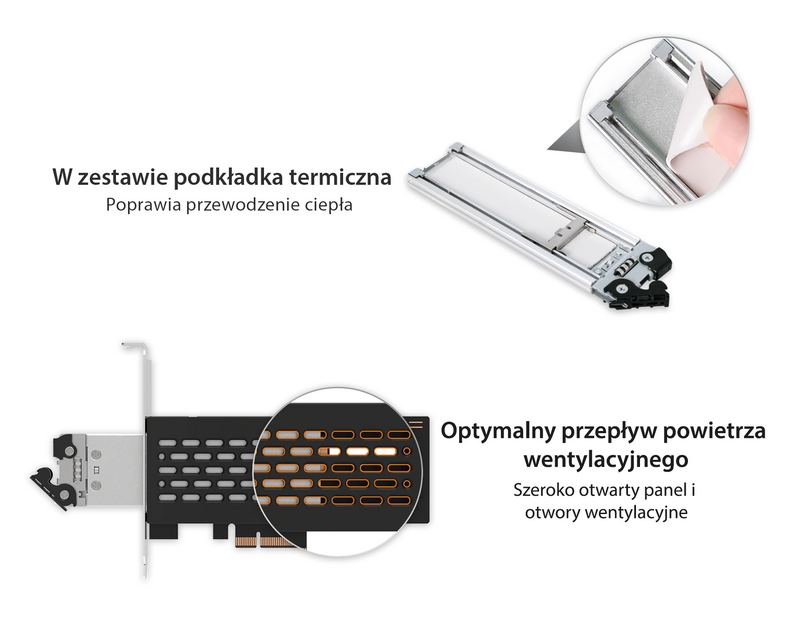

Includes thermal pad to conducts the heat from the drive to the metal tray
|
| • |
Eagle-hook lock system keeps the drive secure in the enclosure
|
| • |
EMI grounding – protects hard drives from electrical damage
|
| Model Number： | CP114 |
| Colors： | Black and silver |
| Host Interface： | 1 x PCIe 4.0 x4 |
| Drive Fit： | 1 x EDSFF E1.S SSD (Compatible with 5.9mm thickness) |
| Device Fit： | 1 x single PCIe slot |
| Maximum Transfer Rate: | PCIe 4.0 x4 up to 64Gbps (7880Mbps) |
| Power Input： | 1 x PCIe power pin |
| Structure： | Metal IO bracket with partial ABS plastic,PCBA and aluminum tray |
| SSD Access Indicator： | Device power: solid green Device activity: flashing green Device empty: LED off |
| Package Content： | Device, user manual, full-length and half-length I/O faceplates, thermal pads |
| Dimension (W x H x D) ： | Less than 160 x 122 x 22mm |
| Weight： | (TBD) |
