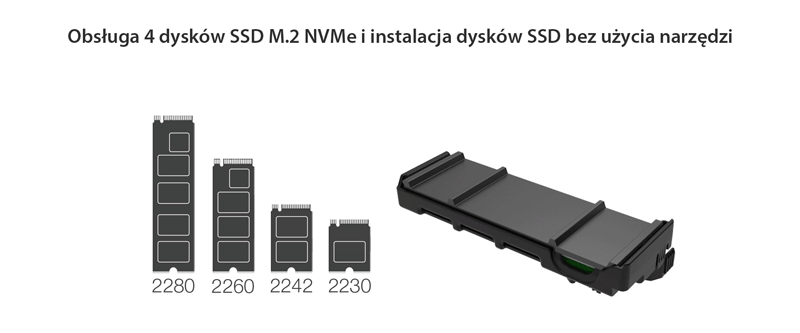

Pasuje do 4 dysków SSD M.2 PCIe NVMe od 30-80 mm (2230, 2242, 2260, 2280)
|
| • |

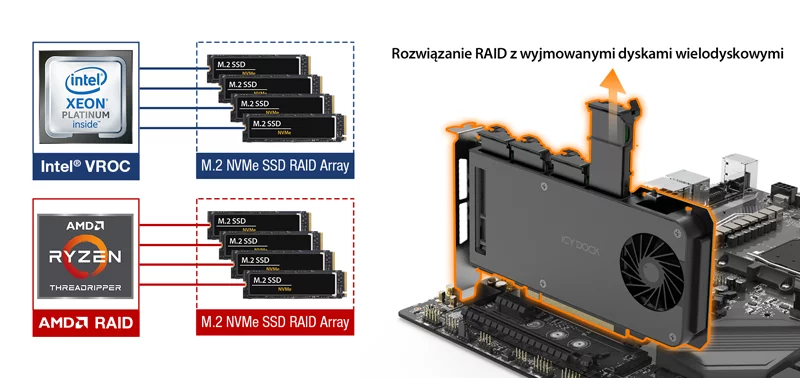

Wykorzystuje 1x slot PCIe 4.0 x16 (PCIe Bifurcation x4, x4, x4, x4 dla PCIe 16x jest wymagane, aby uzyskać dostęp do czterech dysków)
|
| • |
Instaluje się w slocie PCIe Express o pełnej szerokości i wysokości
|
| • |

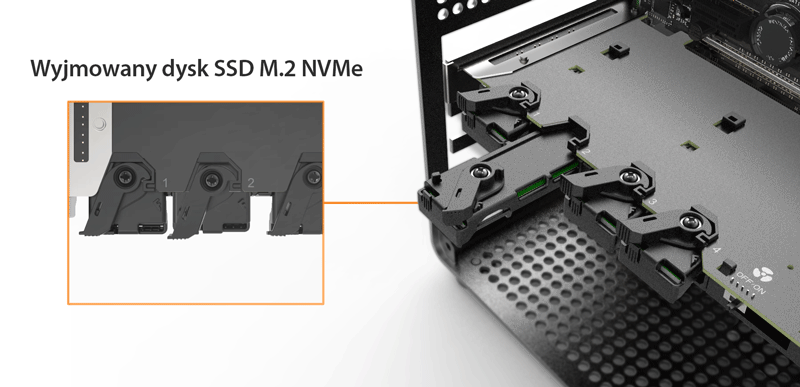

Wyjmowana tacka napędu z beznarzędziową instalacją napędu dla łatwej konserwacji napędu
|
| • |
Konstrukcja pokrętła szybkiego zwalniania umożliwia szybki i łatwy demontaż i montaż dysku SSD
|
| • |

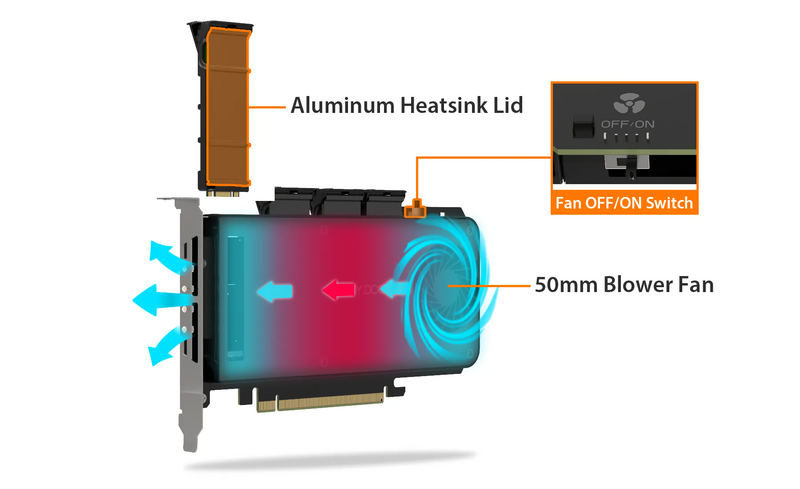

Przełącznik włączania/wyłączania wentylatora zapewnia elastyczność dla systemów z wystarczającym chłodzeniem lub środowisk wrażliwych na hałas
|
| • |
Active-Power Technology (APT) – oszczędza energię, wyłączając urządzenie, gdy nie jest zainstalowany żaden napęd
|
| • |

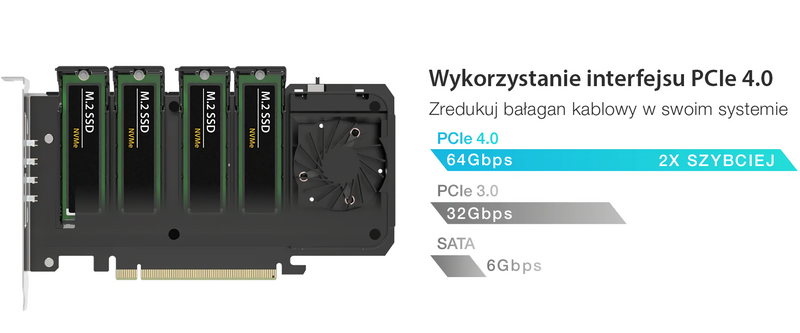

Interfejs PCIe zapewnia zasilanie i transfer danych, aby zmniejszyć plątaninę kabli
|
| • |
Dołączona podkładka termiczna odprowadza ciepło z dysku SSD do aluminiowej pokrywy radiatora
|
| • |
Wiodąca w branży 3-letnia ograniczona gwarancja na wszelkie wady
|
| • |
Bezpłatne wsparcie ze strony profesjonalnie przeszkolonego przedstawiciela pomocy technicznej
|
| Model Number : | MB204MP-1B |
| Color : | Black |
| Support Drive Size : | M / B + M key M.2 PCIe NVMe SSD 2230/2242/2260/2280 |
| Compatible Drive Type : | M.2 PCIe 3.0/4.0/5.0 NVMe SSD |
| Number of Drives : | 4 |
| Drive Bay : | 1 x PCIe 4.0 or 3.0 x16 expansion slot (motherboard required PCIe x16 slots bifurcated into x4/x4/x4/x4) |
| Host Interface : | PCIe 4.0 x16 |
| Power Input : | 1 x PCIe golden finger |
| Transfer Rate : | PCIe 4.0 x4 up to 64Gbps per SSD |
| Support SSD Capacity : | No limitation |
| Drive Cooling : | 1 x 50mm blower fan |
| Material : | Metal IO bracket/cover with PCBA and plastic shield |
| Product Dimension (W x H x D) : | 126.9 x 21.59 x 204.5 mm |
| Product Net Weight : | 229g |
| Package Gross Weight : | 370g |

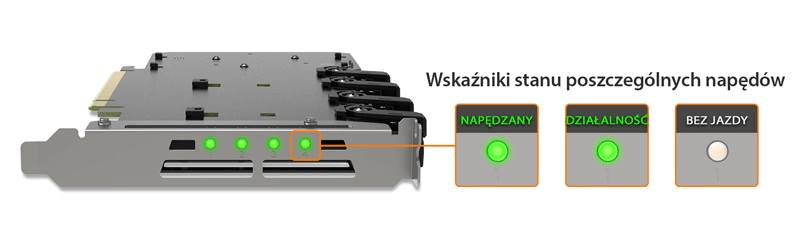

| Drive Activity LED Indication : | Device power: solid green Device activity: flashing green Empty: LED off |
| Package Contents : | Device, user manual, thermal pads, M.2 SSD mounting clips, screws |
| Connector Insertion Rate : | 5,000 |
| Humidity : | 5%~65% RH |
| Operating Temperature : | 0°C to 60°C |
| Storage Temperature : | -35°C to 70°C |
| Compliance : | CE, RoHS, REACH |
| Warranty : | 3 years |
