| • | Obsługuje 1x 2,5" SATA HDD/SSD lub SATA M.2 SSD |
| • | Nie obsługuje jednoczesnego korzystania z dysków 2,5" i M.2 |
| • | Obsługa prędkości transferu do 5 Gb/s przez USB 3.2 Gen 1 |
| • | Wsteczna kompatybilność z interfejsem USB 2.0 |
| • | Niebieski wskaźnik LED aktywności dysku |
| • | Duży włącznik/wyłącznik zasilania napędu |
| • | Antypoślizgowa gumowa podkładka pod stopę zapewnia, że adapter nie ślizga się po powierzchni |
| • | Dołączony kabel USB typu C do A |
| • | Wiodąca w branży 3-letnia gwarancja z bezpłatnym wsparciem technicznym i obsługą klienta |
| Model Number： | MB031U-1SMB |
| Color： | Black |

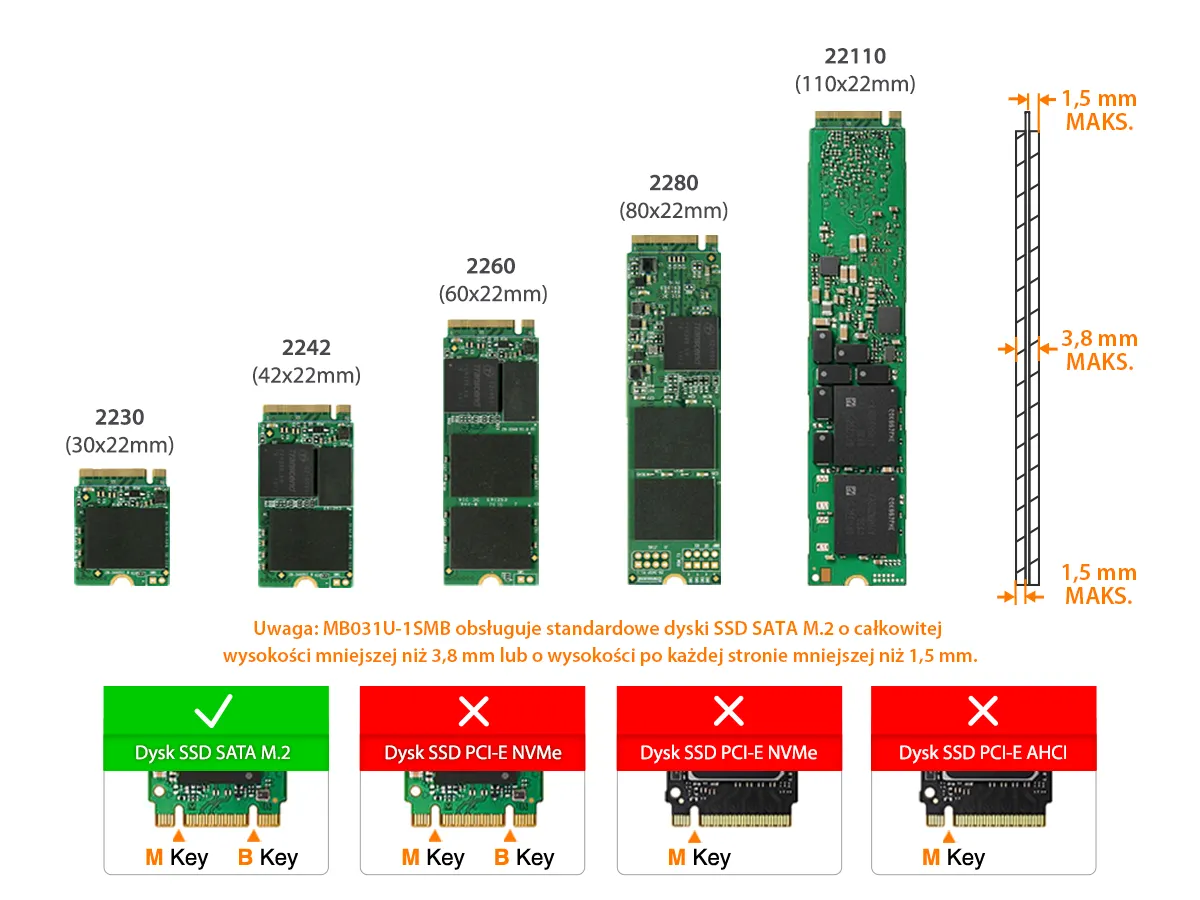

| Support Drive Size： | 1 x 2.5" SATA SSD/HDD (up to 15mm height) / 1 x M.2 SATA SSD (2230/2242/2260/2280/22110) |
| Host Interface： | USB 3.2 Gen 1 |
| Power Input： | Via USB |
| Transfer Rate： | Up to 5Gb/s (depending on hard drive speed) |
| Controller IC： | JMicron – JMS576 |
| Structure / Material： | ABS plastic |
| Dimension (W x H x L)： | 92 x 61 x 18.5mm |
| Product Net Weight： | 50.2g |
| Package Gross Weight： | 101.2g |

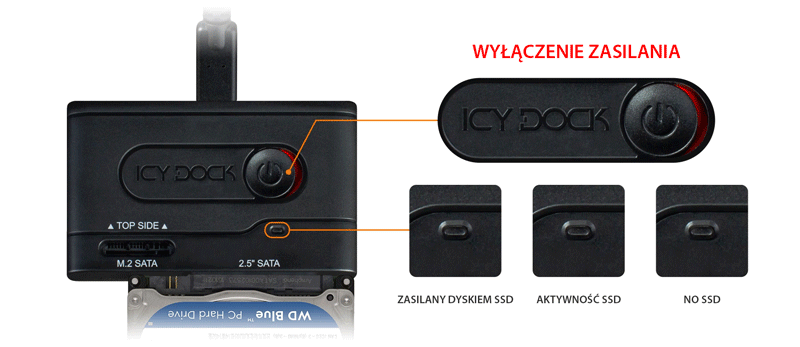

| Drive Activity LED Indication： | SSD power: solid blue; SSD access: flashing blue |
| Plug & Play ： | Yes |
| Package Contents： | Device, user manual, USB 3.2 Gen 1 type C to A cable |
| M.2 Connector Insertion Rate： | 5,000 |
| SATA Connector Insertion Rate： | 10,000 |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Related Products:
Related Products Series:
Q: I installed the hard drive/SSD and the device is connected to my computer, but the drive is not detected.
A: There are some scenarios you can do to rule out potential problems.
Scenario 1 – Drive status LED is not lighting up
Scenario 2 - The drive status LED lights up, but the hard drive/SSD is still not detectable
Scenario 3 - The hard drive/SSD and the connected USB port do work normally, but the drive does not show up on my computer after connecting to my computer
Scenario 4 - It has been verified to rule out all possible hardware problems, but the system still cannot detect the hard drive/SSD
Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.
By OCinside.de
If you want to access a SATA, M.2 SATA or M.2 NVMe SSD on your PC, notebook or even your tablet or smartphone, you can do this easily with a proper EZ-Adapter. Today, we are testing the Icy Dock MB104U-1SMB USB 3.2 Gen 2 docking station for NVMe and SATA as well as the SATA docking station MB031U-1SMB on OCinside.de!
