Wsparcie dla jednego dysku U.2 PCIe NVMe SSD
|
|
•
|
Wytrzymałość złącza przekraczająca 10 000 cykli
|
|
•
|
Prędkość przesyłu danych do 10 Gb/s za pomocą złącza USB 3.2 Gen 2
|
|
•
|
Instalacja dysku bez użycia narzędzi oraz dodatkowych tacek
|
|
•
|

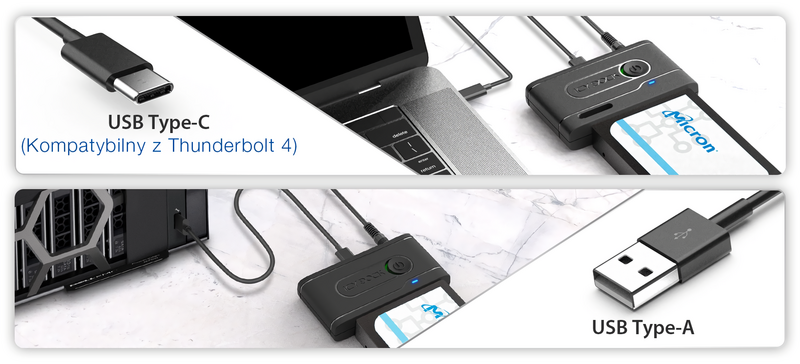

Kompatybilność ze złączami USB 2.0 oraz Thunderbolt
|
|
•
|
Niebieski wskaźnik stanu w formie diody LED
|
| • | Duży przesuwny przełącznik zasilania |
|
•
|
Zasilacz DC 12V w zestawie
|
|
•
|
Antypoślizgowe wypustki zabezpieczające produkt przed upadkiem
|
|
•
|
Kable USB C-C oraz C-A dla pełnej kompatybilności
|
|
•
|
3-letnia gwarancja producenta
|

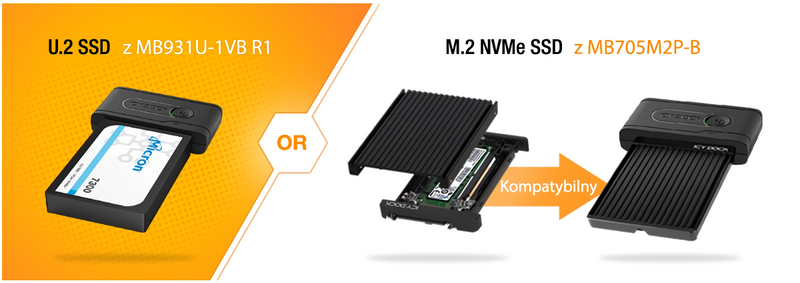

| • | Kompatybilność z dyskami M.2 NVMe PCIe SSD pod warunkiem zastosowania konwertera EZConvert MB705M2P-B |
| Model Number： | MB931U-1VB R1 |
| Color： | Black |
| Support Drive Size： | 1 x 2.5" U.2 NVMe SSD (up to 15mm height) |
| Host Interface： | USB-C 3.2 Gen 2 (Thunderbolt 4 compatible) |
| Power Input： | DC 12V/2A Power Adapter |
| Transfer Rate： | Up to 10Gb/s (depending on hard drive speed) |
| Controller IC： | ASMedia - ASM2362 |
| Structure / Material： | ABS plastic |
| Dimension (W x H x L)： | 91.94 x 18.65 x 53.79mm |
| Product Net Weight： | 46.3g |
| Package Gross Weight： | 318.9g |

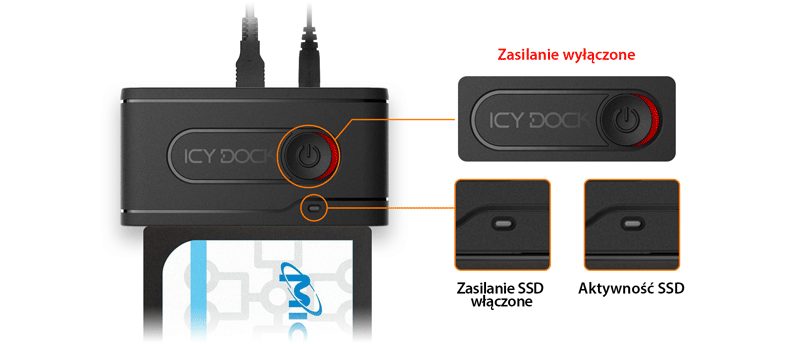

| Drive Activity LED Indication： | SSD power: solid blue; SSD access: flashing blue |
| Plug & Play： | Yes |
| Package Contents： | Device, user manual, DC power adapter, USB 3.2 Gen 2 type C to A cable & type C to C cable |
| Humidity： | 5%~65% RH |
| Operating Temperature： | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature： | -35°C to 70°C (-31°F to 158°F) |
| Compliance： | CE, RoHS, REACH |
| Warranty： | 3 years |
Related Products:
Related Products Series:
Q: I installed the and the device is connected to my computer, but the drive is not detected.
A: There are some scenarios you can do to rule out potential problems.
Scenario 1 – Drive status LED is not lighting up
Scenario 2 - The drive status LED lights up, but the SSD is still not detectable
Scenario 3 - The SSD and the connected USB port do work normally, but the drive does not show up on my computer after connecting to my computer
Please contact tech@icydock.com if the problem persists so we can resolve the issue as soon as possible.
Q: Is there any known compatibility issue between EZ-Adapter Ex MB931U-1VB R1 and U.2 NVMe SSDs?
A: The EZ-Adapter Ex MB931U-1VB R1 uses an ASMeida ASM2362 chipset and is designed to be compatible with most of the U.2 NVMe SSD available on the market. See below for the latest known issues reported by the users and a list of compatible SSDs.
Note: the SSD issues listed below have only been reported by a few customers. It is still too early to say they are not compatible as the issues may be caused by SSD firmware and host configurations. We are verifying the compatibility with ASMedia and will constantly update the compatibility list. Meanwhile, we suggest using SSDs that are known to be worked with EZ-Adapter Ex MB931U-1VB R1.
Click here report a compatible/incompatible U.2/U.3 NVMe SSD. Your help is greatly appreciated!
U.2 NVMe SSDs known to have an issue with MB931U-1VB R1
U.2 NVMe SSDs verified to work with MB931U-1VB R1
ASMedia has released firmware to fix issues of detecting 2TB or above U.2 SSDs. If you encounter any problems while installing the drive, please contact tech@icydock.com for further assistance.
U.3 NVMe SSDs known to have an issue with MB931U-1VB R1
U.3 NVMe SSDs verified to work with MB931U-1VB R1
