•Durable construction using heavy-duty metal, ideal for demanding environments in medical, industrial, and military applications
•Meets stringent flammability standards, ensuring safety across various sectors
•Accommodates two U.2/U.3 PCIe 5.0 SSDs, up to 15mm in height, and one slim optical disk drive (12.7mm)
•Supports fast PCIe 5.0, enabling speeds up to 128Gbps for quick data transfer
•Features a removable caddy system for U.2/U.3 and slim optical disk drives, simplifying maintenance

metal_tray_enclosures,nvme_enclosures,tool-less_tray_enclosures,tool-less_tray_enclosures

•Accommodates 8x U.2/U.3 PCIe NVMe SSDs, supporting a maximum drive height of 7mm.
•Fits any standard external 5.25" optical drive bay.
•Utilizes 4x MCIO 8i (SFF-TA-1016 8i) connectors for 8x U.2/U.3 SSDs.
•Delivers PCIe 5.0 speeds with transfer rates up to 128Gb/s per drive bay.
•Compatible with Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more).
•Rugged full-metal enclosure meeting flammability standards.
•Removable tray system for simplified maintenance.

•Fits 1x 5.25" optical drive bay of a computer case or rackmount
•Accommodates 4x 2.5" U.2/U.3 NVMe SSDs, up to 15mm in height
•Utilizes 2x MCIO 8i connectors, supports PCIe 5.0 x4 with up to 128Gbps transfer speeds
•Removable drive caddy with retractable handle for easy installation/removal of 4 drives at once
•Equipped with dual 40x40x20mm fans; fans can be replaced without disassembling the unit
•Supports hot-plug functionality for U.2/U.3 NVMe SSDs (host environment must support hot-plug)

•World’s first Universal Backplane Management (UBM) drive mobile rack enclosure
•Supports 4x 2.5” SAS/SATA/U.3 NVMe SSD/HDD (Tri-mode adapter is required to access SAS, SATA, and U.3 NVMe through the same drive bay)
•Supports SAS 4.0 (up to 22.5Gbps), SATA 3.0 (up to 6Gbps), and NVMe Gen 4 (up to 64Gbps)
•Installs into any standard external 5.25” optical drive bay
•Uses 2x SlimSAS 8i (SFF-8654) rear connectors
•Ruggedized full-metal enclosure meeting flammability requirements

•World’s first Universal Backplane Management (UBM) drive mobile rack enclosure
•Supports 4x 2.5” SAS/SATA/NVMe (U.2/U.3) SSD/HDD
•Supports SAS 4.0 (up to 22.5Gbps), SATA 3.0 (up to 6Gbps), and NVMe Gen 4 (up to 64Gbps)
•Installs into any standard external 5.25” optical drive bay
•Uses 2x SlimSAS 8i (SFF-8654) rear connectors
•Ruggedized full-metal enclosure meeting flammability requirements

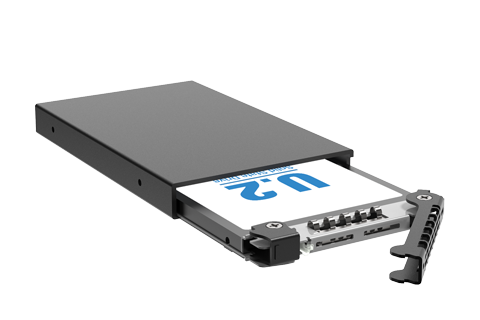

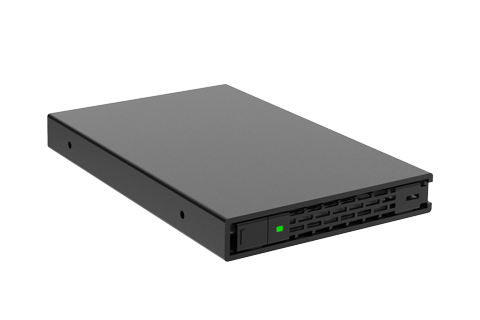

•Supports 1 x U.2 NVMe SSD up to 9.5mm height
•Use 1 x PCIe 4.0 x4 interface and supports installation into PCIe 1.0/2.0/3.0/4.0 x4, x8, and x16 slots
•Support PCIe 4.0 x4 with transfer rates up to 64Gbps

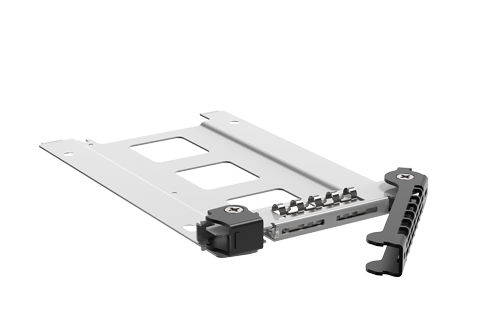

•Removable drive tray with tool-less drive installation design for easy drive maintenance
•Eagle-hook lock system keeps the drive secure in the enclosure
•EMI grounding - protects hard drives from electrical damage

•Fits 8 x 2.5" U.2 NVMe SSDs into 2 x 5.25" external drive bay
•Removable drive tray for easy drive installation and removals
•Uses 4 x MCIO ports to connect (NVMe host required)
•MCIO connector pinout supports SFF-TA-1016 specification
•Supports the full PCIe 5.0 x4 bandwidth specifications of 128Gbps per drive bay
•Ruggedized full metal housing and tray that meets flammability requirement

•Installs into any standard 5.25" drive bay
•Fits 6x 2.5” U.2/U.3 NVMe PCIe SSD (up to 9.5mm drive height)
•Removable drive tray supports U.2 hot plug function, offer easy drive maintenance
•3 x SlimSAS 8i (SFF-8654), compatible with SFF-9402
•Supports the full PCIe 4.0 x4 bandwidth specification of 64Gb/s(per drive bay)
•Ruggedized full-metal enclosure, meeting flammability requirements

•Supports 6 x 2.5" 15mm height U.2 NVMe drive
•Single pull multi-drive ejection mechanism using a single VPX connector
•6 x SFF-8643 rear connectors
•Full-metal Chassis and Trays
•Ample ventilation holes in the front and rear for maximum passive cooling
•Standardized screw holes / thread on both sides of the device for easy external 5.25” bay installation
