• | Supports 6x U.2/U.3 PCIe NVMe SSD, with a max drive height of 9.5mm |

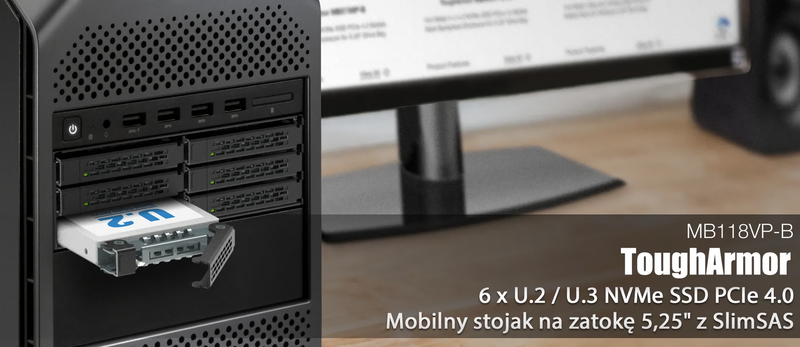

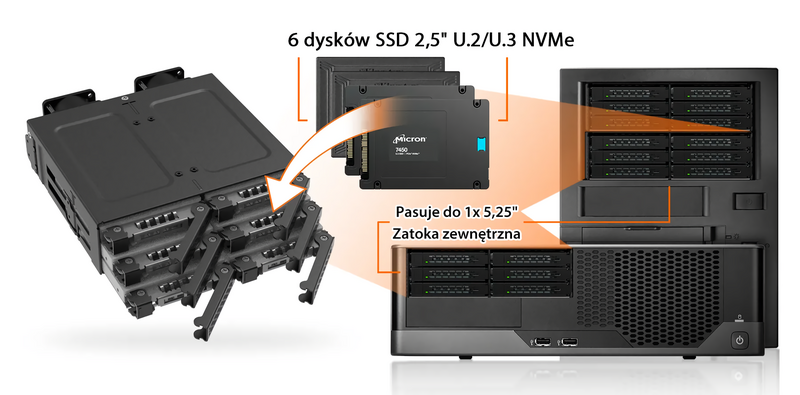

• | Designed to fit into any standard external 5.25" optical drive bay |
• | Utilizes 3x slimSAS 8i (SFF-8654) to support 6x U.2/U.3 SSDs |

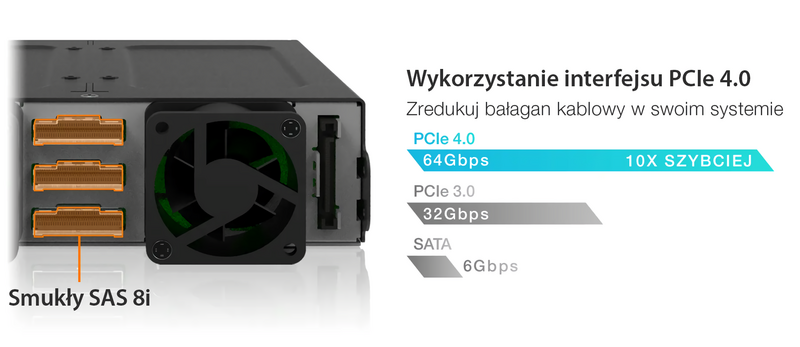

• | Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay |

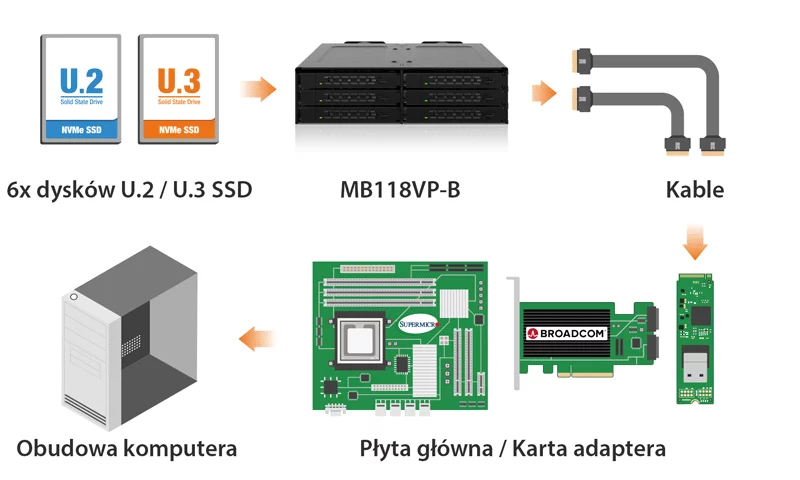

• | Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more) |

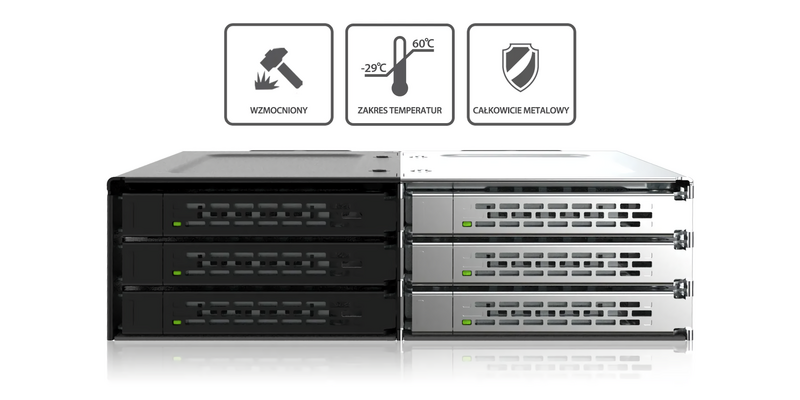

• | Ruggedized full-metal enclosure that meets flammability requirements |

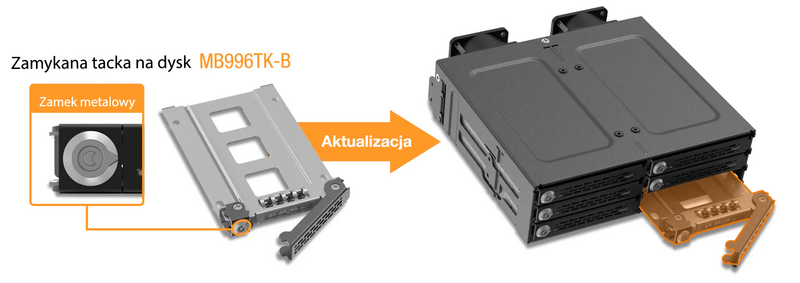

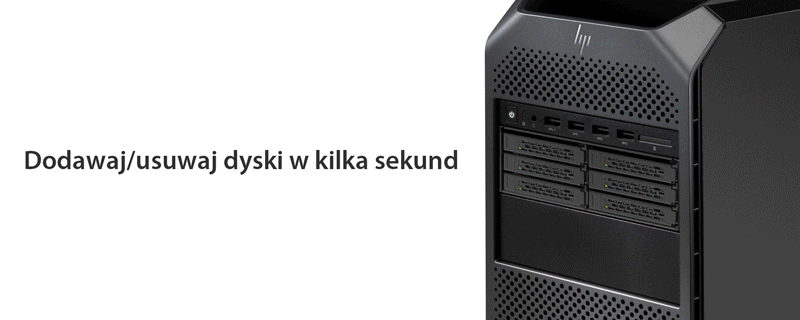

• | Removable tray system for easy maintenance |

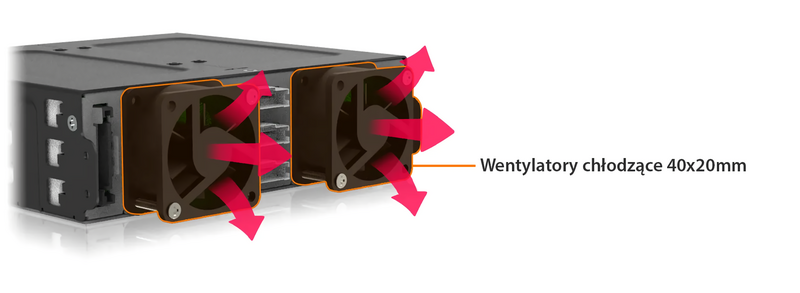

• | Dual high-performance 40x20mm cooling fans |
• | The Eagle-hook tray latch securely holds the drive tray inside the enclosure |

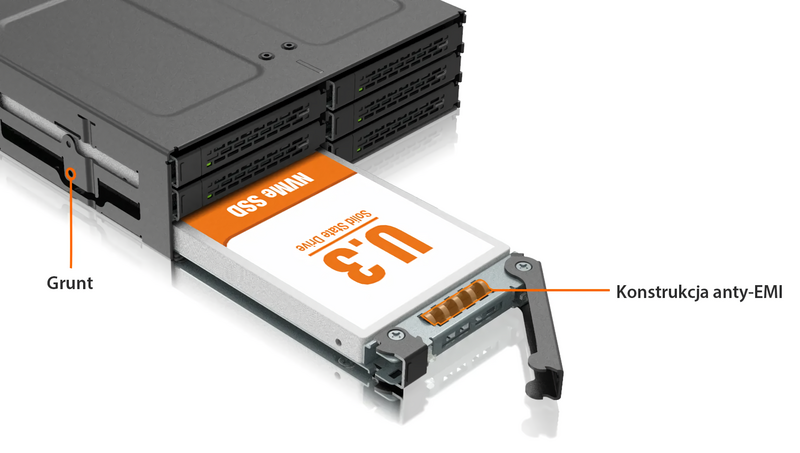

• | EMI Grounding – protects SSDs from electrical damage |
• | Backed by an Industry-leading 5-year limited warranty against all defects |
• | Complimentary support from professionally trained technical support agents |
Model Number: | MB118VP-B |
Color: | Black |
Support Drive Size: | 2.5" (up to 9.5mm height) |
Compatible Drive Type: | U.2 / U.3 |
Number of Drives: | 6 |
Max Drive Height: | 9.5mm |
Drive Bay: | 5.25" bay |
Host Interface: | 3 x SlimSAS SFF-8654 8i |

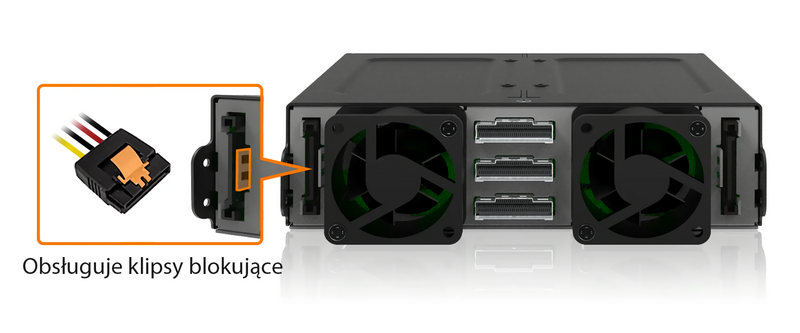

Power Input: | 2 x 15pin SATA power connector |
Transfer Rate: | Up to 64Gbps (depending on SSD speed) |
Support SSD Capacity: | No limitation |
Drive Cooling : | 2 x 40x40x20mm fan |
Structure / Material: | Full metal |
Hot Plug: | Yes |
Product Dimension (W x H x D): | 146 x 41.3 x 150mm |
Product Net Weight: | 867.7g |
Package Gross Weight: | 967g |

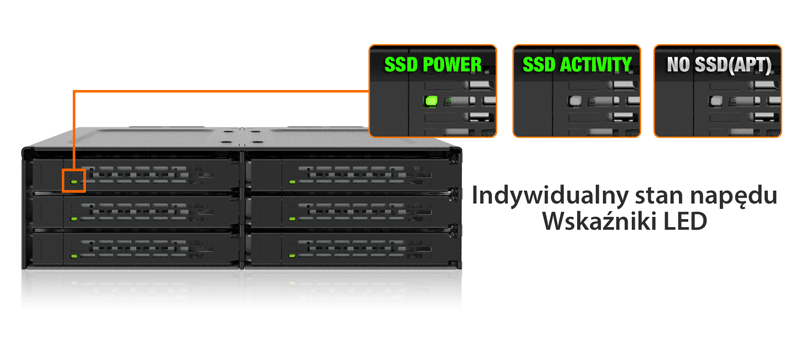

Drive Activity LED Indication: | Power : solid green ; Drive access : flashing green |
Package contents: | Device, user manual, drive id plugs, screws |
SFF-8639 Connector Insertion Rate: | 10,000 |
Humidity: | 5%~65% RH |
Operating Temperature: | 0°C to 60°C (32°F to 140°F) |
Storage Temperature: | -35°C to 70°C (-31°F to 158°F) |
Compliance: | CE, RoHS, REACH |
Warranty: | 5 years limited warranty |
